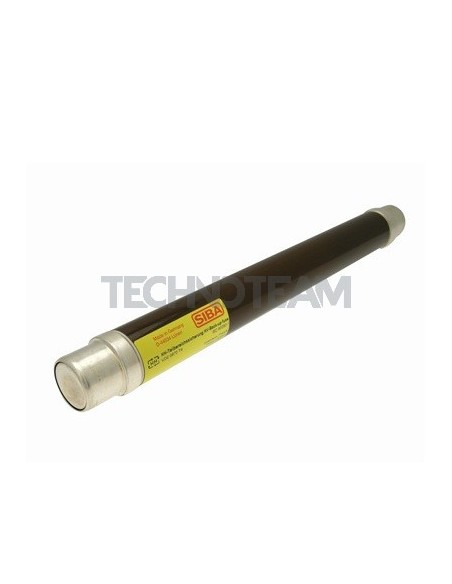

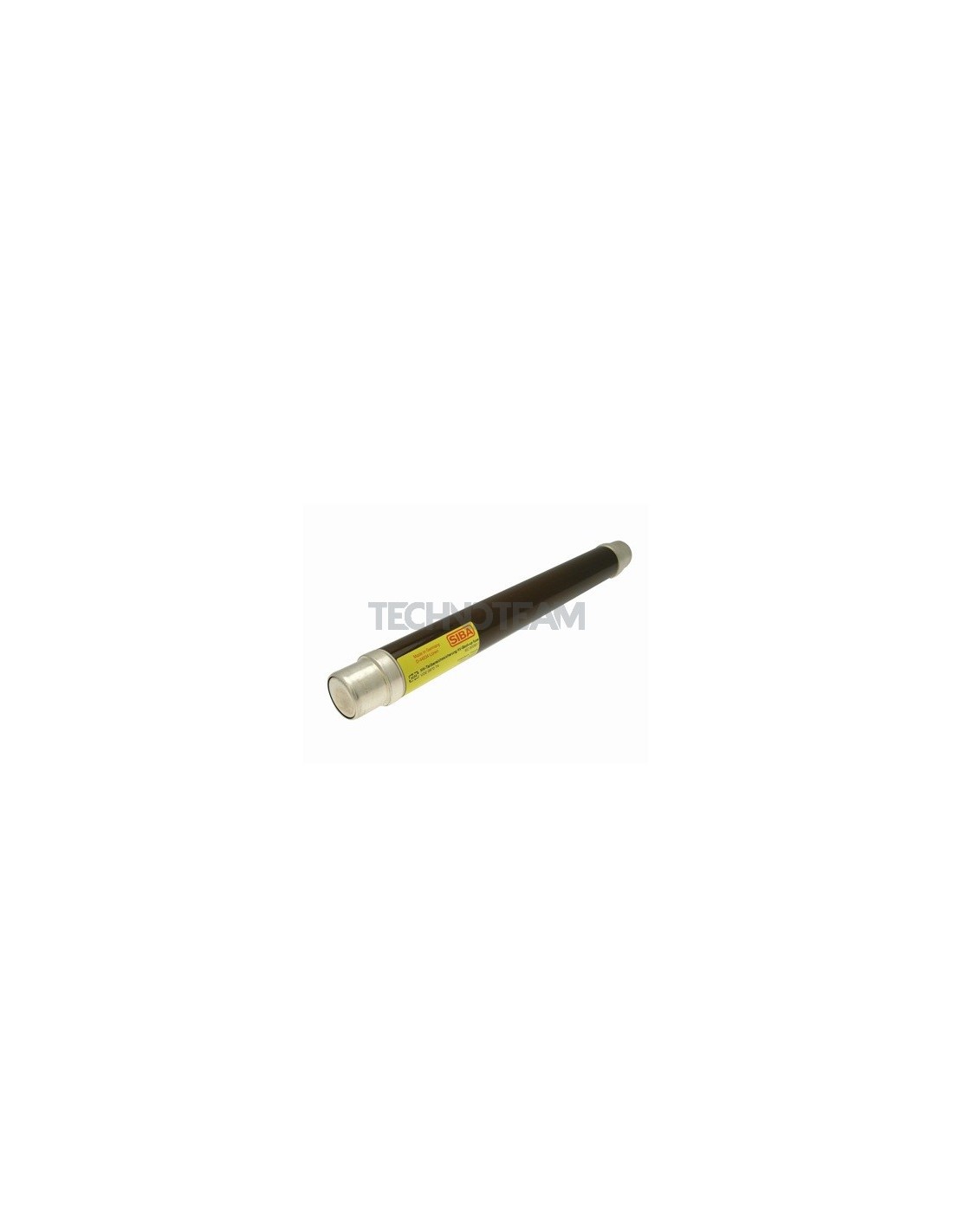

Fuse 12kV 53x442 back-up 1A
Fuse 12kV 53x442 back-up 1A

Fuse 12kV 53x442 back-up 1A

Reference: 3010111.1.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
HH Back up
Rated current In (A)
1
Rated Voltage Un AC (V)
6000
Applicable standards
IEC
Power loss (W)
4,8
Resistance (ohm)
3,51
Fuse Dimension (mm)
53x442
Melting I²t value (A²s)
0,63
Minimum breaking current (A)
8
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
5220
Total clearing I²t @Un AC (A²s)
2,8
Rated breaking capacity I1 AC (kA)
63000
