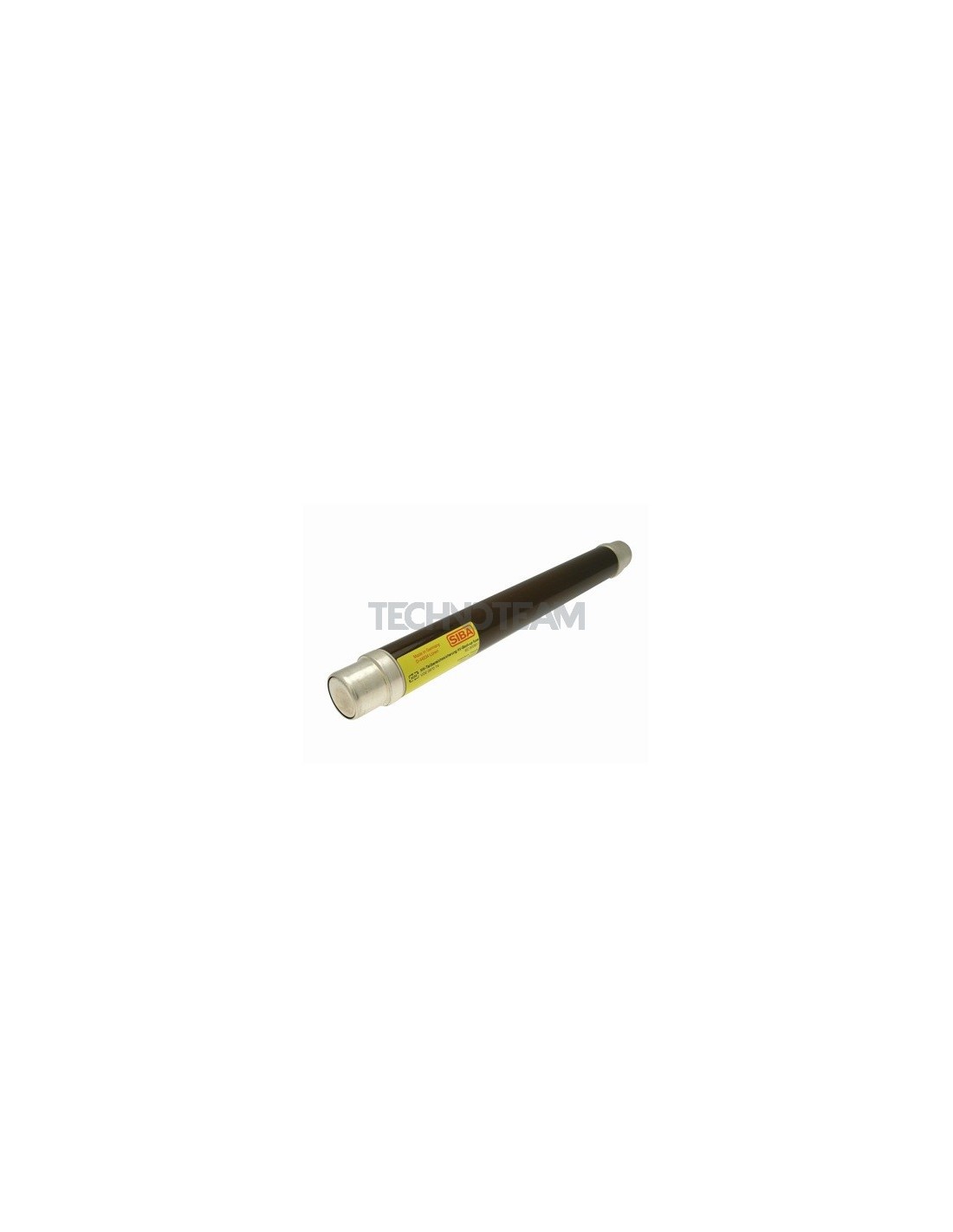

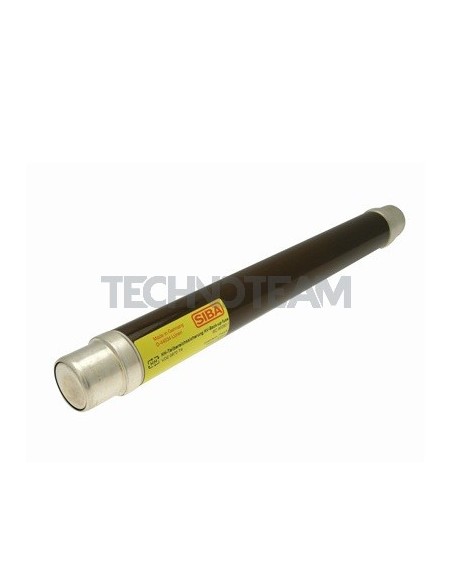

Fuse 12kV 53x442 back-up 0,5A
Fuse 12kV 53x442 back-up 0,5A

Fuse 12kV 53x442 back-up 0,5A

Reference: 3010111.0,5.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
HH Back up
Rated current In (A)
0,5
Rated Voltage Un AC (V)
6000
Applicable standards
IEC
Power loss (W)
6,1
Resistance (ohm)
22,13
Fuse Dimension (mm)
53x442
Melting I²t value (A²s)
1,6
Minimum breaking current (A)
5
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
5220
Total clearing I²t @Un AC (A²s)
5,9
Rated breaking capacity I1 AC (kA)
63000
