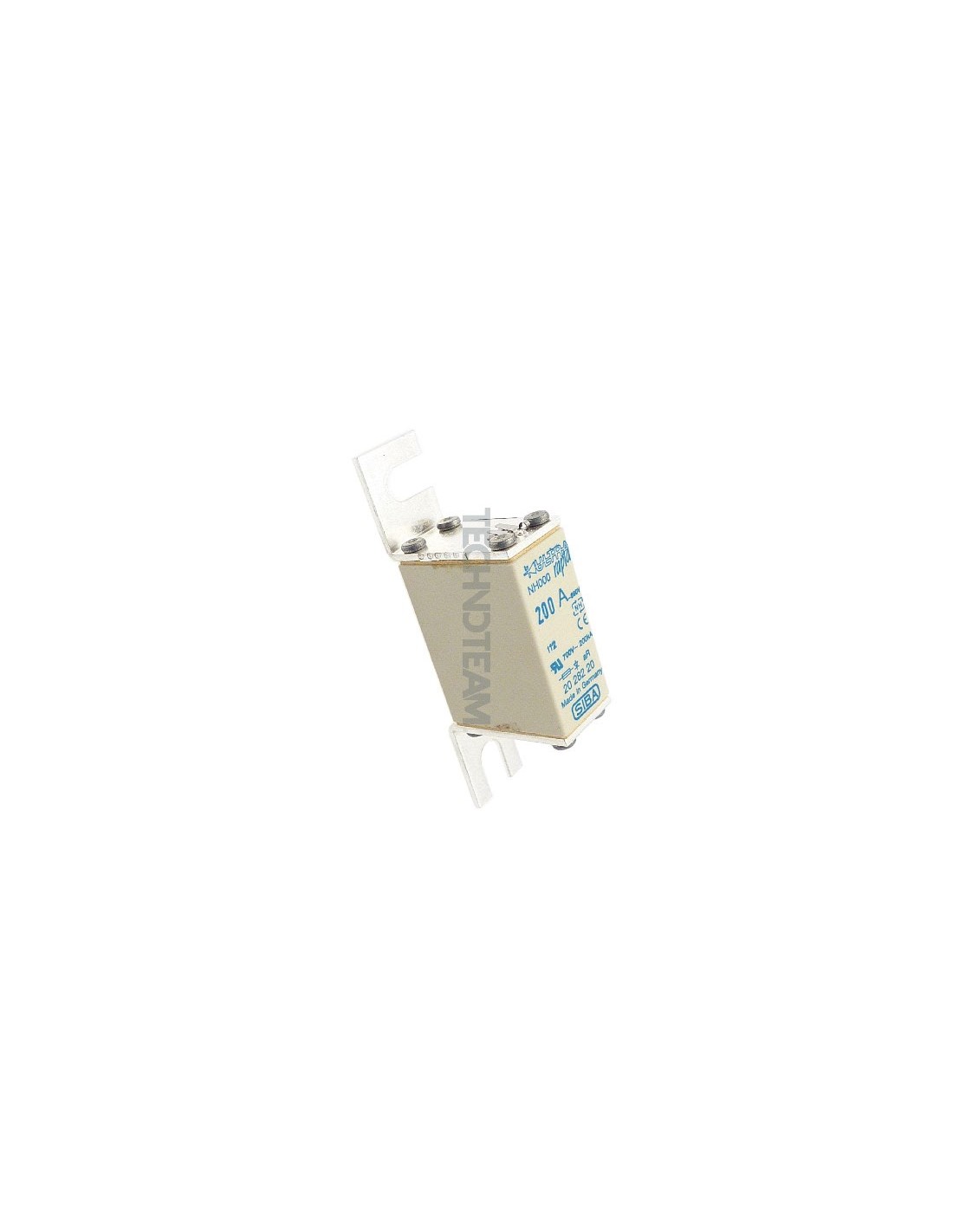

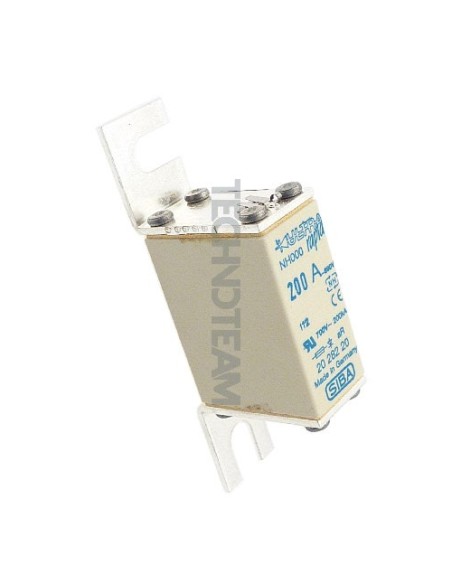

Fuse DIN000 80mm aR 690V UL with indicator, w/o lug 110A
Fuse DIN000 80mm aR 690V UL with indicator, w/o lug 110A

Fuse DIN000 80mm aR 690V UL with indicator, w/o lug 110A

Reference: 2028220.110.0  -  Manufacturer: SIBA
€214.39 /pc VAT excl.

This product is only sold in boxes of 6 pcs

Product Details

Class
aR
Rated current In (A)
110
Rated Voltage Un AC (V)
690
Dimension
000
Applicable standards
IEC, UL
Power loss (W)
24
Melting I²t value (A²s)
890
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
80
Voltage of total clearing I2t test
660
Total clearing I²t @Un AC (A²s)
4900
Rated breaking capacity I1 AC (kA)
200000
Weight (gr)
126
