All Products

Fuse 5x20 T 250V glass UL-CSA 0,75A 7000176.0,75

Fuse 5x20 T 250V glass UL-CSA 0,75A 7000176.0,75

Reference 179500.0,75.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,75
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 450
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 5,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.69/pc
Quantity
Fuse 5x20 T 250V glass UL-CSA 0,8A 7000176.0,8

Fuse 5x20 T 250V glass UL-CSA 0,8A 7000176.0,8

Reference 179500.0,8.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,8
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 400
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 6.4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.41/pc
Quantity
Fuse 5x20 T 250V glass UL-CSA 1,25A 7000176.1,25

Fuse 5x20 T 250V glass UL-CSA 1,25A 7000176.1,25

Reference 179500.1,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 1,25
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 300
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 19
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 1,5A 7000176.1,5

Fuse 5x20 T 250V glass UL-CSA 1,5A 7000176.1,5

Reference 179500.1,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 1,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,5
Voltage drop (mV) 280
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 25
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.69/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 1,6A 7000176.1,6

Fuse 5x20 T 250V glass UL-CSA 1,6A 7000176.1,6

Reference 179500.1,6.0 - Manufacturer SIBA
Class T
Rated current In (A) 1,6
Rated Voltage Un AC (V) 250
Power loss (W) 0,5
Voltage drop (mV) 270
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet

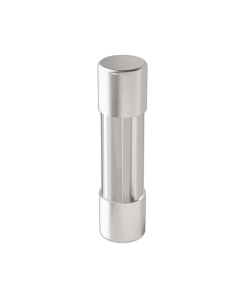

Fuse 5x20 T 250V glass UL-CSA 1A 7000176.1

Fuse 5x20 T 250V glass UL-CSA 1A 7000176.1

Reference 179500.1.0 - Manufacturer SIBA
Class T
Rated current In (A) 1
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 350
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 12
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 2,5A 7000176.2,5

Fuse 5x20 T 250V glass UL-CSA 2,5A 7000176.2,5

Reference 179500.2,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 2,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,6
Voltage drop (mV) 215
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 90
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 2A 7000176.2

Fuse 5x20 T 250V glass UL-CSA 2A 7000176.2

Reference 179500.2.0 - Manufacturer SIBA
Class T
Rated current In (A) 2
Rated Voltage Un AC (V) 250
Power loss (W) 0,5
Voltage drop (mV) 235
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 55
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 3A 7000176.3

Fuse 5x20 T 250V glass UL-CSA 3A 7000176.3

Reference 179500.3.0 - Manufacturer SIBA
Class T
Rated current In (A) 3
Rated Voltage Un AC (V) 250
Power loss (W) 0,6
Voltage drop (mV) 200
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 160
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €0.69/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass 0,5A 7000102.0,5

Fuse 5x20 M 250V glass 0,5A 7000102.0,5

Reference 172000.0,5.0 - Manufacturer SIBA
Class M
Rated current In (A) 0,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,2
Voltage drop (mV) 120
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,9
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.53/pc
Quantity
lock Datasheet

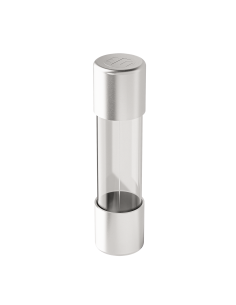

Fuse 5x20 M 250V glass 0,63A 7000102.0,63

Fuse 5x20 M 250V glass 0,63A 7000102.0,63

Reference 172000.0,63.0 - Manufacturer SIBA
Class M
Rated current In (A) 0,63
Rated Voltage Un AC (V) 250
Power loss (W) 0,2
Voltage drop (mV) 110
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass 0,7A 7000102.0,7

Fuse 5x20 M 250V glass 0,7A 7000102.0,7

Reference 172000.0,7.0 - Manufacturer SIBA
Class M
Rated current In (A) 0,7
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 140
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,6
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.95/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass 0,8A 7000102.0,8

Fuse 5x20 M 250V glass 0,8A 7000102.0,8

Reference 172000.0,8.0 - Manufacturer SIBA
Class M
Rated current In (A) 0,8
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 3,2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass 1,25A 7000102.1,25

Fuse 5x20 M 250V glass 1,25A 7000102.1,25

Reference 172000.1,25.0 - Manufacturer SIBA
Class M
Rated current In (A) 1,25
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 80
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass 1A 7000102.1

Fuse 5x20 M 250V glass 1A 7000102.1

Reference 172000.1.0 - Manufacturer SIBA
Class M
Rated current In (A) 1
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 6,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 1,6A 7000402.1,6

Fuse 5x20 M 250V glass + sand 1,6A 7000402.1,6

Reference 172100.1,6.0 - Manufacturer SIBA
Class M
Rated current In (A) 1,6
Rated Voltage Un AC (V) 250
Power loss (W) 0,8
Voltage drop (mV) 150
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 6,1
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 10A 7000402.10

Fuse 5x20 M 250V glass + sand 10A 7000402.10

Reference 172100.10.0 - Manufacturer SIBA
Class M
Rated current In (A) 10
Rated Voltage Un AC (V) 250
Power loss (W) 2,5
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 370
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 2
Price List €0.63/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 2,5A 7000402.2,5

Fuse 5x20 M 250V glass + sand 2,5A 7000402.2,5

Reference 172100.2,5.0 - Manufacturer SIBA
Class M
Rated current In (A) 2,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,9
Voltage drop (mV) 110
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 10
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet

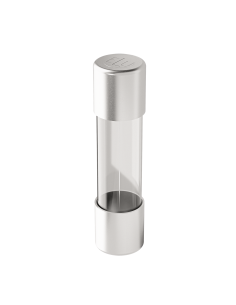

Fuse 5x20 M 250V glass + sand 2A 7000402.2

Fuse 5x20 M 250V glass + sand 2A 7000402.2

Reference 172100.2.0 - Manufacturer SIBA
Class M
Rated current In (A) 2
Rated Voltage Un AC (V) 250
Power loss (W) 0,8
Voltage drop (mV) 130
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 5,2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 3,15A 7000402.3,15

Fuse 5x20 M 250V glass + sand 3,15A 7000402.3,15

Reference 172100.3,15.0 - Manufacturer SIBA
Class M
Rated current In (A) 3,15
Rated Voltage Un AC (V) 250
Power loss (W) 1
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 4A 7000402.4

Fuse 5x20 M 250V glass + sand 4A 7000402.4

Reference 172100.4.0 - Manufacturer SIBA
Class M
Rated current In (A) 4
Rated Voltage Un AC (V) 250
Power loss (W) 1,1
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 37
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 5A 7000402.5

Fuse 5x20 M 250V glass + sand 5A 7000402.5

Reference 172100.5.0 - Manufacturer SIBA
Class M
Rated current In (A) 5
Rated Voltage Un AC (V) 250
Power loss (W) 1,3
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 72
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 6,3A 7000402.6,3

Fuse 5x20 M 250V glass + sand 6,3A 7000402.6,3

Reference 172100.6,3.0 - Manufacturer SIBA
Class M
Rated current In (A) 6,3
Rated Voltage Un AC (V) 250
Power loss (W) 1,6
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 130
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1000
Weight (gr) 2
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 5x20 M 250V glass + sand 8A 7000402.8

Fuse 5x20 M 250V glass + sand 8A 7000402.8

Reference 172100.8.0 - Manufacturer SIBA
Class M
Rated current In (A) 8
Rated Voltage Un AC (V) 250
Power loss (W) 2
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 230
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 1
Price List €0.63/pc
Quantity
lock Datasheet
Filter by
Manufacturer
Series name
Class
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Rated insultaion voltage AC (V)
Rated insulated voltage DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
