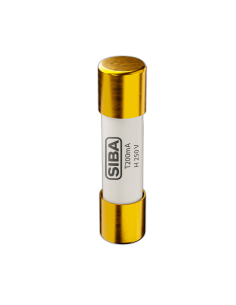

Fuse 5x20 T 250V ceramic UL 2A 7000765.2

Fuse 5x20 T 250V ceramic UL 2A 7000765.2

Reference 179200.2.0 - Manufacturer SIBA
Class T
Rated current In (A) 2
Rated Voltage Un AC (V) 250
Applicable standards IEC, UL
Power loss (W) 0,8
Voltage drop (mV) 130
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 5,2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V ceramic UL 3,15A 7000765.3,15

Fuse 5x20 T 250V ceramic UL 3,15A 7000765.3,15

Reference 179200.3,15.0 - Manufacturer SIBA
Class T
Rated current In (A) 3,15
Rated Voltage Un AC (V) 250
Applicable standards IEC, UL
Power loss (W) 1
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet

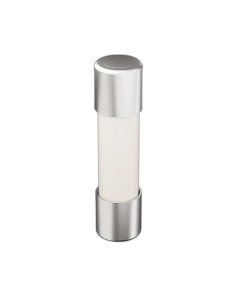

Fuse 5x20 T 250V ceramic UL 3,15A + pigtails

Fuse 5x20 T 250V ceramic UL 3,15A + pigtails

Reference 179200.3,15AK.0 - Manufacturer SIBA
Class T
Rated current In (A) 3,15
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 1
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €2.34/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V ceramic UL 4A 7000765.4

Fuse 5x20 T 250V ceramic UL 4A 7000765.4

Reference 179200.4.0 - Manufacturer SIBA
Class T
Rated current In (A) 4
Rated Voltage Un AC (V) 250
Applicable standards IEC, UL
Power loss (W) 1,1
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 37
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V ceramic UL 5A 7000765.5

Fuse 5x20 T 250V ceramic UL 5A 7000765.5

Reference 179200.5.0 - Manufacturer SIBA
Class T
Rated current In (A) 5
Rated Voltage Un AC (V) 250
Applicable standards IEC, UL
Power loss (W) 1,3
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 72
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V ceramic UL 6,3A 7000765.6,3

Fuse 5x20 T 250V ceramic UL 6,3A 7000765.6,3

Reference 179200.6,3.0 - Manufacturer SIBA
Class T
Rated current In (A) 6,3
Rated Voltage Un AC (V) 250
Applicable standards IEC, UL
Power loss (W) 1,6
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 130
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V ceramic UL 8A 7000765.8

Fuse 5x20 T 250V ceramic UL 8A 7000765.8

Reference 179200.8.0 - Manufacturer SIBA
Class T
Rated current In (A) 8
Rated Voltage Un AC (V) 250
Applicable standards UL
Power loss (W) 2
Voltage drop (mV) 90
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 230
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.78/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,08A 7000176.0,08

Fuse 5x20 T 250V glass UL-CSA 0,08A 7000176.0,08

Reference 179500.0,08.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,08
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 2800
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,024
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 2
Price List €1.43/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,1A 7000176.0,1

Fuse 5x20 T 250V glass UL-CSA 0,1A 7000176.0,1

Reference 179500.0,1.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,1
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 2400
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,053
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €2.49/pc
Quantity
lock Datasheet

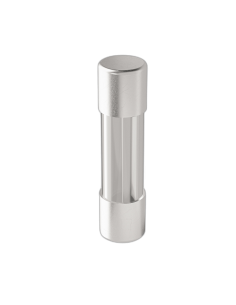

Fuse 5x20 T 250V glass UL-CSA 0,125A 7000176.0,125

Fuse 5x20 T 250V glass UL-CSA 0,125A 7000176.0,125

Reference 179500.0,125.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,125
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 2100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,08
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.50/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,15A 7000176.0,15

Fuse 5x20 T 250V glass UL-CSA 0,15A 7000176.0,15

Reference 179500.0,15.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,15
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 1800
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,13
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.69/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,2A 7000176.0,2

Fuse 5x20 T 250V glass UL-CSA 0,2A 7000176.0,2

Reference 179500.0,2.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,2
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 1300
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,25A 7000176.0,25

Fuse 5x20 T 250V glass UL-CSA 0,25A 7000176.0,25

Reference 179500.0,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,25
Rated Voltage Un AC (V) 250
Power loss (W) 0,3
Voltage drop (mV) 1100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,42
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.41/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,3A 7000176.0,3

Fuse 5x20 T 250V glass UL-CSA 0,3A 7000176.0,3

Reference 179500.0,3.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,3
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 1050
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,8
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.69/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,375A 7000176.0,375

Fuse 5x20 T 250V glass UL-CSA 0,375A 7000176.0,375

Reference 179500.0,375.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,375
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 900
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.69/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-CSA 0,4A 7000176.0,4

Fuse 5x20 T 250V glass UL-CSA 0,4A 7000176.0,4

Reference 179500.0,4.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,4
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 850
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,6
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.41/pc
Quantity
Fuse 5x20 T 250V glass UL-CSA 0,5A 7000176.0,5

Fuse 5x20 T 250V glass UL-CSA 0,5A 7000176.0,5

Reference 179500.0,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 600
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.41/pc
Quantity
Fuse 5x20 T 250V glass UL-CSA 0,6A 7000176.0,6

Fuse 5x20 T 250V glass UL-CSA 0,6A 7000176.0,6

Reference 179500.0,6.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,6
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 550
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 3,1
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.41/pc
Quantity
Fuse 5x20 T 250V glass UL-CSA 0,7A 7000176.0,7

Fuse 5x20 T 250V glass UL-CSA 0,7A 7000176.0,7

Reference 179500.0,7.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,7
Rated Voltage Un AC (V) 250
Power loss (W) 0,4
Voltage drop (mV) 500
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 4,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.69/pc
Quantity
