Fuse 1000V DC 14x65 gPV IEC 60269-6 30A

Fuse 1000V DC 14x65 gPV IEC 60269-6 30A

Reference 5023526.30.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 7,5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 118
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 950
Weight (gr) 28
Price List €39.87/pc
Quantity
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 10A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 10A

Reference 5023726.10.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 3,3
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 24
Weight (gr) 30
Price List €275.16/pc
Quantity
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 12A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 12A

Reference 5023726.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 3,5
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 13
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 62
Weight (gr) 30
Price List €55.40/pc
Quantity
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 16A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 16A

Reference 5023726.16.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 16
Applicable standards IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 30
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 143
Weight (gr) 30
Price List €55.76/pc
Quantity

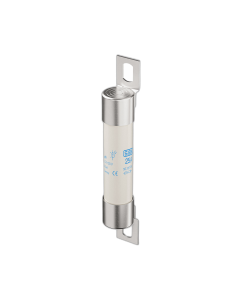

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 20A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 20A

Reference 5023726.20.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 4,7
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 53
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 250
Weight (gr) 30
Price List €55.91/pc
Quantity
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 25A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 25A

Reference 5023726.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 5,9
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Weight (gr) 30
Price List €56.17/pc
Quantity
Fuse 14x65 gPV 1000VDC with terminals distance 77,5mm 30A

Fuse 14x65 gPV 1000VDC with terminals distance 77,5mm 30A

Reference 5023726.30.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 30
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 118
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 950
Price List €27.91/pc
Quantity
Fuse 14x65 with bolted contats 1100VDC gPV UL2579 12A

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 12A

Reference 5023728.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC, UL
Power loss (W) 4,1
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 7,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 51
Weight (gr) 30
Price List €302.58/pc
Quantity

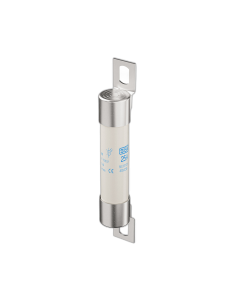

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 16A

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 16A

Reference 5023728.16.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 16
Applicable standards IEC, UL
Power loss (W) 4,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 109
Weight (gr) 38
Price List €302.79/pc
Quantity
Fuse 14x65 with bolted contats 1100VDC gPV UL2579 20A

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 20A

Reference 5023728.20.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 20
Applicable standards IEC, UL
Power loss (W) 5,5
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 30
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 205
Weight (gr) 30
Price List €303.04/pc
Quantity
Fuse 14x65 with bolted contats 1100VDC gPV UL2579 25A

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 25A

Reference 5023728.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC, UL
Power loss (W) 5,9
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Weight (gr) 30
Price List €55.09/pc
Quantity
Fuse 1100V DC 10/14x85 gPV IEC 60269-6 10A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 10A

Reference 5023826.10.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 3,3
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 24
Weight (gr) 26
Price List €42.29/pc
Quantity
Fuse 1100V DC 10/14x85 gPV IEC 60269-6 12A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 12A

Reference 5023826.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 3,5
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 13
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 62
Weight (gr) 28
Price List €42.45/pc
Quantity
Fuse 1100V DC 10/14x85 gPV IEC 60269-6 16A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 16A

Reference 5023826.16.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 16
Applicable standards IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 30
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 143
Weight (gr) 28
Price List €42.81/pc
Quantity
Fuse 1100V DC 10/14x85 gPV IEC 60269-6 20A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 20A

Reference 5023826.20.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 4,7
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 53
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 250
Weight (gr) 28
Price List €42.96/pc
Quantity
Fuse 1100V DC 10/14x85 gPV IEC 60269-6 25A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 25A

Reference 5023826.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 5,9
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Weight (gr) 28
Price List €43.22/pc
Quantity
Fuse 1000V DC 10/14x85 gPV IEC 60269-6 30A

Fuse 1000V DC 10/14x85 gPV IEC 60269-6 30A

Reference 5023826.30.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 7,5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x65
Melting I²t value (A²s) 118
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 950
Weight (gr) 28
Price List €119.99/pc
Quantity

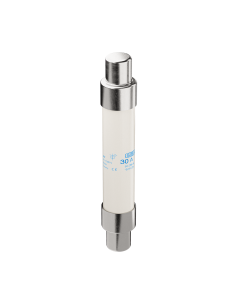

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 8A

Fuse 1100V DC 10/14x85 gPV IEC 60269-6 8A

Reference 5023826.8.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 8
Applicable standards IEC
Power loss (W) 2,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x65
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 22
Price List €20.91/pc
Quantity
Fuse 10/14x85 1100VDC gPV UL2579 10A

Fuse 10/14x85 1100VDC gPV UL2579 10A

Reference 5023828.10.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 10
Applicable standards IEC, UL
Power loss (W) 4
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 21
Weight (gr) 26
Price List €48.53/pc
Quantity
Fuse 10/14x85 1100VDC gPV UL2579 12A

Fuse 10/14x85 1100VDC gPV UL2579 12A

Reference 5023828.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC, UL
Power loss (W) 4,1
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 7,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 51
Weight (gr) 26
Price List €49.02/pc
Quantity
Fuse 10/14x85 1100VDC gPV UL2579 16A

Fuse 10/14x85 1100VDC gPV UL2579 16A

Reference 5023828.16.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 16
Applicable standards IEC, UL
Power loss (W) 4,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 109
Weight (gr) 26
Price List €49.39/pc
Quantity
Fuse 10/14x85 1100VDC gPV UL2579 20A

Fuse 10/14x85 1100VDC gPV UL2579 20A

Reference 5023828.20.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 20
Applicable standards IEC, UL
Power loss (W) 5,5
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x65
Melting I²t value (A²s) 30
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 205
Weight (gr) 26
Price List €50.42/pc
Quantity
Fuse 10/14x85 1100VDC gPV UL2579 25A

Fuse 10/14x85 1100VDC gPV UL2579 25A

Reference 5023828.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC, UL
Power loss (W) 5,9
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 10/14x85
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Weight (gr) 26
Price List €51.38/pc
Quantity
Fuse 14x65 gPV 1100VDC plap contacts 25A

Fuse 14x65 gPV 1100VDC plap contacts 25A

Reference 5023926.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Price List €59.29/pc
Quantity
Filter by
Manufacturer
Series name
Class
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Rated insultaion voltage AC (V)
Rated insulated voltage DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
