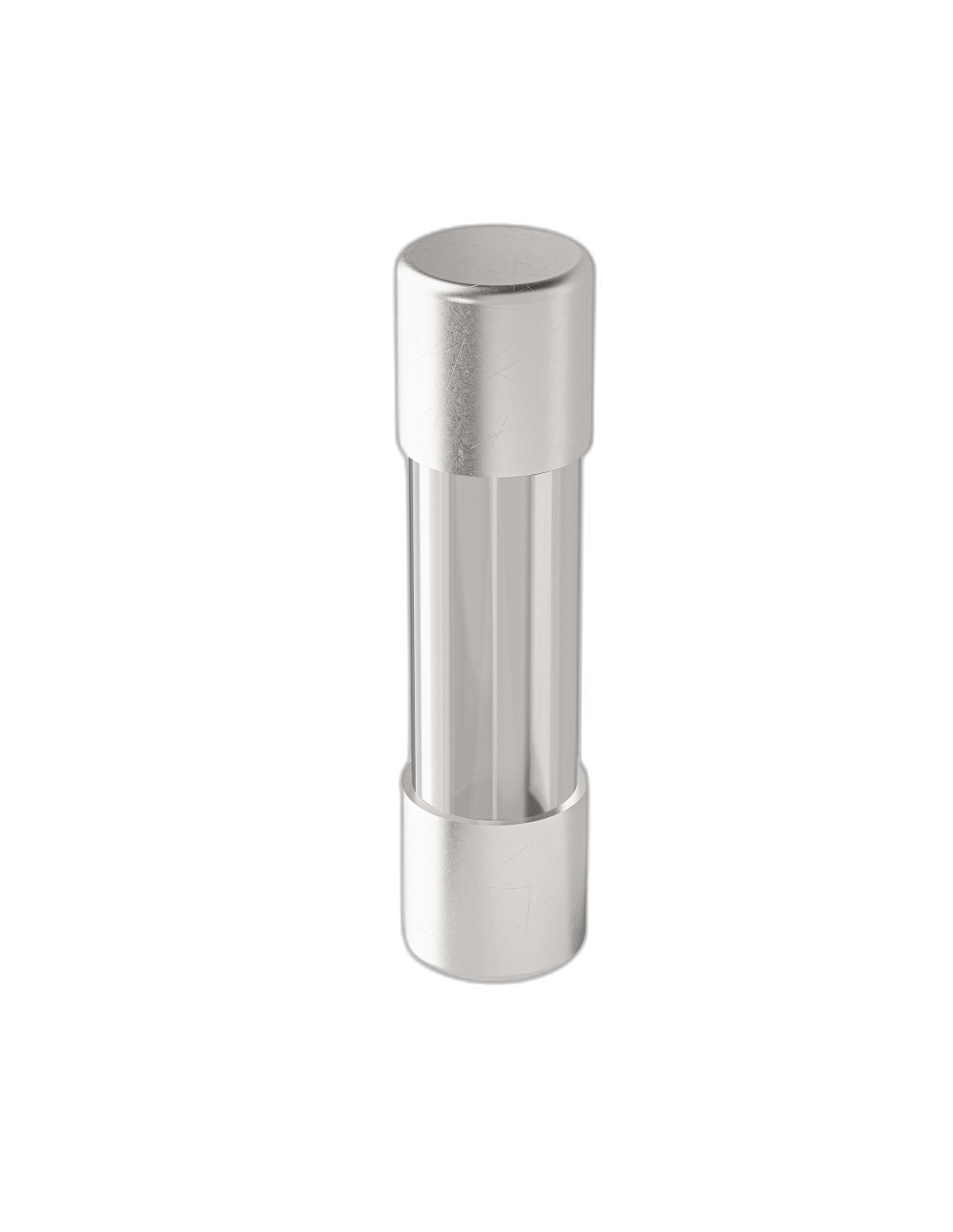

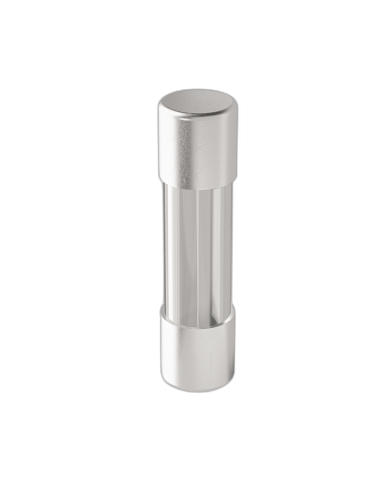

Fuse 5x20 T 250V glass UL 0,315A 7000135.0,315
Fuse 5x20 T 250V glass UL 0,315A 7000135.0,315

Fuse 5x20 T 250V glass UL 0,315A 7000135.0,315

Reference: 179120.0,315.0  -  Manufacturer: SIBA
$0.28 /pc VAT excl.

This product is only sold in boxes of 100 pcs

Product Details

Class
T
Rated current In (A)
0,315
Rated Voltage Un AC (V)
250
Applicable standards
IEC
Power loss (W)
0,2
Voltage drop (mV)
140
Resistance (ohm)
0,33
Fuse Dimension (mm)
5x20
Melting I²t value (A²s)
0,35
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
250
Rated breaking capacity I1 AC (kA)
35
Weight (gr)
1
lock Datasheet
