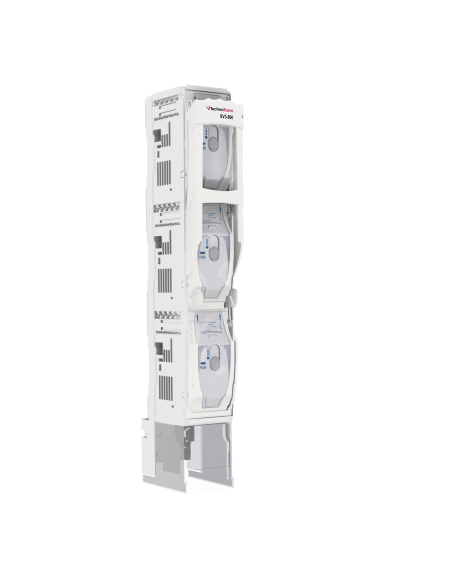

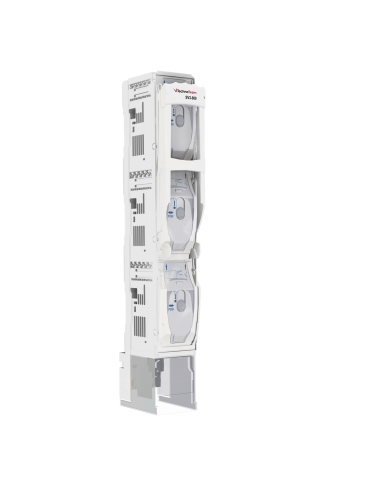

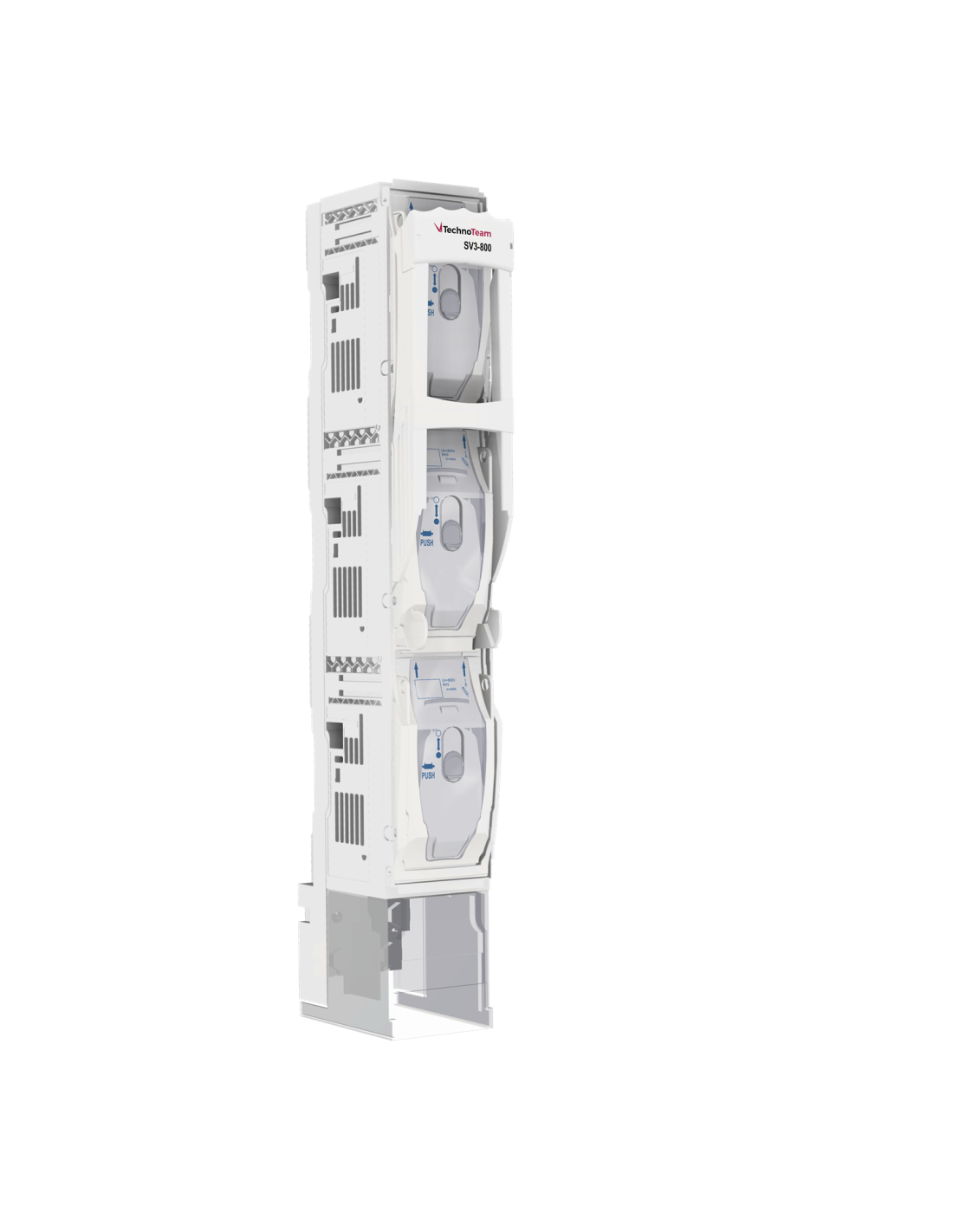

SV1-2-800-V Vertical disconnector NH1-2 800VAC V connection
SV1-2-800-V Vertical disconnector NH1-2 800VAC V connection

SV1-2-800-V Vertical disconnector NH1-2 800VAC V connection

Reference: M04.584.00.0.0  -  Manufacturer: TechnoTeam
€256.69 /pc VAT excl.

Product Details

Rated current In (A)
200
Rated Voltage Un AC (V)
800
Dimension
NH1
Applicable standards
IEC
Max power dissipation (W)
21
Series name
SV1-2-800
Fuse Connection/Terminal type
NH knife contact
Busbar system (mm)
185
Cables connection
V-clamp
Utilization category
AC21B
Number of poles
3
Weight (gr)
5800
