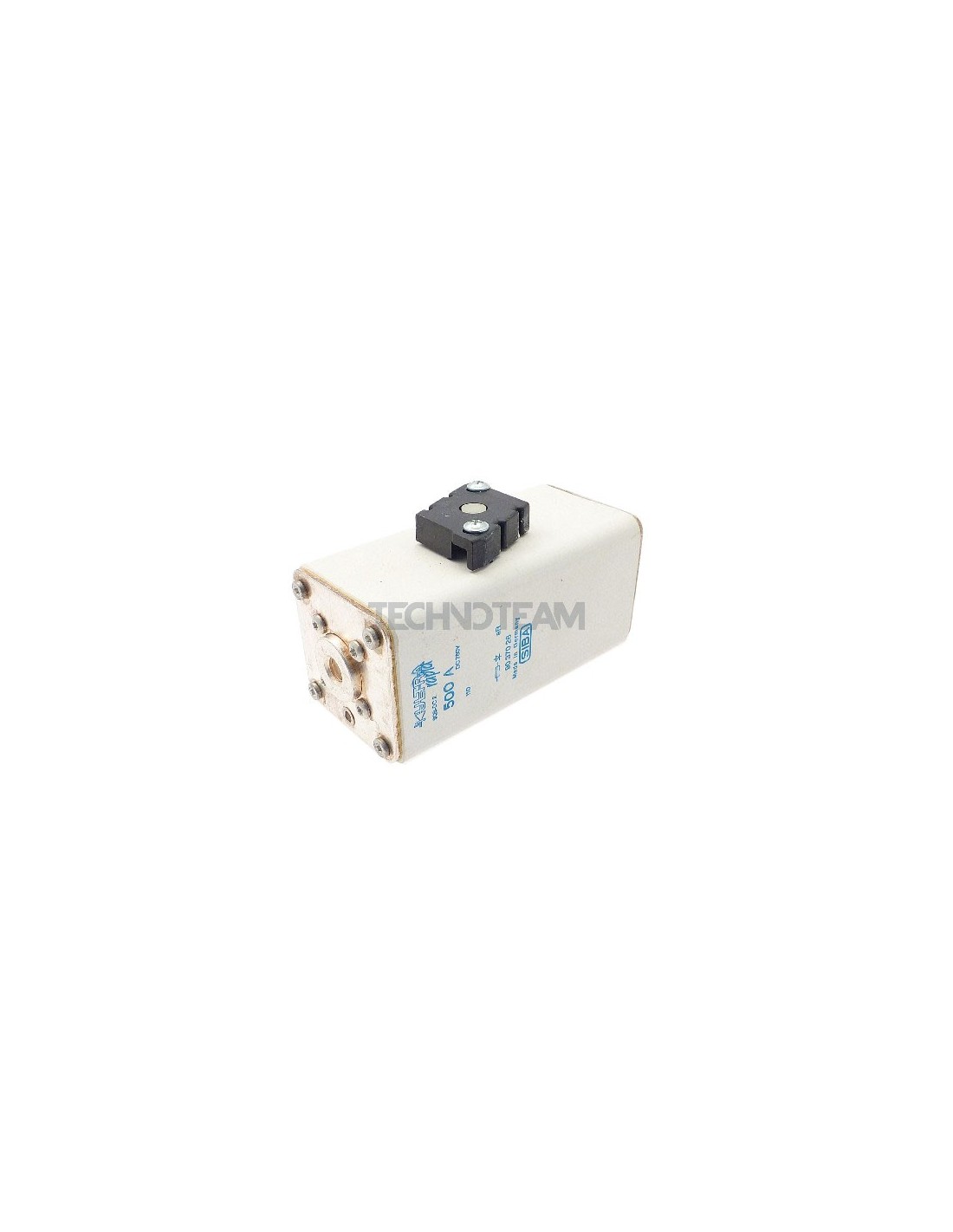

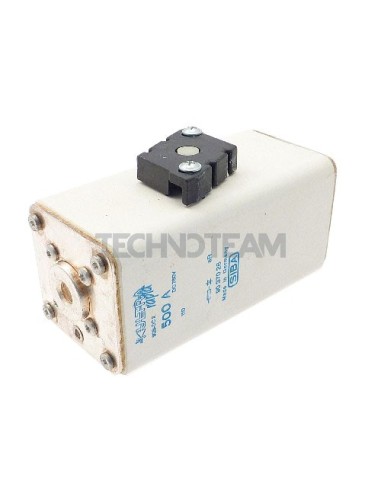

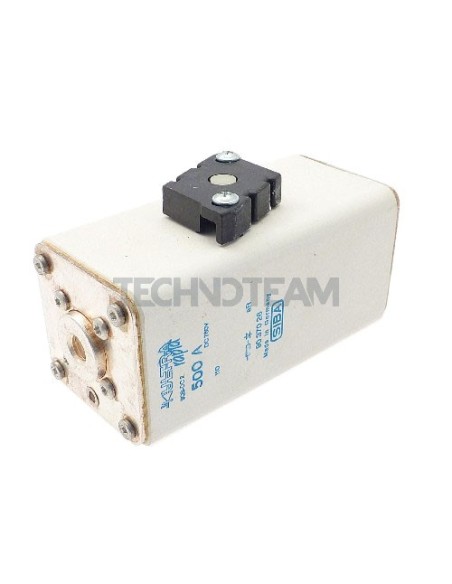

Fuse SQB-DC92 aR 750VDC screw M10 with switch adapt 400A
Fuse SQB-DC92 aR 750VDC screw M10 with switch adapt 400A

Fuse SQB-DC92 aR 750VDC screw M10 with switch adapt 400A

Reference: 9037026.400.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
400
Dimension
SQB2
Applicable standards
IEC
Power loss (W)
68
Rated Voltage Un DC (V)
750
Time costant L/R (ms)
40
Rated breaking capacity I1 DC (kA)
30000
Fixing dimensions
M10
Melting I²t value (A²s)
79800
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
900
Total clearing I²t @Un AC (A²s)
1050000
Weight (gr)
1280
