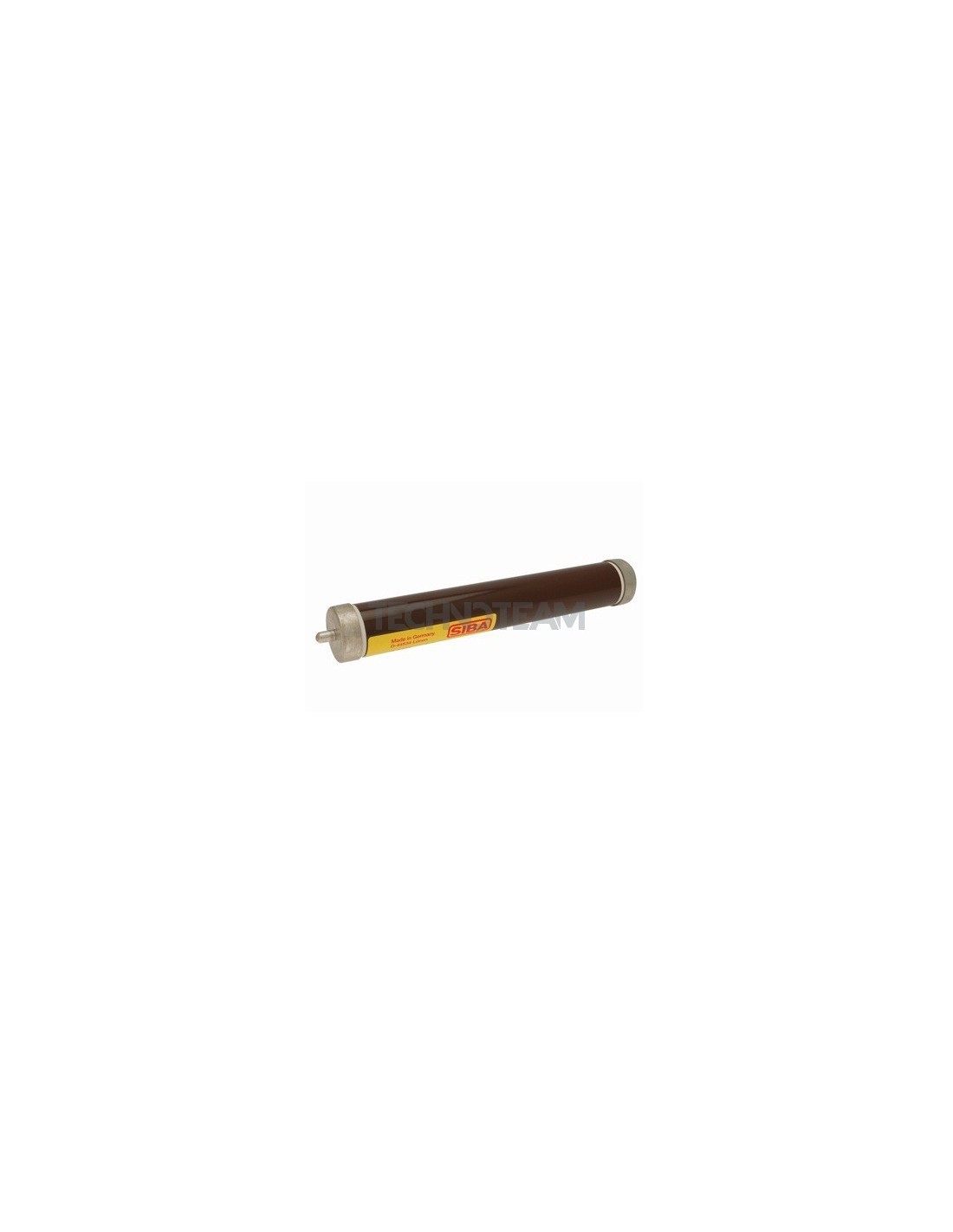

Fuse railway application 39,6x254 gR 4000VDC 16A
Fuse railway application 39,6x254 gR 4000VDC 16A

Fuse railway application 39,6x254 gR 4000VDC 16A

Reference: 9010010.16.0  -  Manufacturer: SIBA
€321.69 /pc VAT excl.

Product Details

Class
gR
Rated current In (A)
16
Applicable standards
IEC
Power loss (W)
23
Rated Voltage Un DC (V)
3600
Time costant L/R (ms)
15
Rated breaking capacity I1 DC (kA)
3200
Fuse Dimension (mm)
39,6x254
Melting I²t value (A²s)
72
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
4000
Total clearing I²t @Un AC (A²s)
360
Weight (gr)
780
