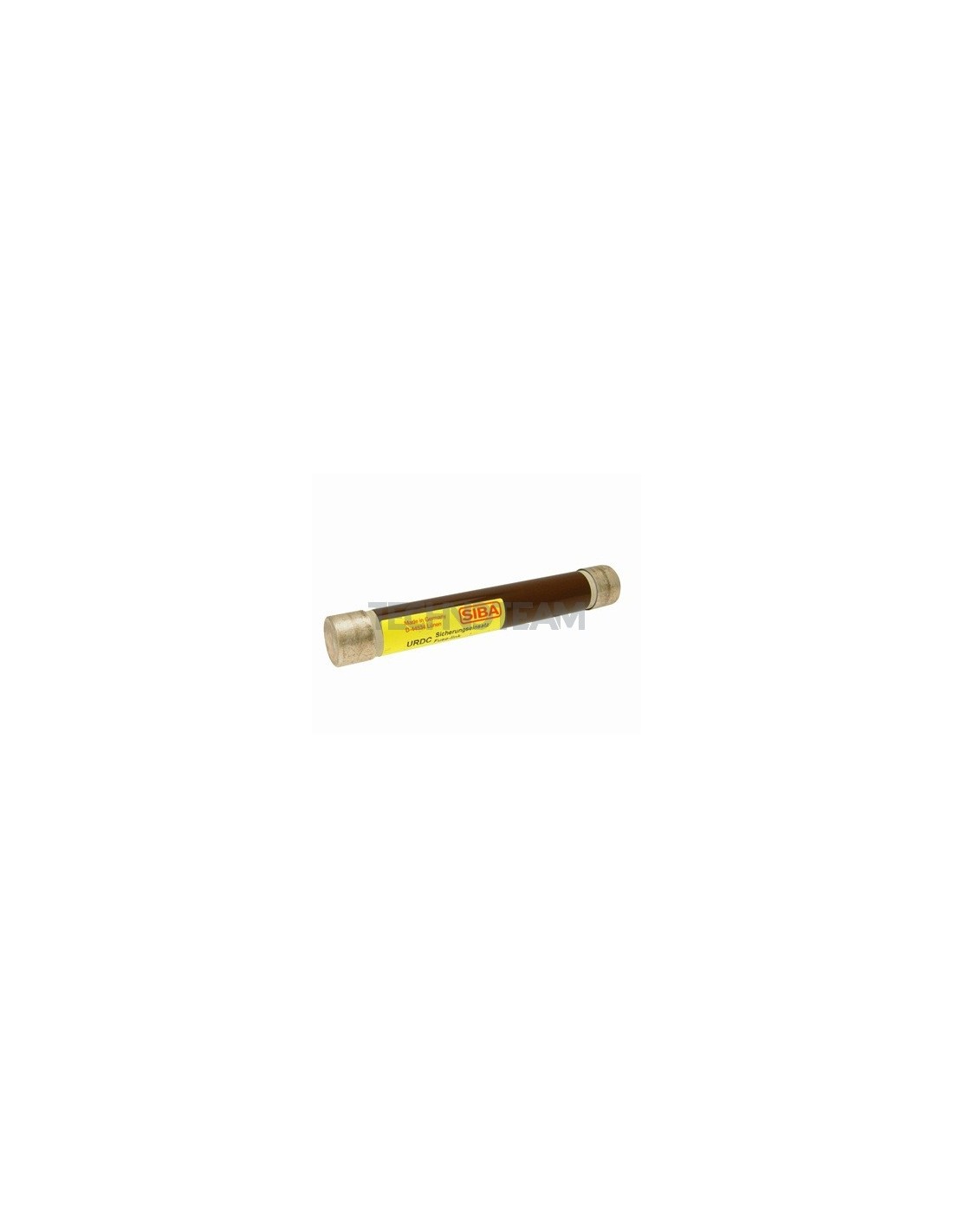

Fuse railway application 36x250 gR 2000VDC 32A
Fuse railway application 36x250 gR 2000VDC 32A

Fuse railway application 36x250 gR 2000VDC 32A

Reference: 9009610.32.0  -  Manufacturer: SIBA
€524.94 /pc VAT excl.

Product Details

Class
gR
Rated current In (A)
32
Applicable standards
IEC
Power loss (W)
22
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
20
Rated breaking capacity I1 DC (kA)
30000
Fuse Dimension (mm)
36x250
Melting I²t value (A²s)
250
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
2000
Total clearing I²t @Un AC (A²s)
1350
Weight (gr)
660
