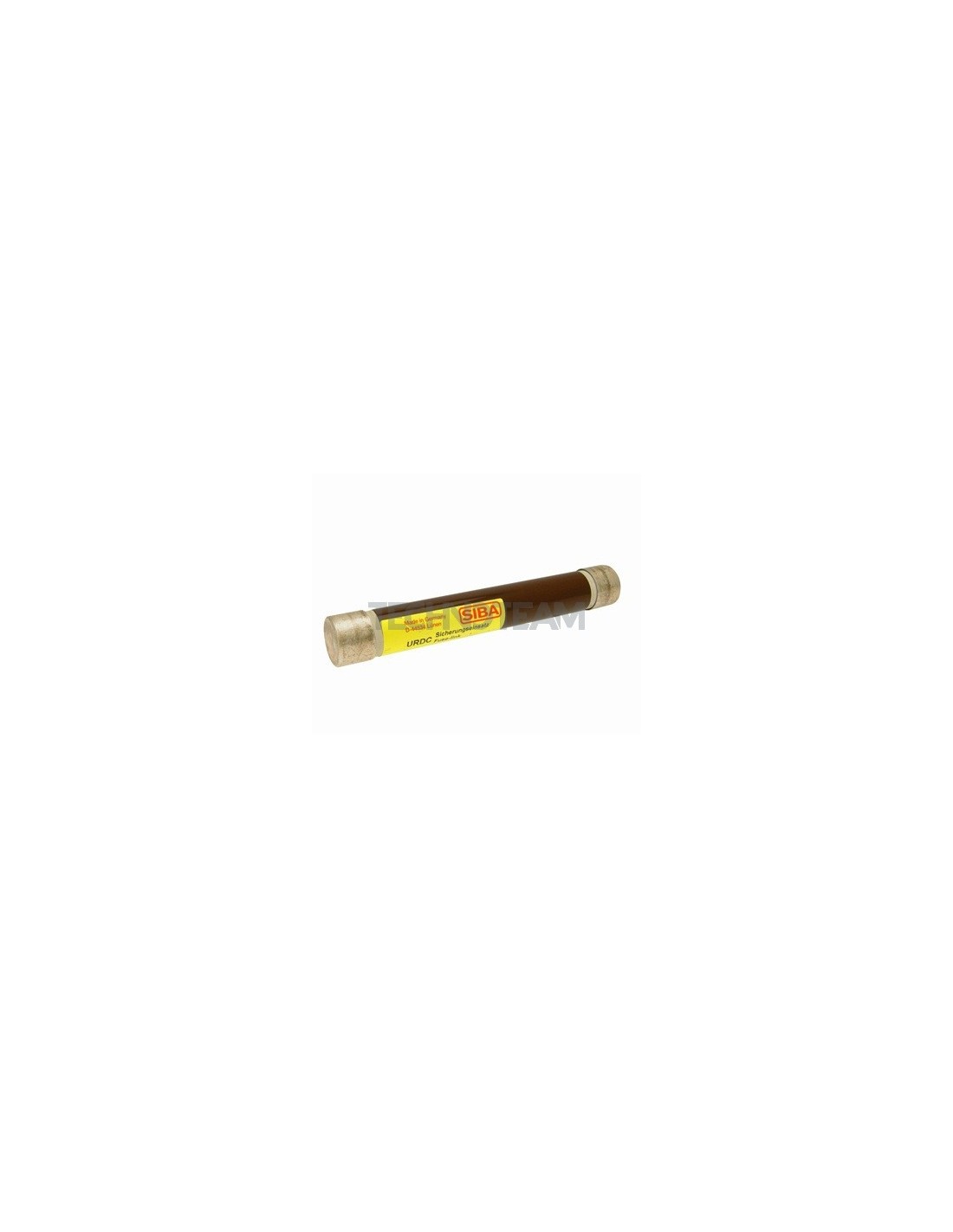

Fuse railway application 36x250 gR 2000VDC 20A
Fuse railway application 36x250 gR 2000VDC 20A

Fuse railway application 36x250 gR 2000VDC 20A

Reference: 9009610.20.0  -  Manufacturer: SIBA
€203.98 /pc VAT excl.

Product Details

Class
gR
Rated current In (A)
20
Applicable standards
IEC
Power loss (W)
14
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
20
Rated breaking capacity I1 DC (kA)
30000
Fuse Dimension (mm)
36x250
Melting I²t value (A²s)
81
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
2000
Total clearing I²t @Un AC (A²s)
430
Weight (gr)
1900
