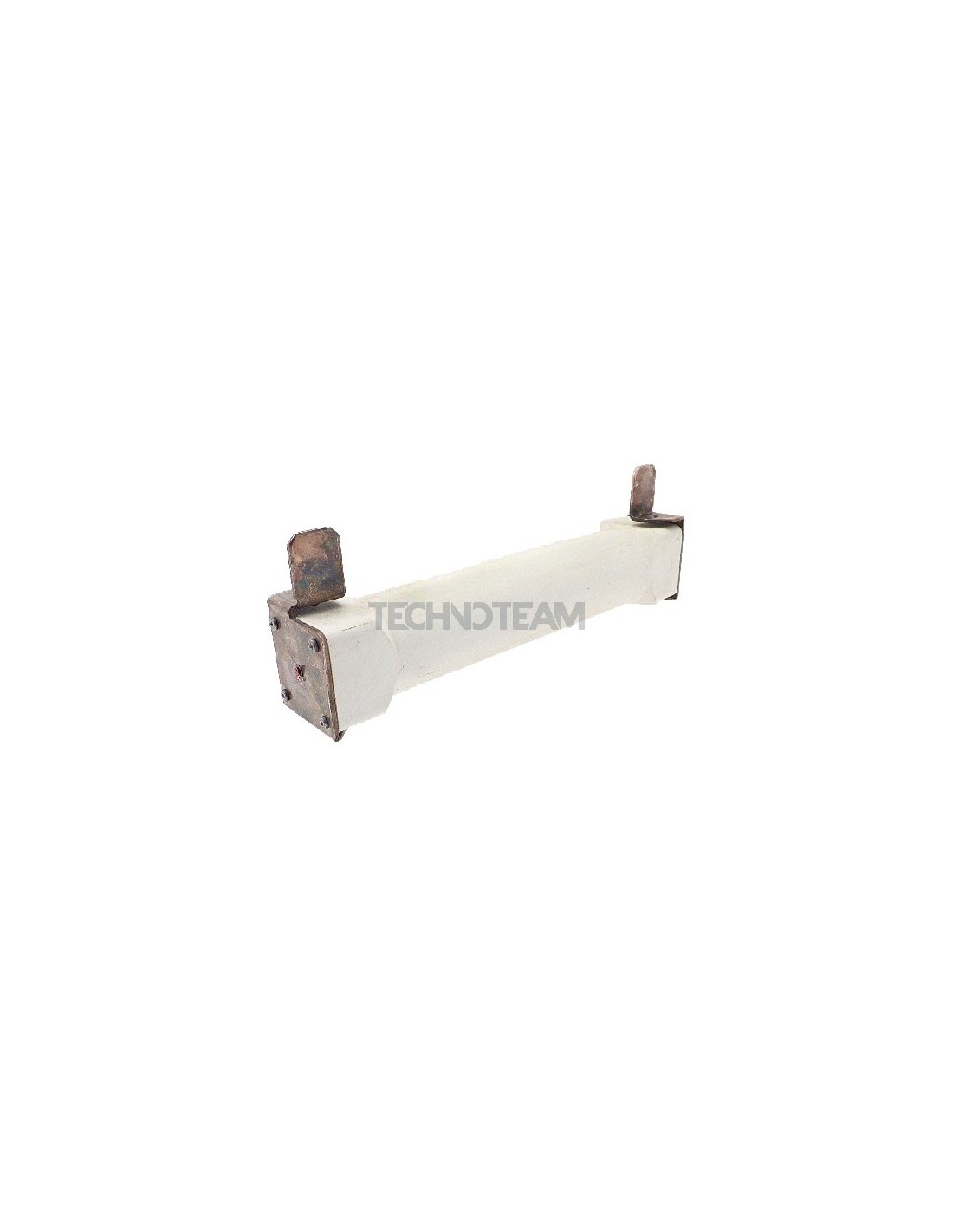

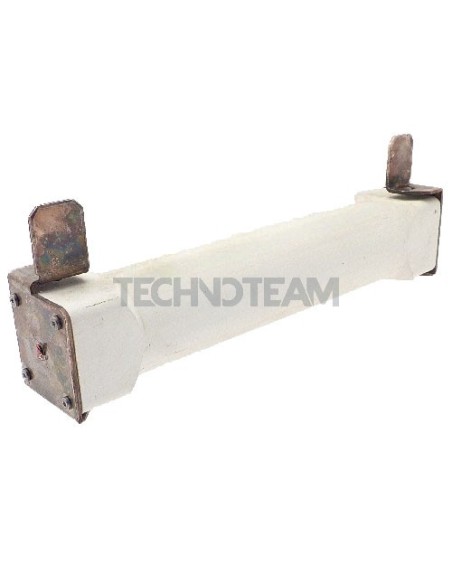

Fuse railway application 300mm 3000V DC 30A 357/447
Fuse railway application 300mm 3000V DC 30A 357/447

Fuse railway application 300mm 3000V DC 30A 357/447

Reference: 9005706.30TR.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
HH Back up
Rated current In (A)
30
Power loss (W)
44
Rated Voltage Un DC (V)
3000
Rated breaking capacity I1 DC (kA)
10000
Melting I²t value (A²s)
2200
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
3000
Total clearing I²t @Un AC (A²s)
3900
Weight (gr)
2520
