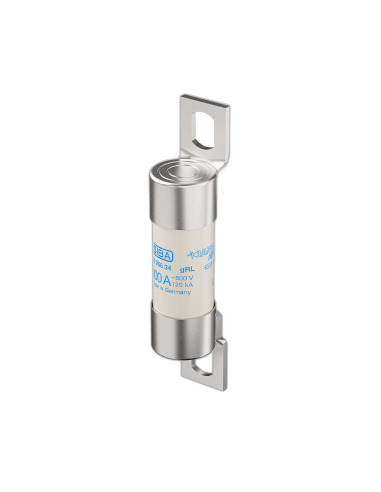

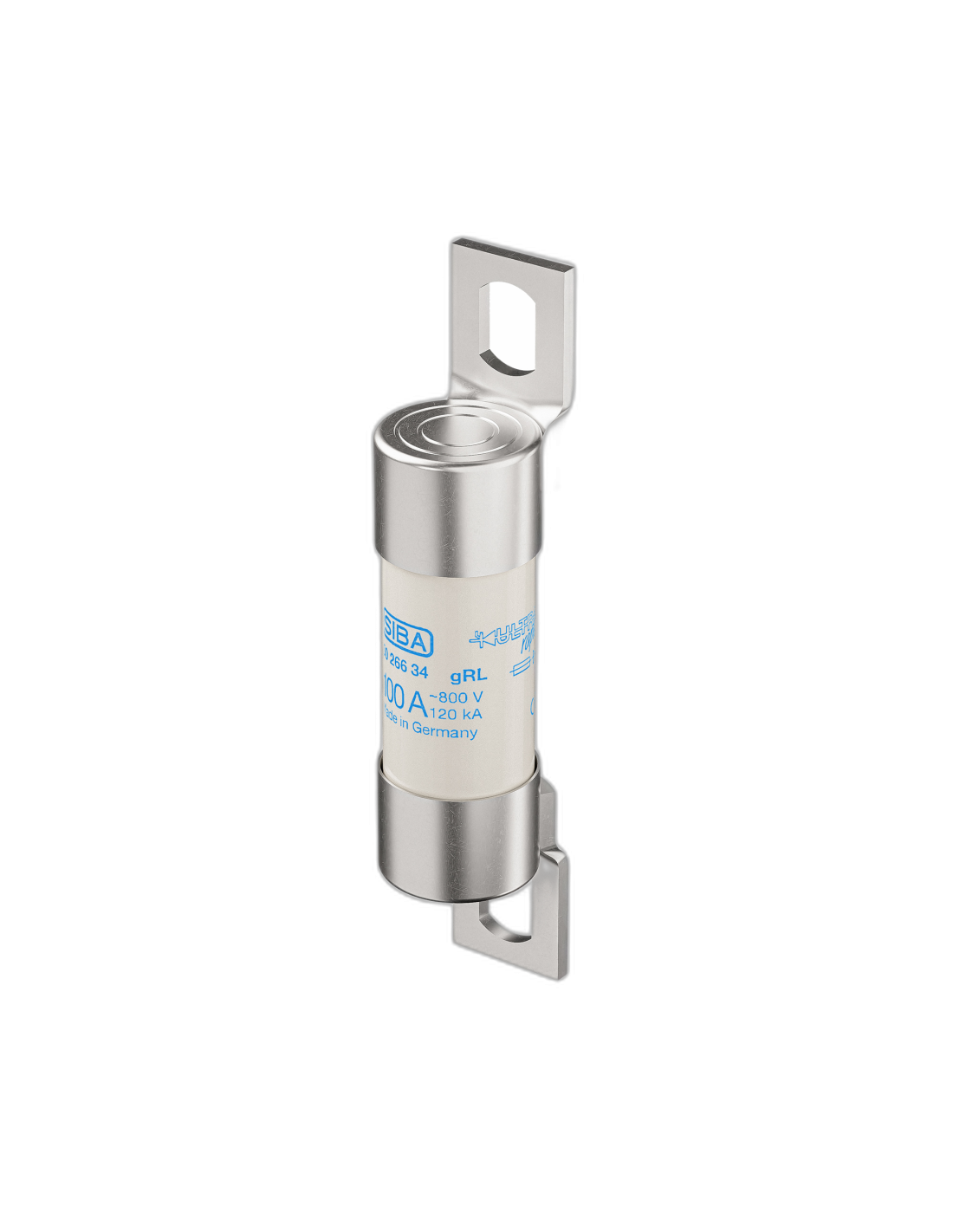

Fuse 800V gRL 22x65 with terminals 85mm 100A
Fuse 800V gRL 22x65 with terminals 85mm 100A

Fuse 800V gRL 22x65 with terminals 85mm 100A

Reference: 5026634.100.0  -  Manufacturer: SIBA
€145.87 /pc VAT excl.

Product Details

Class
gRL, gS
Rated current In (A)
100
Rated Voltage Un AC (V)
800
Applicable standards
IEC
Power loss (W)
11,5
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
4600
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
800
Total clearing I²t @Un AC (A²s)
46000
Rated breaking capacity I1 AC (kA)
120000
