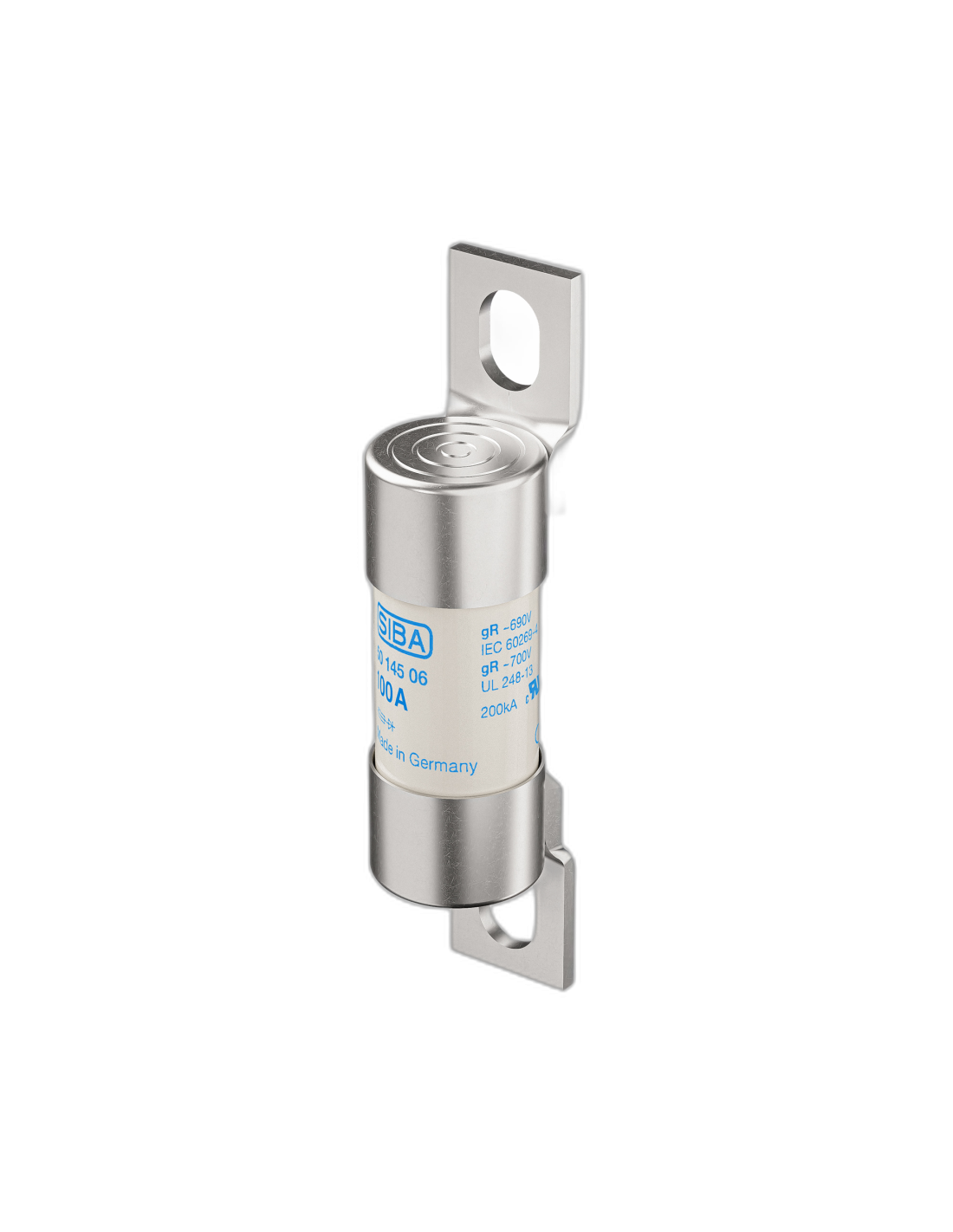

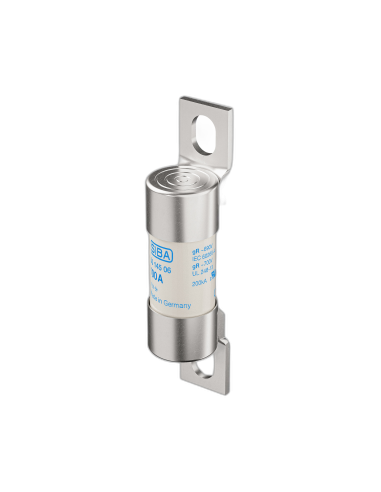

Fuse 22x58 with terminals 80mm gR 690V 50A
Fuse 22x58 with terminals 80mm gR 690V 50A

Fuse 22x58 with terminals 80mm gR 690V 50A

Reference: 5014506.50.0  -  Manufacturer: SIBA
€25.68 /pc VAT excl.

This product is only sold in boxes of 10 pcs

Product Details

Class
gR
Rated current In (A)
50
Rated Voltage Un AC (V)
690
Applicable standards
IEC, UL
Power loss (W)
15
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
210
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
660
Total clearing I²t @Un AC (A²s)
910
Rated breaking capacity I1 AC (kA)
200000
Weight (gr)
80
