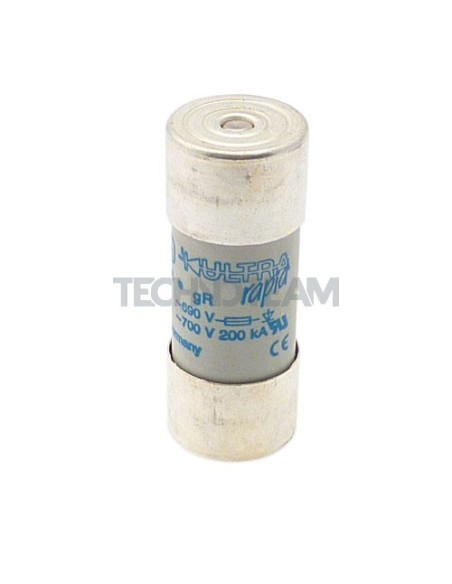

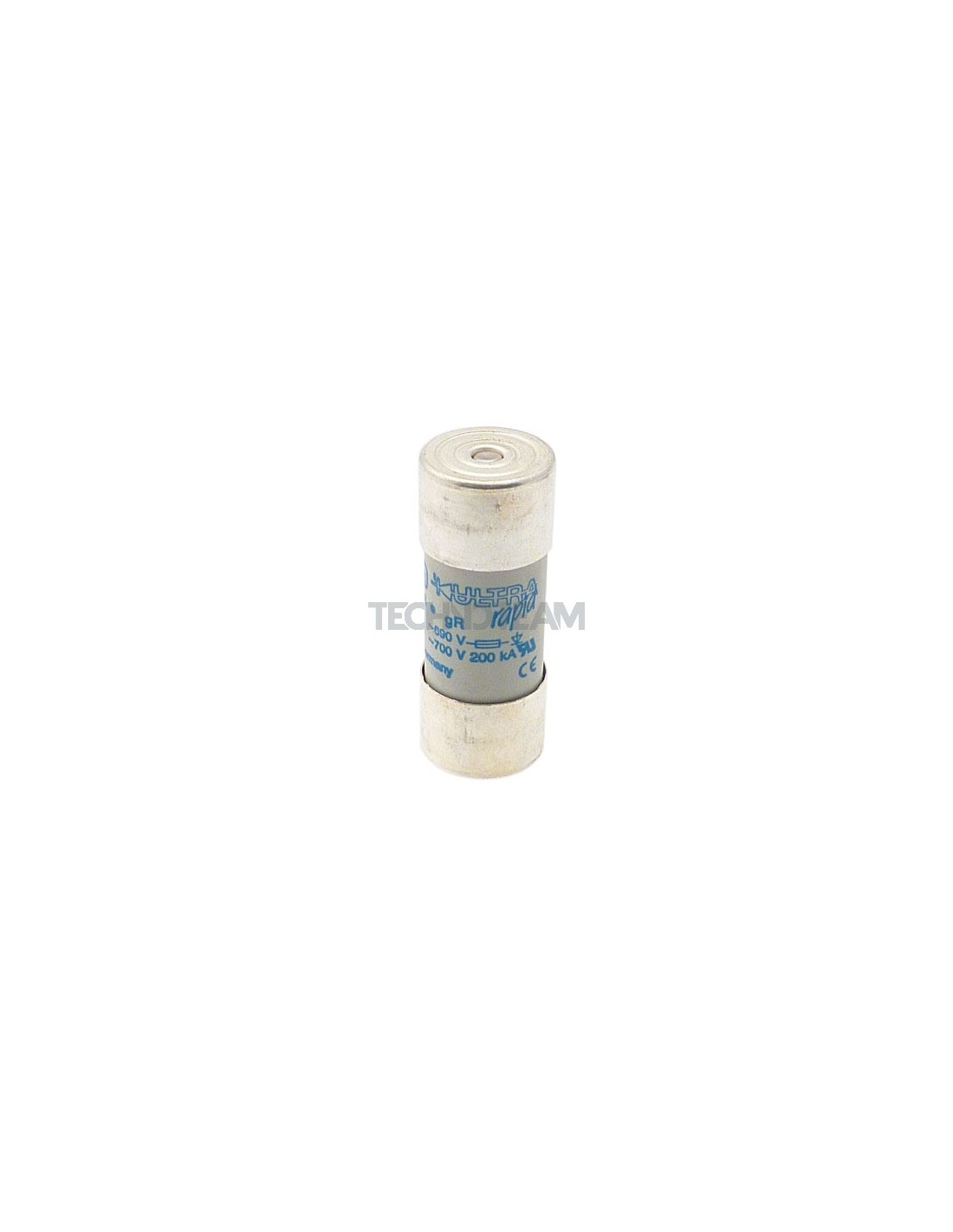

Fuse 22x58 gR 690V UL with striker 40A
Fuse 22x58 gR 690V UL with striker 40A

Fuse 22x58 gR 690V UL with striker 40A

Reference: 5014206.40.0  -  Manufacturer: SIBA
€17.35 /pc VAT excl.

This product is only sold in boxes of 10 pcs

Product Details

Class
gR
Rated current In (A)
40
Rated Voltage Un AC (V)
700
Applicable standards
IEC, UL
Power loss (W)
12
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
140
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
660
Total clearing I²t @Un AC (A²s)
610
Rated breaking capacity I1 AC (kA)
200000
Weight (gr)
60
