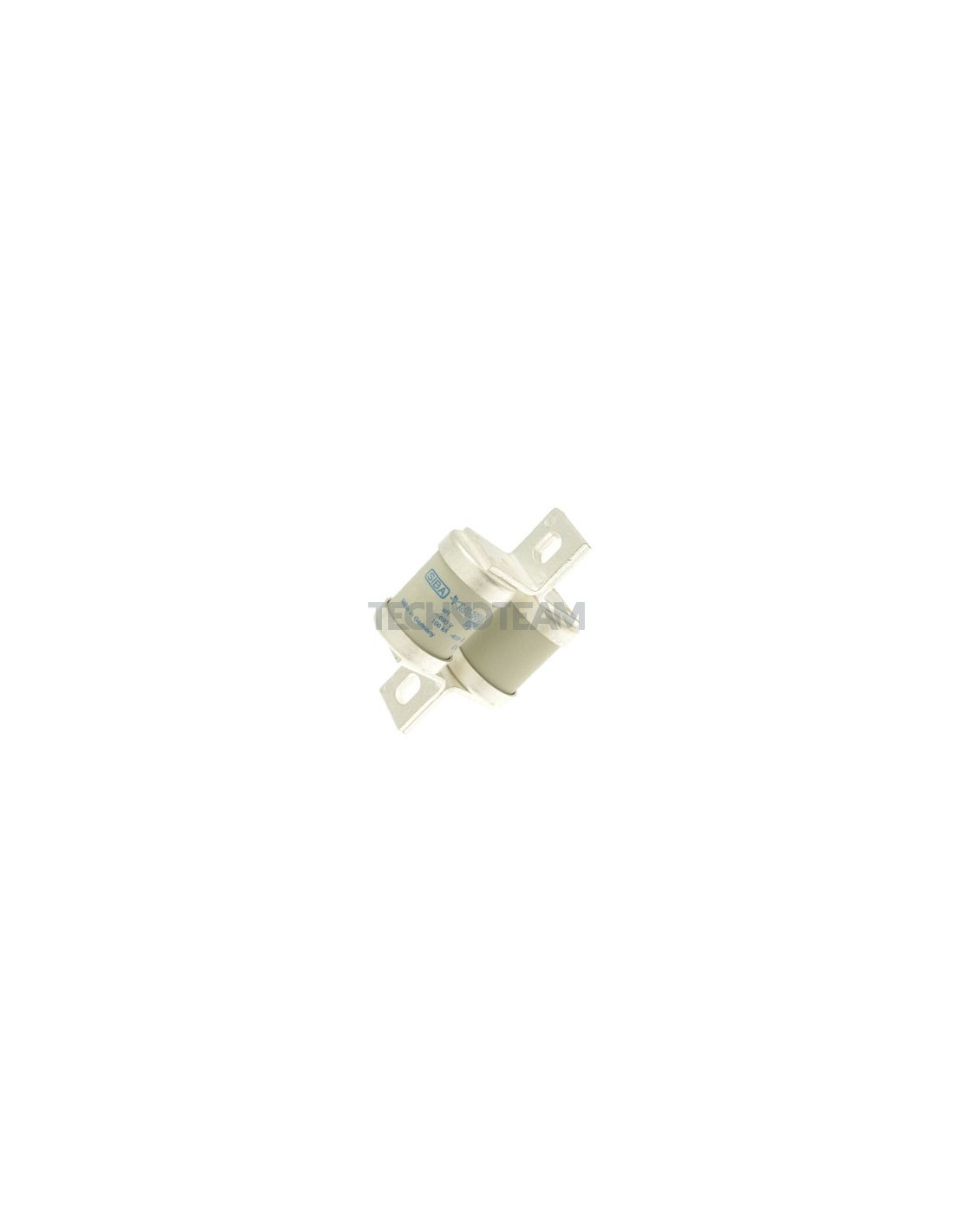

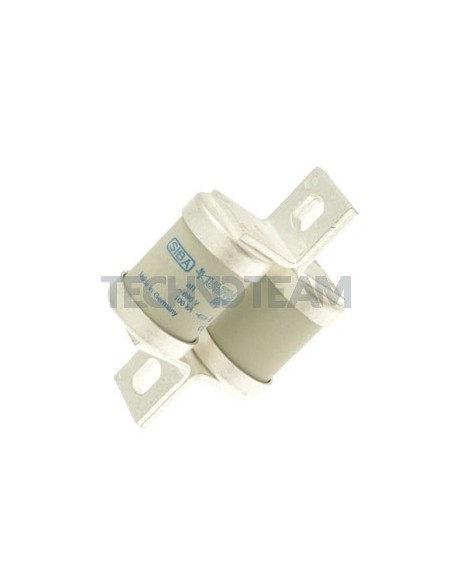

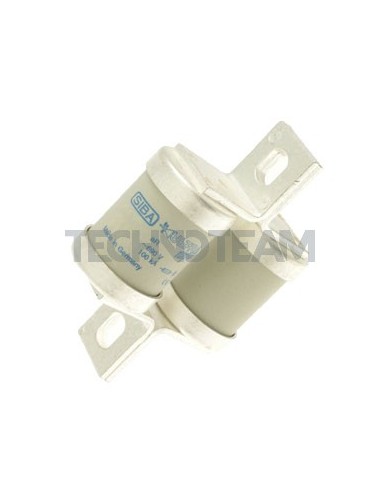

Fuse BS 2x35x85 aR 690V (FMM-MMT) 550A
Fuse BS 2x35x85 aR 690V (FMM-MMT) 550A

Fuse BS 2x35x85 aR 690V (FMM-MMT) 550A

Reference: 5007506.550.0  -  Manufacturer: SIBA
€124.97 /pc VAT excl.

Product Details

Class
aR
Rated current In (A)
550
Rated Voltage Un AC (V)
690
Applicable standards
IEC
Power loss (W)
78
Fuse Dimension (mm)
2x 35x85
Melting I²t value (A²s)
93400
Fuse Connection/Terminal type
BS
Voltage of total clearing I2t test
690
Total clearing I²t @Un AC (A²s)
598000
Rated breaking capacity I1 AC (kA)
100000
Weight (gr)
380
