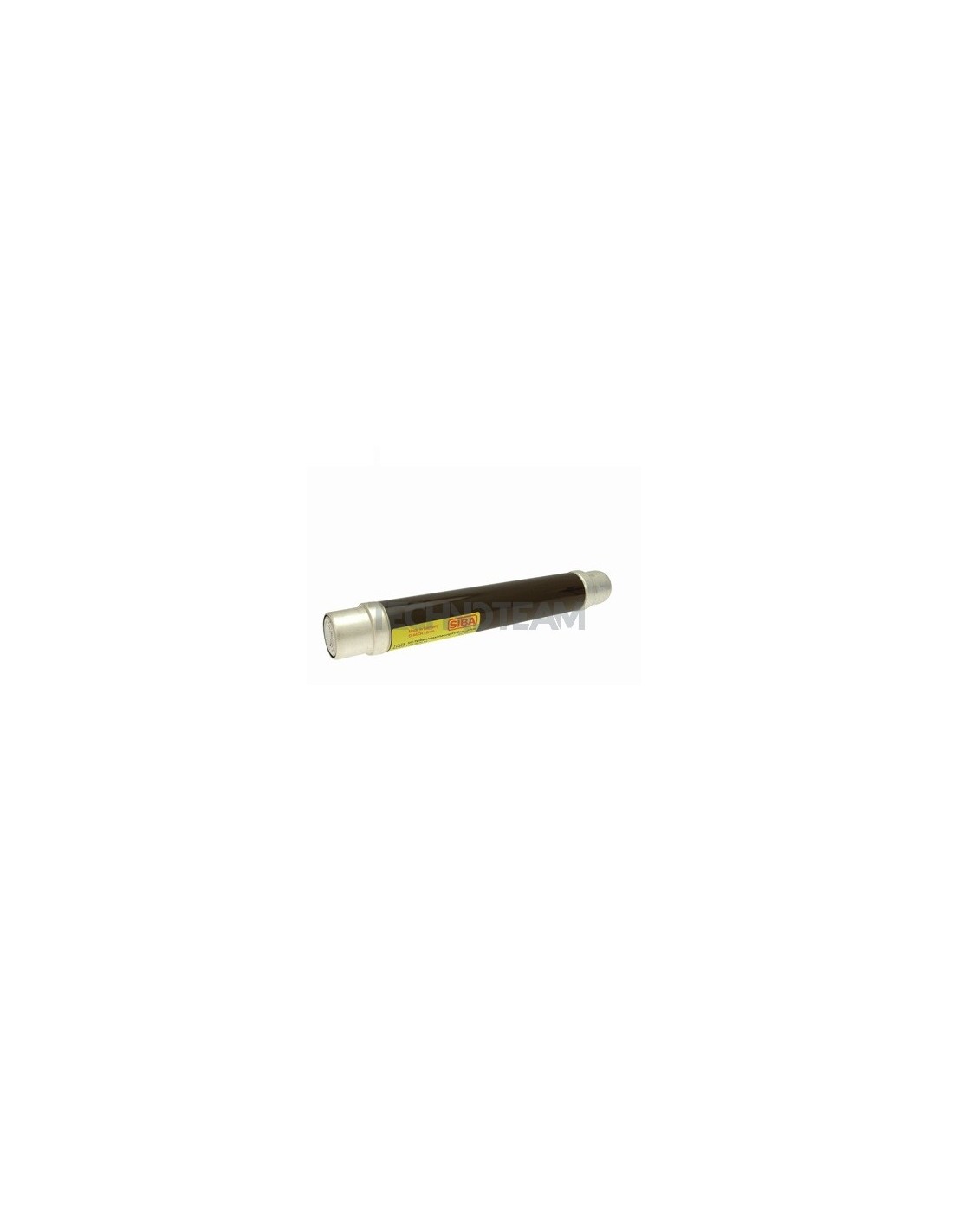

Fuse VT 36kV DIN 53x292 3,15A
Fuse VT 36kV DIN 53x292 3,15A

Fuse VT 36kV DIN 53x292 3,15A

Reference: 3038211.3,15.0  -  Manufacturer: SIBA
€97.81 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
3,15
Rated Voltage Un AC (V)
36000
Applicable standards
IEC
Power loss (W)
26
Resistance (ohm)
1,9
Fuse Dimension (mm)
53x292
Melting I²t value (A²s)
17
Minimum breaking current (A)
24
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
31320
Total clearing I²t @Un AC (A²s)
48
Rated breaking capacity I1 AC (kA)
40000
Weight (gr)
2000
