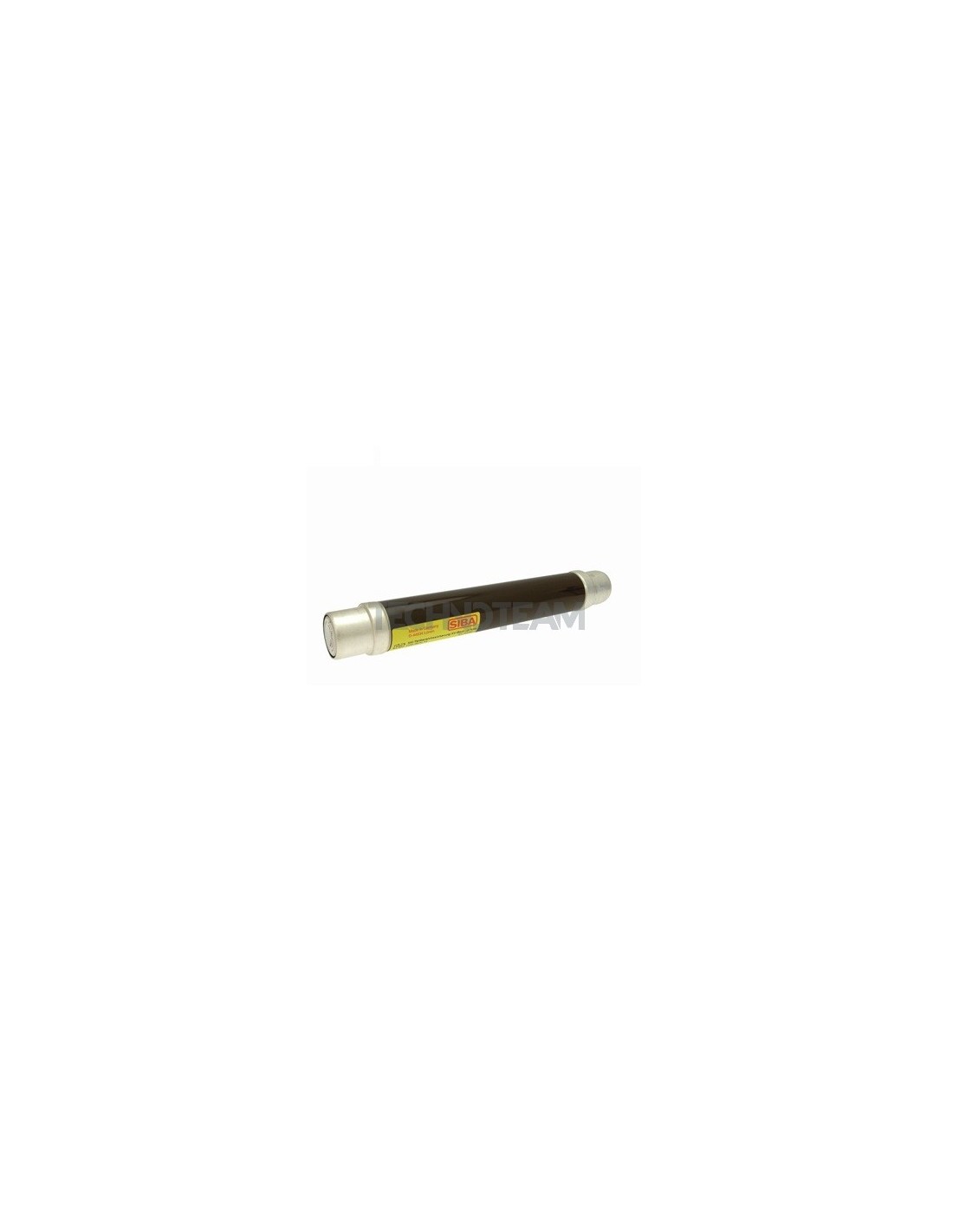

Fuse VT 36kV DIN 53x292 1A
Fuse VT 36kV DIN 53x292 1A

Fuse VT 36kV DIN 53x292 1A

Reference: 3038211.1.0  -  Manufacturer: SIBA
€97.06 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
1
Rated Voltage Un AC (V)
36000
Applicable standards
IEC
Power loss (W)
13
Resistance (ohm)
9,57
Fuse Dimension (mm)
53x292
Melting I²t value (A²s)
0,63
Minimum breaking current (A)
8
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
31320
Total clearing I²t @Un AC (A²s)
2,8
Rated breaking capacity I1 AC (kA)
40000
Weight (gr)
1640
