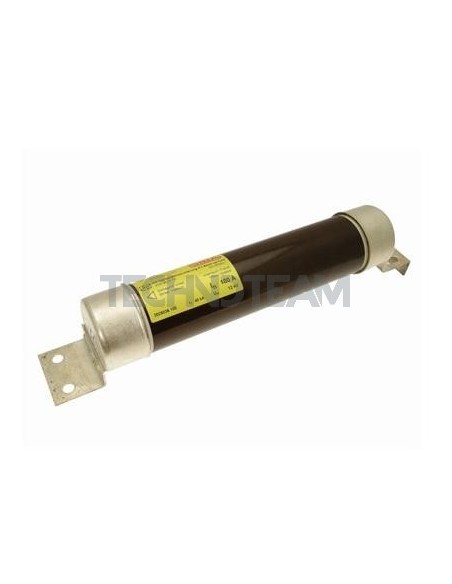

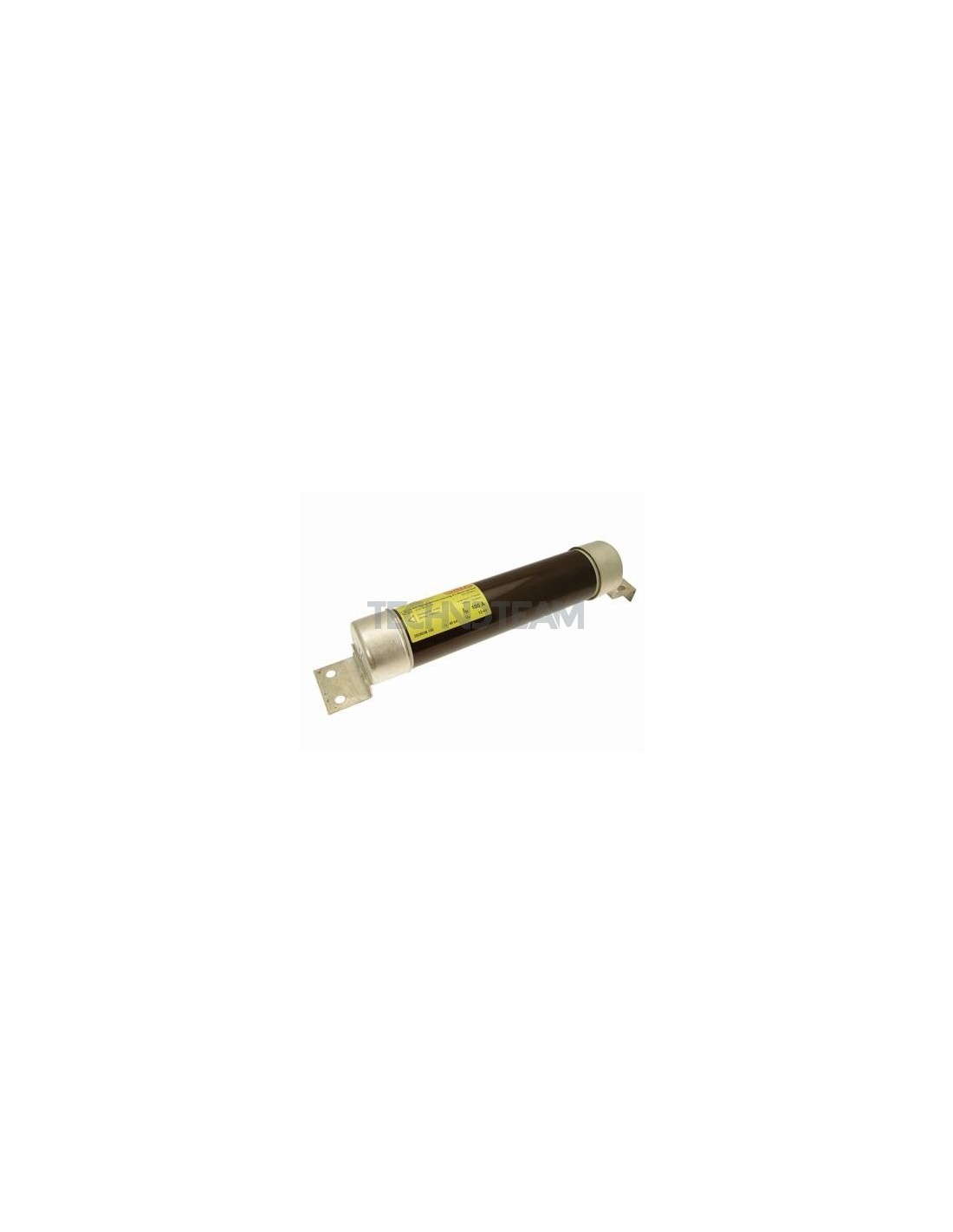

Fuse 12kV 76x359 back-up TA3 125A
Fuse 12kV 76x359 back-up TA3 125A

Fuse 12kV 76x359 back-up TA3 125A

Reference: 3025036.125.0  -  Manufacturer: SIBA
€508.25 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
125
Rated Voltage Un AC (V)
12000
Applicable standards
IEC
Fuse Dimension (mm)
76x359
Melting I²t value (A²s)
81000
Fuse Connection/Terminal type
BS
Voltage of total clearing I2t test
12000
Total clearing I²t @Un AC (A²s)
241000
Rated breaking capacity I1 AC (kA)
40000
Weight (gr)
4200
