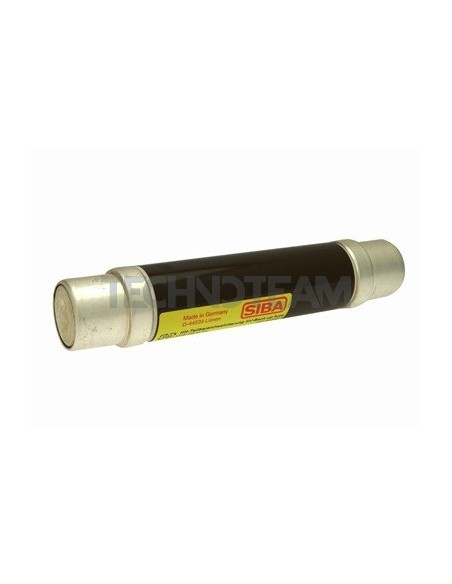

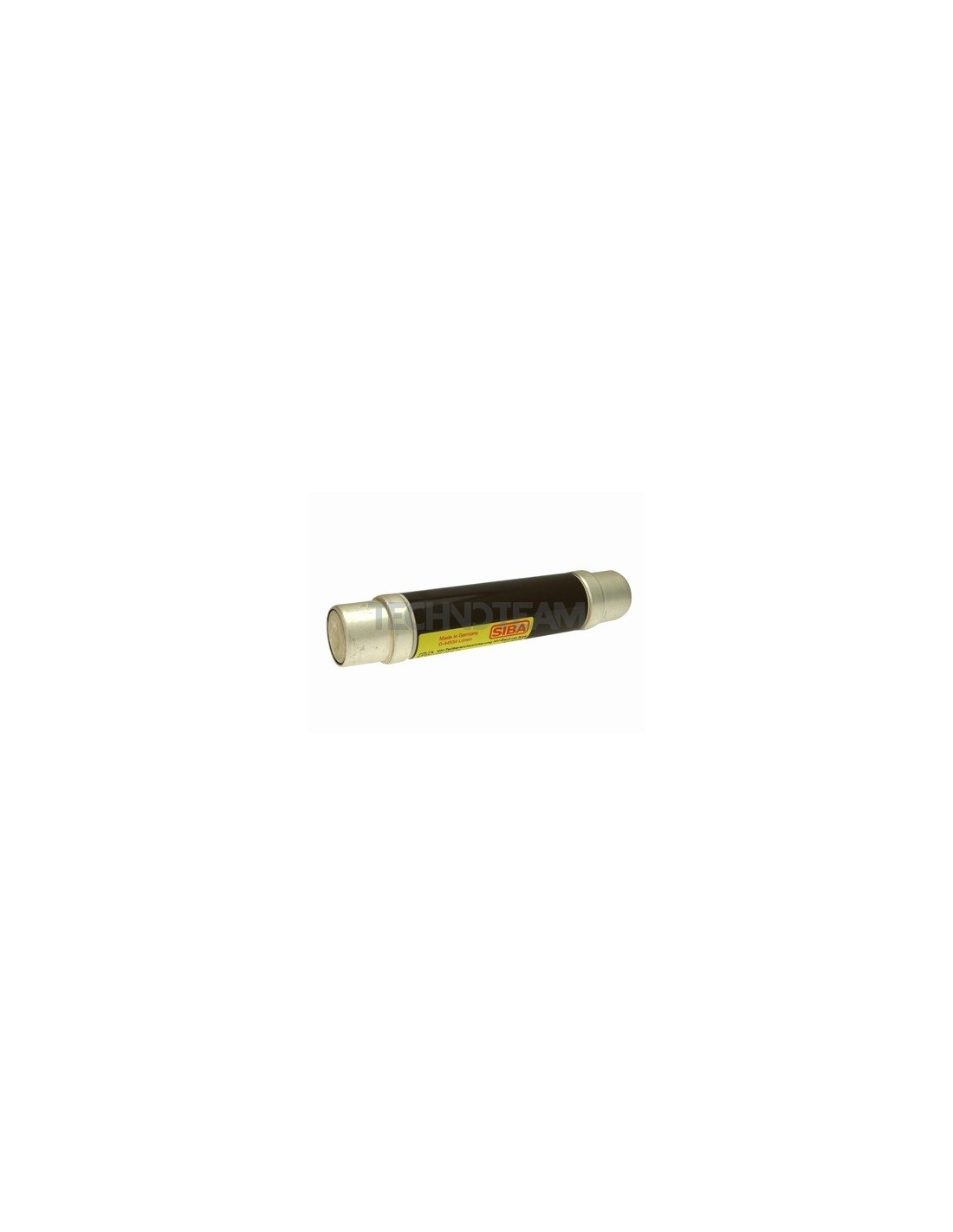

Fuse 17,5kV 53x192 back-up with striker 10A 80N
Fuse 17,5kV 53x192 back-up with striker 10A 80N

Fuse 17,5kV 53x192 back-up with striker 10A 80N

Reference: 3017913.10.0  -  Manufacturer: SIBA
€226.66 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
10
Rated Voltage Un AC (V)
17500
Applicable standards
IEC
Power loss (W)
36
Resistance (ohm)
0,256
Fuse Dimension (mm)
53x192
Melting I²t value (A²s)
68
Minimum breaking current (A)
34
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
15225
Total clearing I²t @Un AC (A²s)
680
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
1200
Ask for more information
