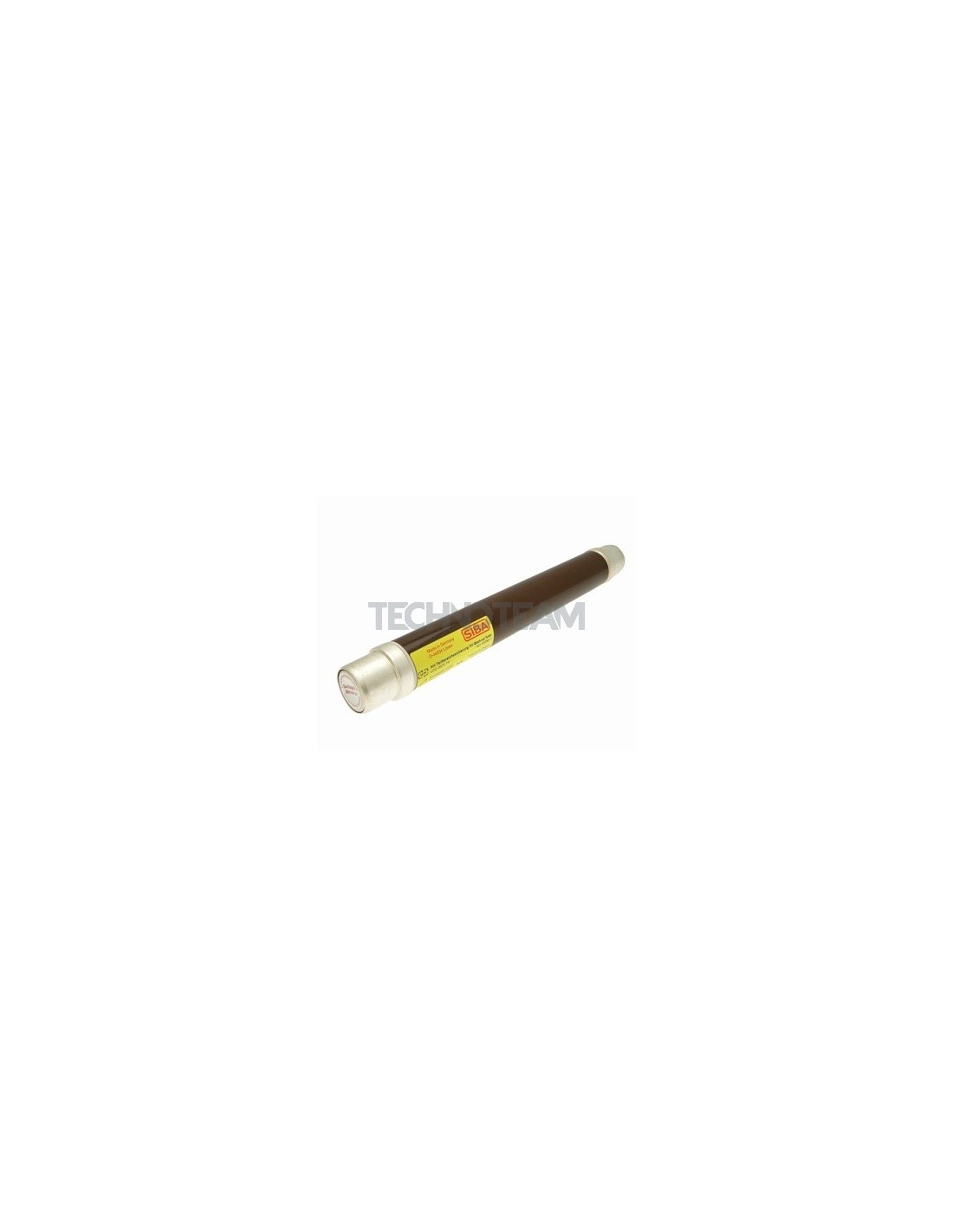

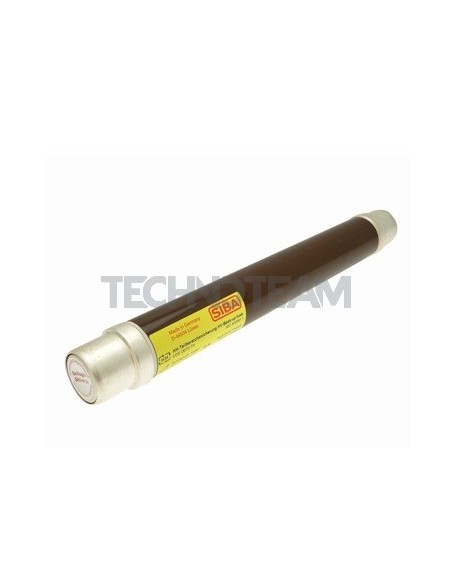

Fuse 17,5kV 53x367 back-up with striker 2,5A 80N
Fuse 17,5kV 53x367 back-up with striker 2,5A 80N

Fuse 17,5kV 53x367 back-up with striker 2,5A 80N

Reference: 3017613.2,5.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
HH Back up
Rated current In (A)
2,5
Rated Voltage Un AC (V)
17500
Applicable standards
IEC
Power loss (W)
12
Resistance (ohm)
1,4
Fuse Dimension (mm)
53x367
Melting I²t value (A²s)
7,2
Minimum breaking current (A)
20
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
15225
Total clearing I²t @Un AC (A²s)
24
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
1980
