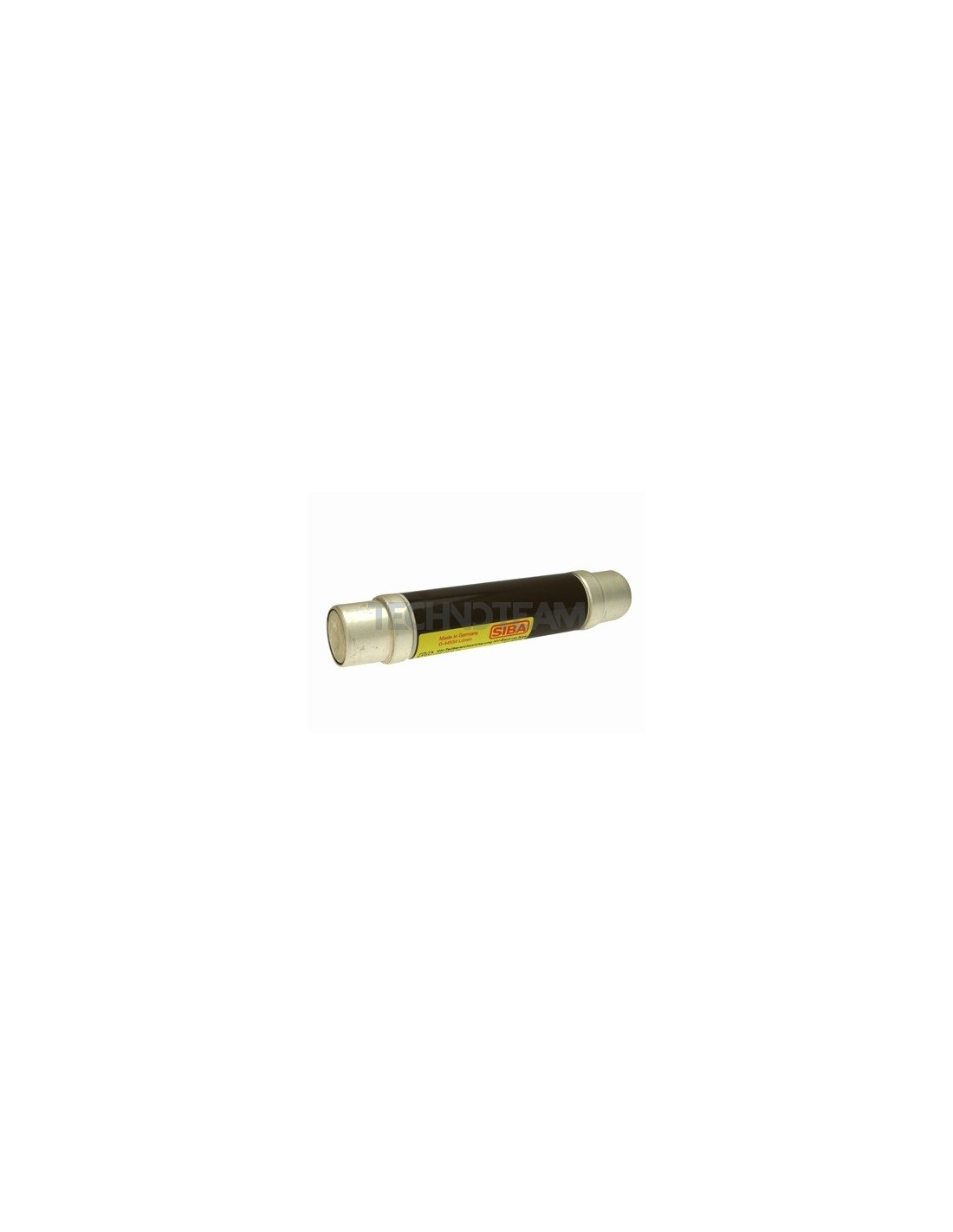

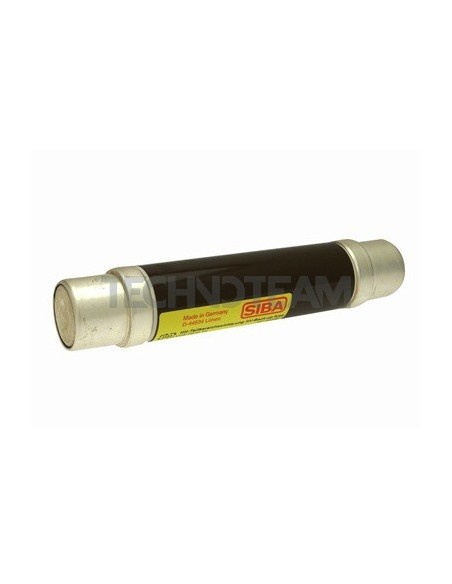

Fuse DIN-VT 12kV 53x192 without striker 3,15A
Fuse DIN-VT 12kV 53x192 without striker 3,15A

Fuse DIN-VT 12kV 53x192 without striker 3,15A

Reference: 3011911.3,15.0  -  Manufacturer: SIBA
€498.73 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
3,15
Rated Voltage Un AC (V)
12000
Applicable standards
IEC
Power loss (W)
9,6
Resistance (ohm)
0,7
Fuse Dimension (mm)
53x192
Melting I²t value (A²s)
17
Minimum breaking current (A)
24
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
10440
Total clearing I²t @Un AC (A²s)
48
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
1200
Ask for more information
