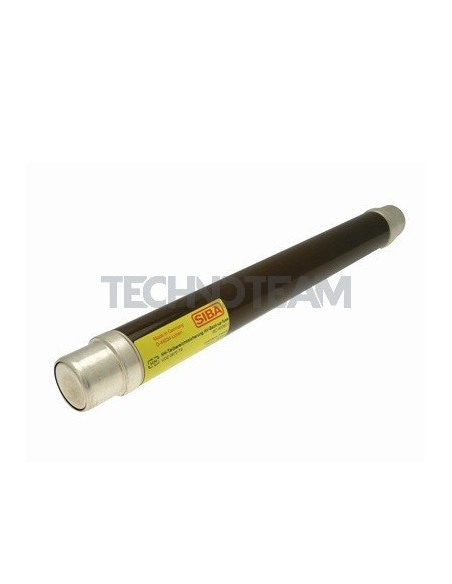

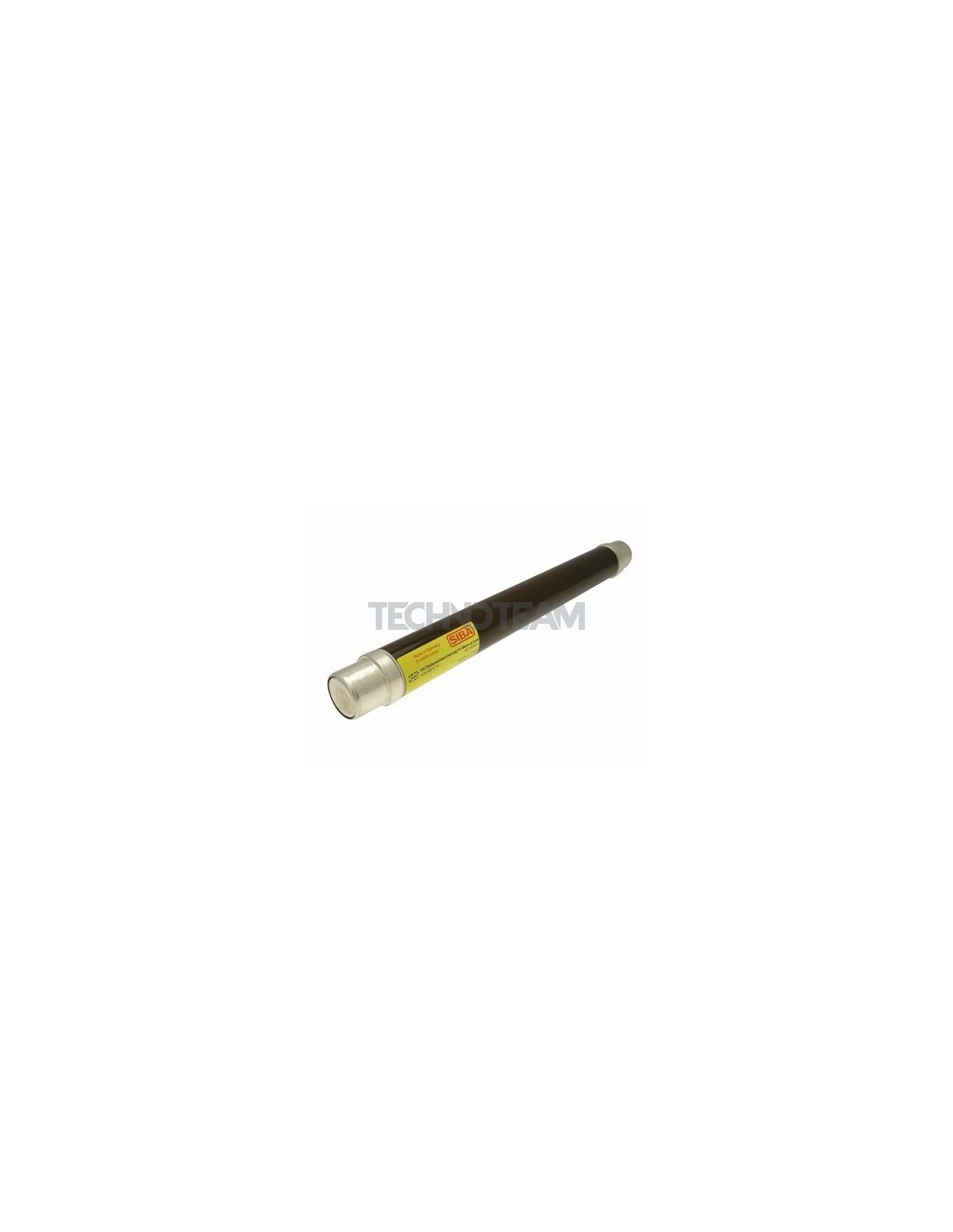

Fuse Motors DIN-ANSI 7,2kV 53x442 70A
Fuse Motors DIN-ANSI 7,2kV 53x442 70A

Fuse Motors DIN-ANSI 7,2kV 53x442 70A

Reference: 3010855.2R.0  -  Manufacturer: SIBA
€1,559.48 /pc VAT excl.

Product Details

Class
HH Motors
Rated current In (A)
70
Rated Voltage Un AC (V)
7200
Applicable standards
IEC
Power loss (W)
63
R-Rating
2
Fuse Dimension (mm)
53x442
Melting I²t value (A²s)
5400
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
7200
Total clearing I²t @Un AC (A²s)
24400
Rated breaking capacity I1 AC (kA)
5000
Weight (gr)
5600
