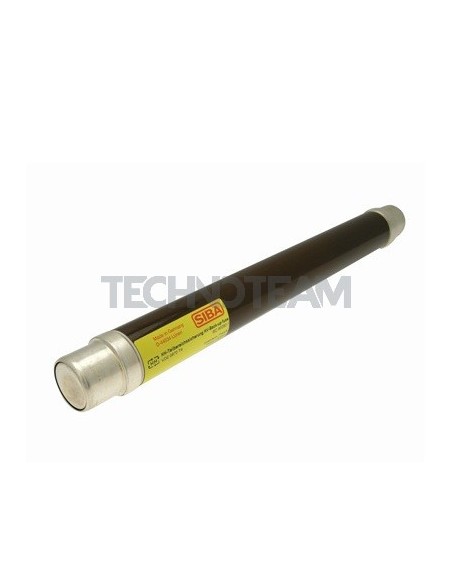

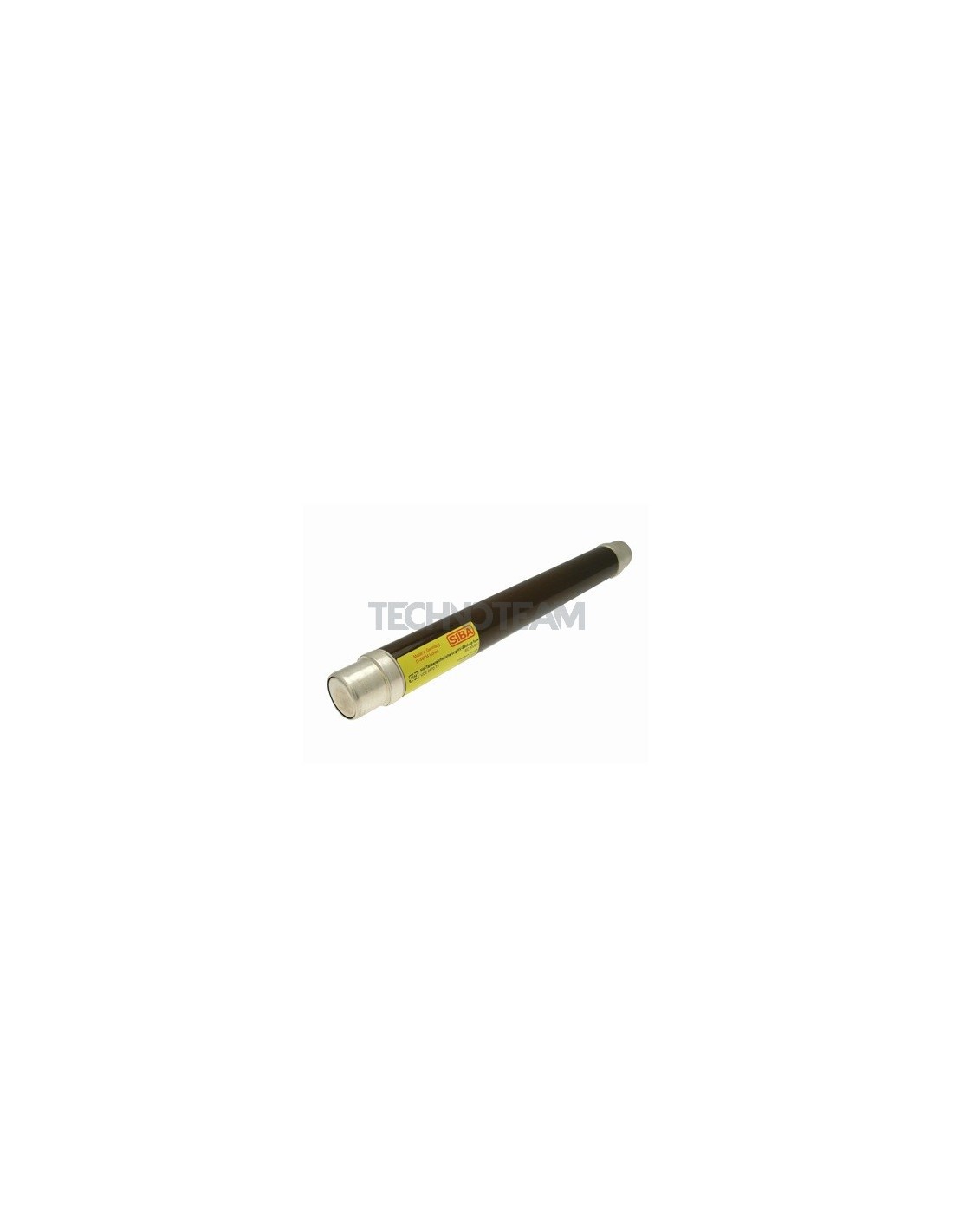

Fuse 12kV 53x442 back-up with striker 2A 80N
Fuse 12kV 53x442 back-up with striker 2A 80N

Fuse 12kV 53x442 back-up with striker 2A 80N

Reference: 3010113.2.0  -  Manufacturer: SIBA
€207.77 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
2
Rated Voltage Un AC (V)
6000
Applicable standards
IEC
Power loss (W)
8.2
Resistance (ohm)
1,57
Fuse Dimension (mm)
53x442
Melting I²t value (A²s)
3,2
Minimum breaking current (A)
16
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
5220
Total clearing I²t @Un AC (A²s)
9,8
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
2300
