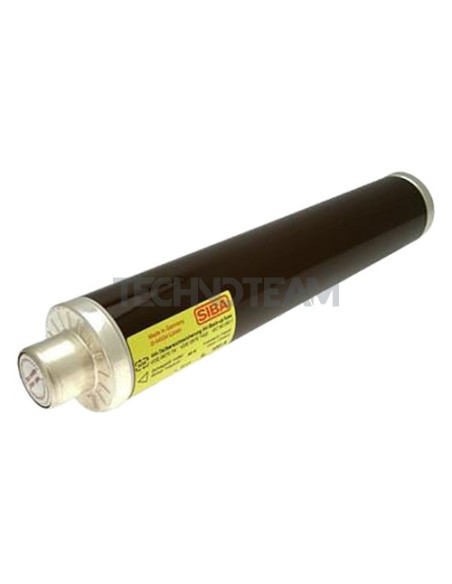

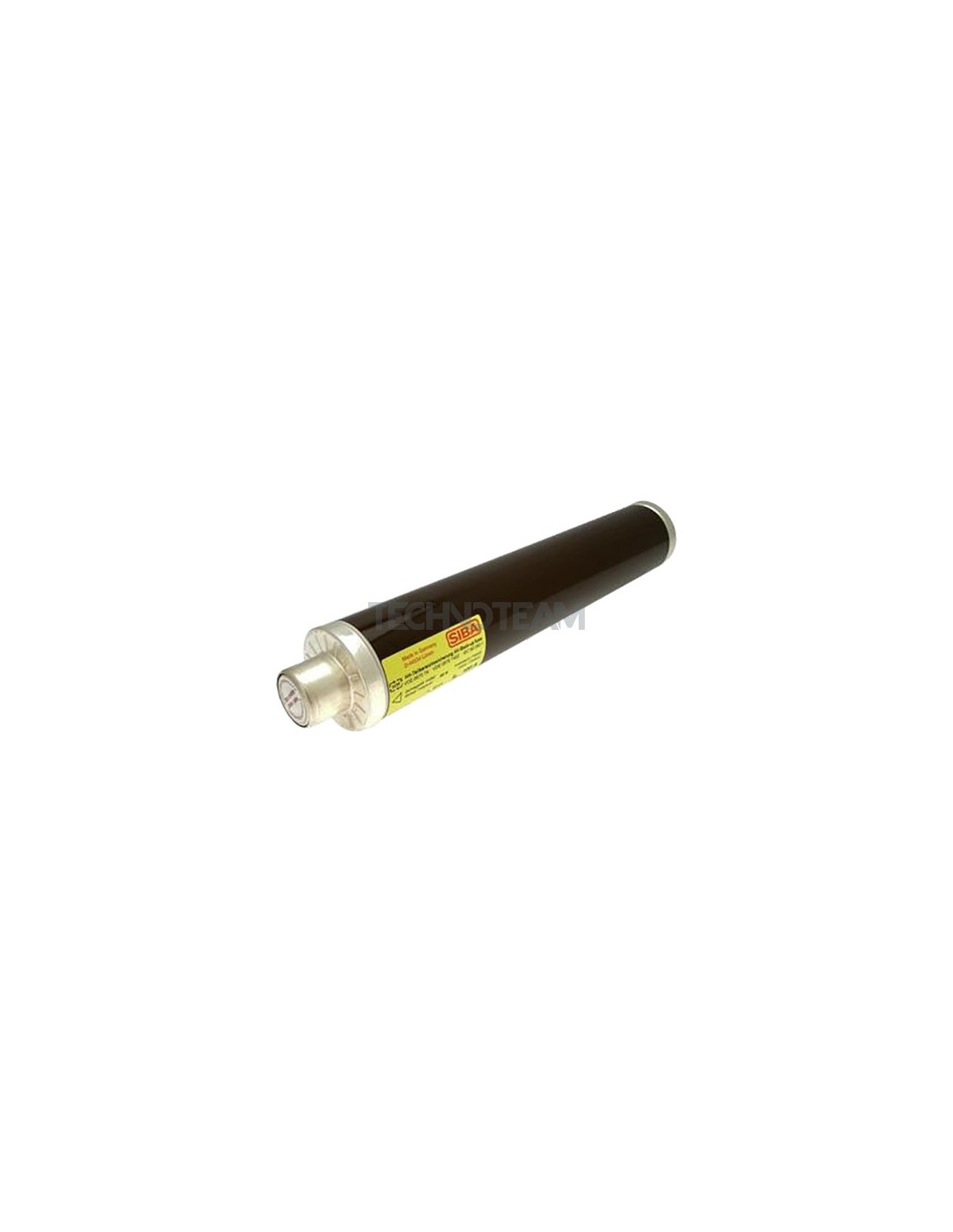

Fuse 24kV 85x442 general purpose with striker 31,5A 80N
Fuse 24kV 85x442 general purpose with striker 31,5A 80N

Fuse 24kV 85x442 general purpose with striker 31,5A 80N

Reference: 3002293.31,5.0  -  Manufacturer: SIBA
€522.09 /pc VAT excl.

Product Details

Class
HH G P
Rated current In (A)
31,5
Rated Voltage Un AC (V)
24000
Applicable standards
IEC
Power loss (W)
54
Resistance (ohm)
41
Fuse Dimension (mm)
85x442
Melting I²t value (A²s)
2100
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
24000
Total clearing I²t @Un AC (A²s)
18000
Rated breaking capacity I1 AC (kA)
40000
Weight (gr)
5600
Ask for more information
