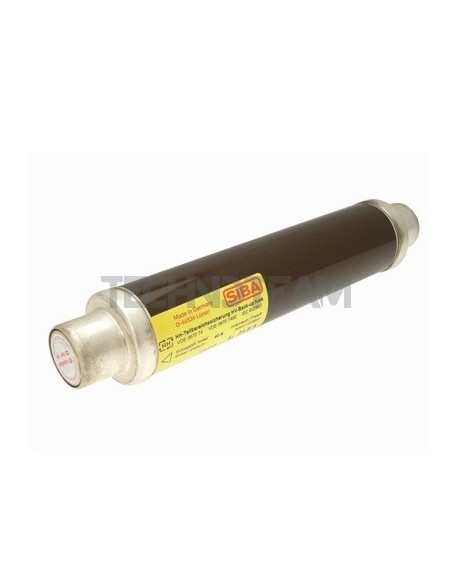

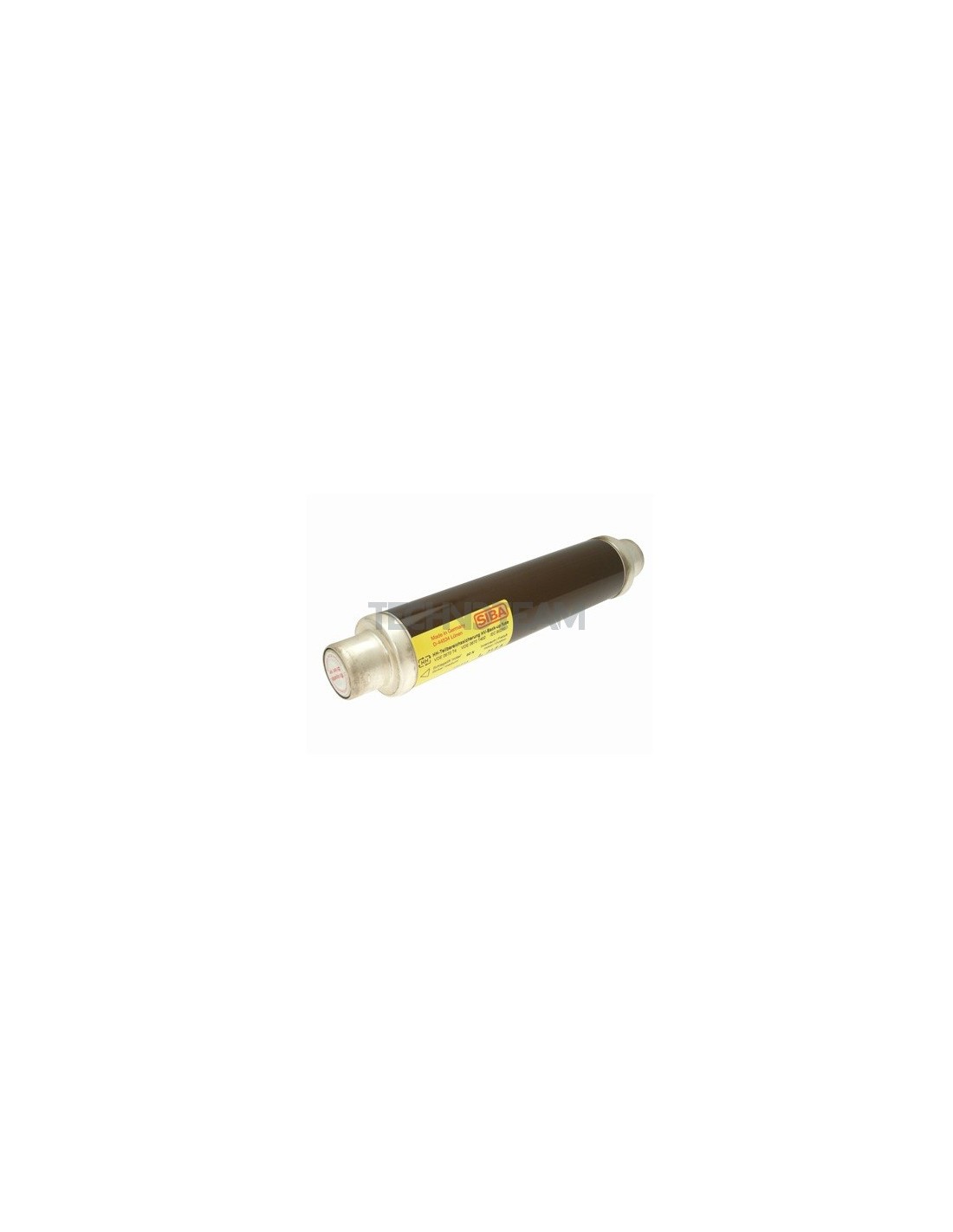

Fuse 12kV 67x292 general purpose with striker 40A 80N
Fuse 12kV 67x292 general purpose with striker 40A 80N

Fuse 12kV 67x292 general purpose with striker 40A 80N

Reference: 3001293.40.0  -  Manufacturer: SIBA
€400.44 /pc VAT excl.

Product Details

Class
HH G P
Rated current In (A)
40
Rated Voltage Un AC (V)
12000
Applicable standards
IEC
Power loss (W)
29
Resistance (ohm)
16
Fuse Dimension (mm)
67x292
Melting I²t value (A²s)
3400
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
12000
Total clearing I²t @Un AC (A²s)
28000
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
2530
