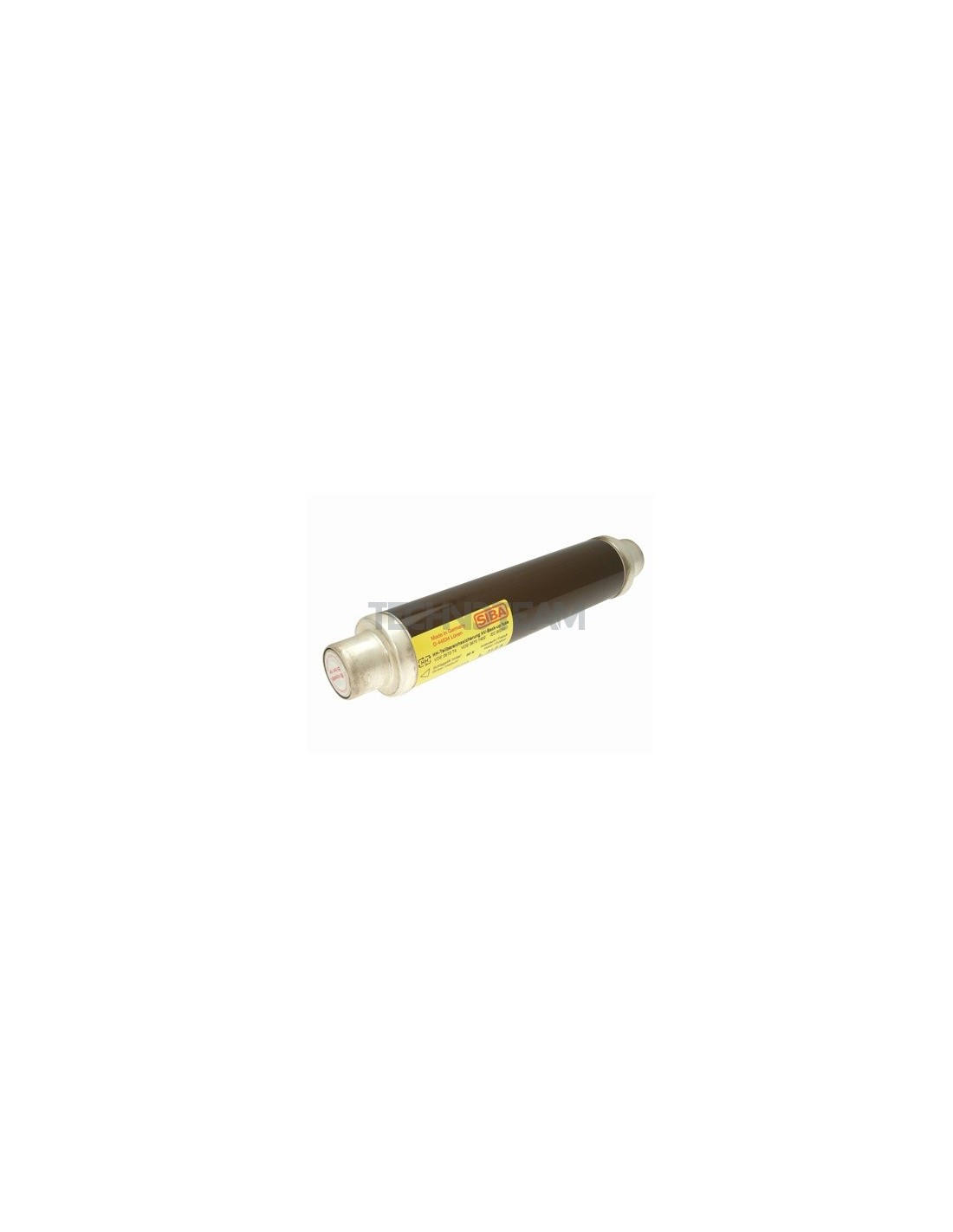

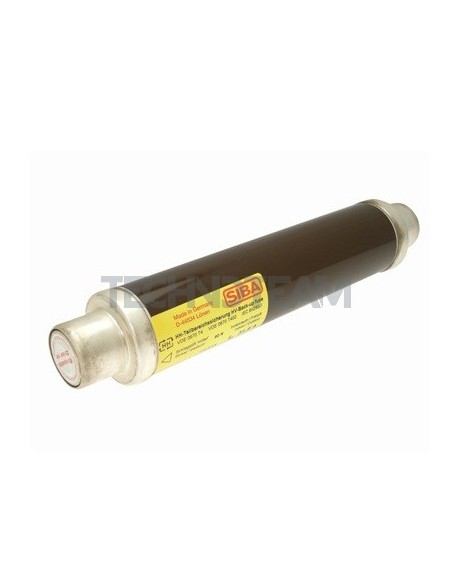

Fuse 12kV full range 67x292 with striker 50A 80N
Fuse 12kV full range 67x292 with striker 50A 80N

Fuse 12kV full range 67x292 with striker 50A 80N

Reference: 3001203.50.0  -  Manufacturer: SIBA
€632.65 /pc VAT excl.

Product Details

Class
HHD full
Rated current In (A)
50
Rated Voltage Un AC (V)
12000
Applicable standards
IEC
Power loss (W)
52
Resistance (ohm)
14
Fuse Dimension (mm)
67x292
Melting I²t value (A²s)
9200
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
10500
Total clearing I²t @Un AC (A²s)
41000
Rated breaking capacity I1 AC (kA)
80000
Weight (gr)
2560
