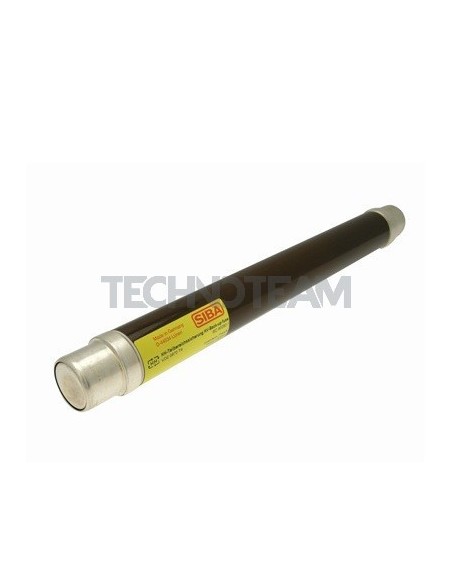

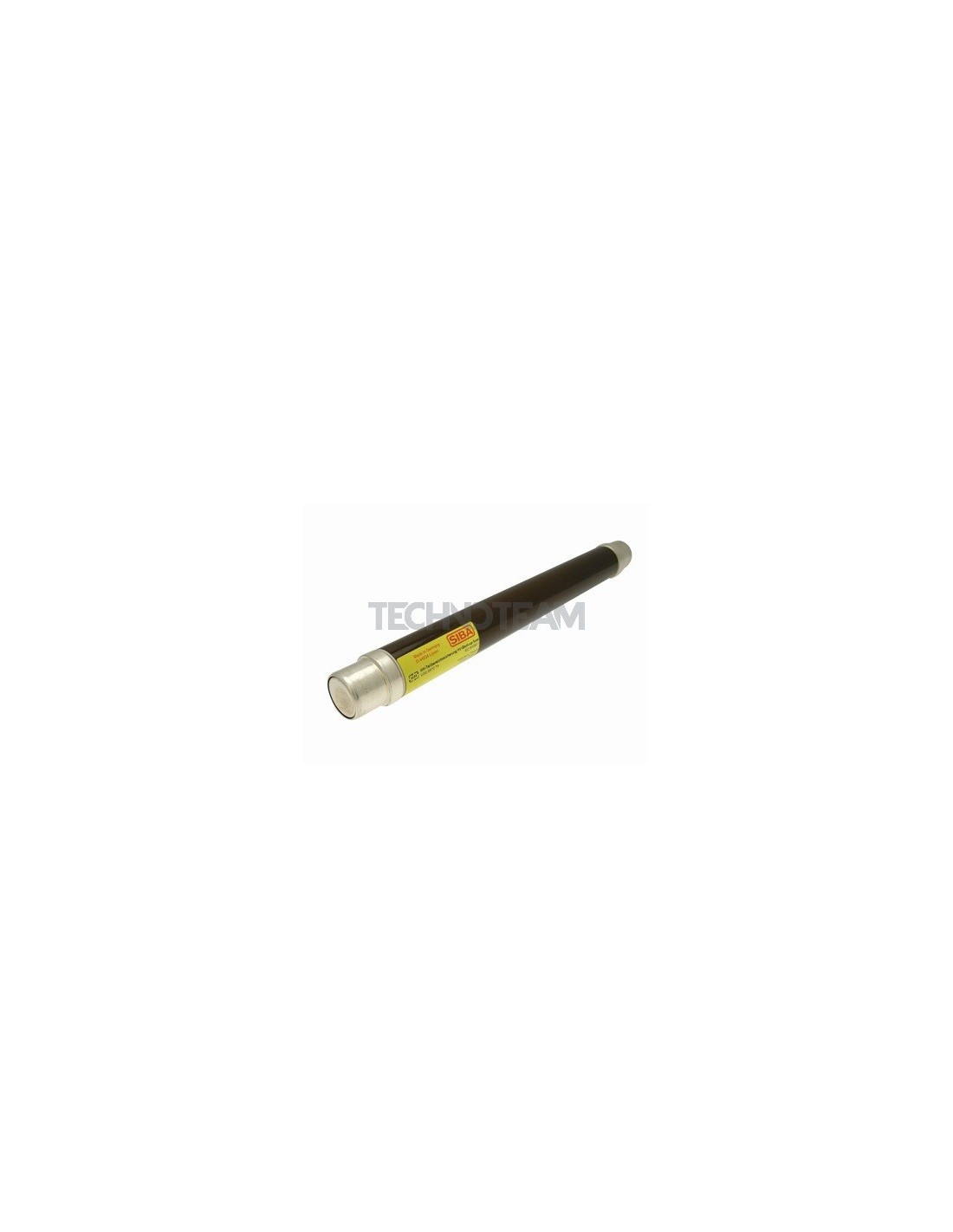

Fuse 24kV 53x442 back-up with striker 20A 80N
Fuse 24kV 53x442 back-up with striker 20A 80N

Fuse 24kV 53x442 back-up with striker 20A 80N

Reference: 3000613.20.0  -  Manufacturer: SIBA
€77.55 /pc VAT excl.

Product Details

Class
HH Back up
Rated current In (A)
20
Rated Voltage Un AC (V)
10000
Applicable standards
IEC
Power loss (W)
46
Resistance (ohm)
0,086
Fuse Dimension (mm)
53x442
Melting I²t value (A²s)
545
Minimum breaking current (A)
70
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
8700
Total clearing I²t @Un AC (A²s)
7000
Rated breaking capacity I1 AC (kA)
63000
Weight (gr)
2260
