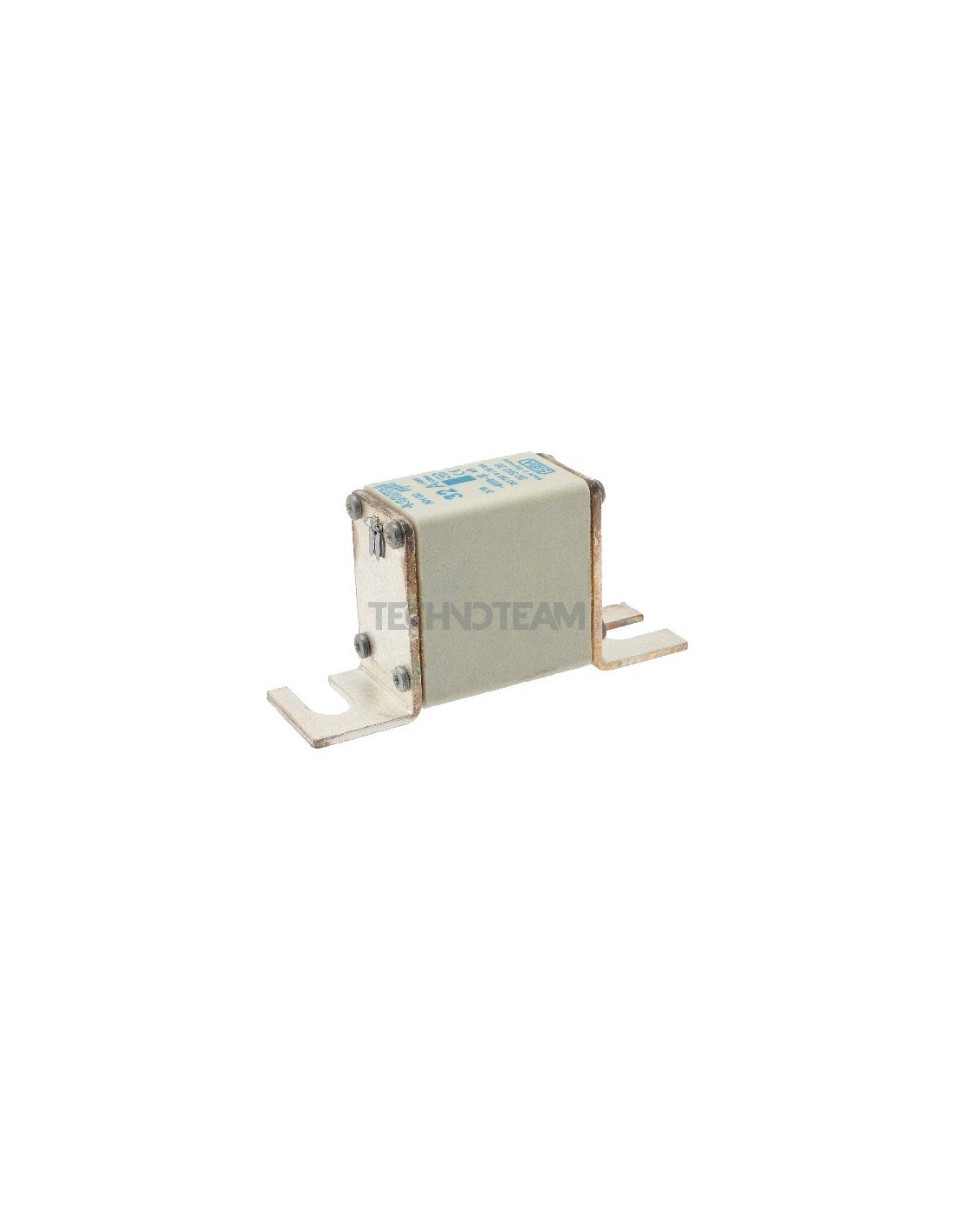

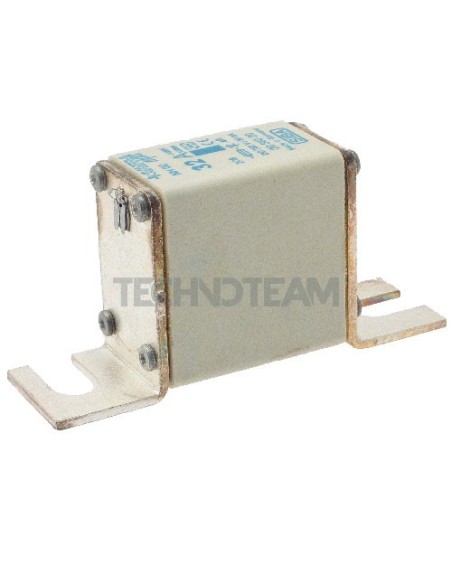

Fuse DIN00 80mm aR 1000VAC with indicator,w/o lug 224A
Fuse DIN00 80mm aR 1000VAC with indicator,w/o lug 224A

Fuse DIN00 80mm aR 1000VAC with indicator,w/o lug 224A

Reference: 2056020.224.0  -  Manufacturer: SIBA
€66.22 /pc VAT excl.

This product is only sold in boxes of 3 pcs

Product Details

Class
aR
Rated current In (A)
224
Rated Voltage Un AC (V)
1000
Dimension
00
Applicable standards
IEC
Power loss (W)
48
Melting I²t value (A²s)
5600
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
80
Voltage of total clearing I2t test
1000
Total clearing I²t @Un AC (A²s)
38000
Rated breaking capacity I1 AC (kA)
100000
Weight (gr)
240
