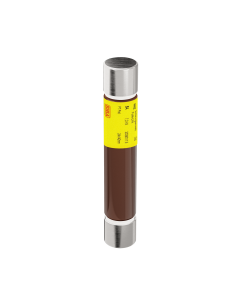

Fuse 7,2kV 24x142 VT protection 2A

Fuse 7,2kV 24x142 VT protection 2A

Reference 3038311.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5,8
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 3,2
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 9,9
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 173
Price List €69.18/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 2E

Fuse 7,2kV 24x142 VT protection ANSI 2E

Reference 3038311.2E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
E-Rating 2
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 4
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 38
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 200
Price List €58.46/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection 3A

Fuse 7,2kV 24x142 VT protection 3A

Reference 3038311.3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 6.3
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 16,1
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 47,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 170
Price List €69.25/pc
Quantity
lock Datasheet
Fuse 7,2kV 24x142 VT protection ANSI 3E

Fuse 7,2kV 24x142 VT protection ANSI 3E

Reference 3038311.3E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 6
E-Rating 3
Fuse Dimension (mm) 24x142
Melting I²t value (A²s) 16
Fuse Connection/Terminal type BS
Voltage of total clearing I2t test 7200
Total clearing I²t @Un AC (A²s) 155
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 200
Price List €254.51/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 100A

Fuse 5,5kV capacitor protection 290x63,5 100A

Reference 3038426.100.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 100
Rated Voltage Un AC (V) 5500
Power loss (W) 60
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 33000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 189000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €389.72/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 125A

Fuse 5,5kV capacitor protection 290x63,5 125A

Reference 3038426.125.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 125
Rated Voltage Un AC (V) 5500
Power loss (W) 86
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 47000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 351000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2500
Price List €432.17/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 16A

Fuse 5,5kV capacitor protection 290x63,5 16A

Reference 3038426.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 5500
Power loss (W) 14
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 1800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2120
Price List €378.74/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 20A

Fuse 5,5kV capacitor protection 290x63,5 20A

Reference 3038426.20.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 20
Rated Voltage Un AC (V) 5500
Power loss (W) 15
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 640
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 4300
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €379.44/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 25A

Fuse 5,5kV capacitor protection 290x63,5 25A

Reference 3038426.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 5500
Power loss (W) 17
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1050
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 6700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2135
Price List €379.87/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 31,5A

Fuse 5,5kV capacitor protection 290x63,5 31,5A

Reference 3038426.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 5500
Power loss (W) 22
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2112
Price List €380.30/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 40A

Fuse 5,5kV capacitor protection 290x63,5 40A

Reference 3038426.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 5500
Power loss (W) 29
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2120
Price List €380.85/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 50A

Fuse 5,5kV capacitor protection 290x63,5 50A

Reference 3038426.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 5500
Power loss (W) 33
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2120
Price List €382.25/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 63A

Fuse 5,5kV capacitor protection 290x63,5 63A

Reference 3038426.63.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 63
Rated Voltage Un AC (V) 5500
Power loss (W) 41
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 10700
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 59400
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €383.76/pc
Quantity
lock Datasheet
Fuse 5,5kV capacitor protection 290x63,5 80A

Fuse 5,5kV capacitor protection 290x63,5 80A

Reference 3038426.80.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 80
Rated Voltage Un AC (V) 5500
Power loss (W) 46
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 21000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 126000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €387.34/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x359 screw US-UNC 1/2 for capacitor 200A

Fuse 5,5kV 63,5x359 screw US-UNC 1/2 for capacitor 200A

Reference 3038526.200.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 200
Rated Voltage Un AC (V) 5500
Power loss (W) 132
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 230000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 704000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2925
Price List €644.07/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 10A

Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 10A

Reference 3038626.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 38
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 75
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 500
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2800
Price List €396.04/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 16A

Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 16A

Reference 3038626.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 37
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 1800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2800
Price List €404.86/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 20A

Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 20A

Reference 3038626.20.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 20
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 40
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 640
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 4300
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2800
Price List €398.62/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 25A

Fuse 15,5kV 63,5x254 screw US-UNC 1/2 for capacitors 25A

Reference 3038626.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 56
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1050
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 6700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2800
Price List €398.62/pc
Quantity
lock Datasheet
Fuse 17,5kV 53x442mm ANSI with stricker. 3E 80N

Fuse 17,5kV 53x442mm ANSI with stricker. 3E 80N

Reference 3040063.3E.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 17500
Applicable standards IEC
E-Rating 3
Fuse Dimension (mm) 85x442
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 17500
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2280
Price List €335.00/pc
Quantity
lock Datasheet
Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 40A

Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 40A

Reference 3039026.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 125
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2880
Price List €543.62/pc
Quantity
lock Datasheet
Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 50A

Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 50A

Reference 3039026.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 151
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2880
Price List €548.96/pc
Quantity
lock Datasheet
Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 31,5A

Fuse 23kV 63,5x359 screw 1/2 UNC capacitor protection 31,5A

Reference 3039026.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 95
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2880
Price List €546.69/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x290 screw M16 capacitor protection 125A

Fuse 5,5kV 63,5x290 screw M16 capacitor protection 125A

Reference 3040426.125.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 125
Rated Voltage Un AC (V) 5500
Power loss (W) 86
Fuse Dimension (mm) 290x63,5
Fixing dimensions M16
Melting I²t value (A²s) 47000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 351000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2500
Price List €432.09/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
