Fuse 15,5kV 290x63,5 screw M16 capacitor protection 40A

Fuse 15,5kV 290x63,5 screw M16 capacitor protection 40A

Reference 3040726.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 84
Fuse Dimension (mm) 63,5x254
Fixing dimensions M16
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2800
Price List €423.47/pc
Quantity
lock Datasheet
Fuse 15,5kV 395x63,5 screw M16 capacitor protection 50A

Fuse 15,5kV 395x63,5 screw M16 capacitor protection 50A

Reference 3040826.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 1550
Applicable standards IEC
Power loss (W) 101
Fuse Dimension (mm) 63,5x395
Fixing dimensions M16
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2900
Price List €514.94/pc
Quantity
lock Datasheet
Fuse 15,5kV 395x63,5 screw M16 capacitor protection 80A

Fuse 15,5kV 395x63,5 screw M16 capacitor protection 80A

Reference 3040826.80.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 80
Rated Voltage Un AC (V) 1550
Applicable standards IEC
Power loss (W) 137
Fuse Dimension (mm) 63,5x395
Fixing dimensions M16
Melting I²t value (A²s) 21000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 126000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2900
Price List €527.62/pc
Quantity
lock Datasheet
Fuse 23kV 395x63,5 screw M16 capacitor protection 31,5A

Fuse 23kV 395x63,5 screw M16 capacitor protection 31,5A

Reference 3040926.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 23000
Applicable standards IEC
Power loss (W) 95
Fuse Dimension (mm) 63,5x359
Fixing dimensions M16
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 23000
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2940
Price List €594.65/pc
Quantity
lock Datasheet

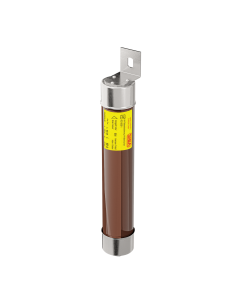

Fuse 23kV 395x63,5 screw M16 capacitor protection 40A

Fuse 23kV 395x63,5 screw M16 capacitor protection 40A

Reference 3040926.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 23000
Applicable standards IEC
Power loss (W) 125
Fuse Dimension (mm) 63,5x359
Fixing dimensions M16
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 23000
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2931
Price List €599.28/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x254 capacitor protection 25A

Fuse 5,5kV 63,5x254 capacitor protection 25A

Reference 3041026.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 5500
Applicable standards IEC
Power loss (W) 17
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1050
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 6700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2160
Price List €379.96/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x254 capacitor protection 31,5A

Fuse 5,5kV 63,5x254 capacitor protection 31,5A

Reference 3041026.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 5500
Applicable standards IEC
Power loss (W) 22
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2220
Price List €345.04/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x254 capacitor protection 50A

Fuse 5,5kV 63,5x254 capacitor protection 50A

Reference 3041026.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 5500
Applicable standards IEC
Power loss (W) 33
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2160
Price List €382.66/pc
Quantity
lock Datasheet
Fuse 5,5kV 63,5x254 capacitor protection 80A

Fuse 5,5kV 63,5x254 capacitor protection 80A

Reference 3041026.80.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 80
Rated Voltage Un AC (V) 5500
Applicable standards IEC
Power loss (W) 46
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 21000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5500
Total clearing I²t @Un AC (A²s) 126000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2160
Product available on request Ask for more information
Fuse 8,3kV 63,5x254 capacitor protection 16A

Fuse 8,3kV 63,5x254 capacitor protection 16A

Reference 3041126.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 22
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 1800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Price List €425.58/pc
Quantity
lock Datasheet
Fuse 8,3kV 63,5x254 capacitor protection 25A

Fuse 8,3kV 63,5x254 capacitor protection 25A

Reference 3041126.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 28
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1050
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 6700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2100
Product available on request Ask for more information
Fuse 8,3kV 63,5x254 capacitor protection 31,5A

Fuse 8,3kV 63,5x254 capacitor protection 31,5A

Reference 3041126.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 35
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2160
Price List €428.39/pc
Quantity
lock Datasheet
Fuse 8,3kV 63,5x254 capacitor protection 40A

Fuse 8,3kV 63,5x254 capacitor protection 40A

Reference 3041126.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 45
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2160
Price List €429.71/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 capacitor protection 31,5A

Fuse 15,5kV 63,5x254 capacitor protection 31,5A

Reference 3041426.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 65
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2220
Price List €409.08/pc
Quantity
lock Datasheet
Fuse 23kV 63,5x359 capacitor protection 10A

Fuse 23kV 63,5x359 capacitor protection 10A

Reference 3041626.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 23000
Applicable standards IEC
Power loss (W) 57
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 75
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 23000
Total clearing I²t @Un AC (A²s) 500
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2900
Price List €542.66/pc
Quantity
lock Datasheet
Fuse 23kV 395x63,5 screw M16 capacitor protection 50A

Fuse 23kV 395x63,5 screw M16 capacitor protection 50A

Reference 3040926.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 23000
Applicable standards IEC
Power loss (W) 151
Fuse Dimension (mm) 63,5x359
Fixing dimensions M16
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 23000
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2950
Price List €600.32/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x359 capacitor protection 80A

Fuse 15,5kV 63,5x359 capacitor protection 80A

Reference 3041526.80.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 80
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 137
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 21000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 126000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2980
Price List €557.00/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x359 capacitor protection 63A

Fuse 15,5kV 63,5x359 capacitor protection 63A

Reference 3041526.63.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 63
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 106
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 10700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 59400
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2750
Price List €549.19/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x359 capacitor protection 50A

Fuse 15,5kV 63,5x359 capacitor protection 50A

Reference 3041526.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 101
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2750
Price List €542.66/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 capacitor protection 40A

Fuse 15,5kV 63,5x254 capacitor protection 40A

Reference 3041426.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 84
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 2900
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 17100
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2220
Price List €415.98/pc
Quantity
lock Datasheet
Fuse 8,3kV 63,5x359 capacitor protection 50A

Fuse 8,3kV 63,5x359 capacitor protection 50A

Reference 3041226.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 52
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 5700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 29700
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €475.05/pc
Quantity
lock Datasheet
Fuse 8,3kV 63,5x359 capacitor protection 63A

Fuse 8,3kV 63,5x359 capacitor protection 63A

Reference 3041226.63.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 63
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 64
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 10700
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 59400
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €477.69/pc
Quantity
lock Datasheet
Fuse 15,5kV 63,5x254 capacitor protection 10A

Fuse 15,5kV 63,5x254 capacitor protection 10A

Reference 3041426.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 15500
Applicable standards IEC
Power loss (W) 38
Fuse Dimension (mm) 63,5x254
Melting I²t value (A²s) 75
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 15500
Total clearing I²t @Un AC (A²s) 500
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2220
Price List €371.35/pc
Quantity
lock Datasheet
Fuse 8,3kV 63,5x359 capacitor protection 125A

Fuse 8,3kV 63,5x359 capacitor protection 125A

Reference 3041226.125.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 125
Rated Voltage Un AC (V) 8300
Applicable standards IEC
Power loss (W) 136
Fuse Dimension (mm) 63,5x359
Melting I²t value (A²s) 47000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8300
Total clearing I²t @Un AC (A²s) 351000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2680
Price List €550.69/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
