Fuse 12kV 53x292 back-up with striker 3,15A 80N

Reference 3000413.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 9,6
Resistance (ohm) 0,7
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €67.28/pc
Quantity

Fuse 12kV 53x292 back-up with striker 31,5A 80N

Reference 3000413.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 36
Resistance (ohm) 0,029
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 1400
Minimum breaking current (A) 110
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 10800
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €88.68/pc
Quantity

Fuse 24kV 53x442 back-up with striker 16A 80N

Reference 3000613.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 57
Resistance (ohm) 0,169
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 3200
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2320
Price List €74.70/pc
Quantity

Fuse 24kV 53x442 TV with striker 2,5A 80N

Reference 3000613.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 16
Resistance (ohm) 1,92
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 26
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2300
Price List €65.88/pc
Quantity

Fuse 24kV 53x442 TV with striker 2A 80N

Reference 3000613.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 15
Resistance (ohm) 2,85
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2280
Price List €73.01/pc
Quantity

Fuse 24kV 53x442 back-up with striker 20A 80N

Reference 3000613.20.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 20
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 46
Resistance (ohm) 0,086
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 545
Minimum breaking current (A) 70
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 7000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2260
Price List €76.67/pc
Quantity

Fuse 24kV 53x442 back-up with striker 25A 80N

Reference 3000613.25.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 25
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 56
Resistance (ohm) 0,066
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 920
Minimum breaking current (A) 90
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 11000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2325
Price List €89.59/pc
Quantity

Fuse 12kV 53x292 back-up with striker 4A 80N

Reference 3000413.4.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 4
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 12
Resistance (ohm) 0,52
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 31
Minimum breaking current (A) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €75.40/pc
Quantity

Fuse 12kV 53x292 back-up with striker 40A 80N

Reference 3000413.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 53
Resistance (ohm) 0,022
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 2500
Minimum breaking current (A) 140
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 19000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €92.93/pc
Quantity

Fuse 12kV 53x292 back-up with striker 2A 80N

Reference 3000413.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 8.2
Resistance (ohm) 1,57
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €67.17/pc
Quantity

Fuse 24kV 53x442 TV with striker 3,15A 80N

Reference 3000613.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 18
Resistance (ohm) 1,3
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2283
Price List €65.88/pc
Quantity

Fuse 12kV 53x292 back-up with striker 2,5A 80N

Reference 3000413.2,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2,5
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 8,9
Resistance (ohm) 0,95
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 7,2
Minimum breaking current (A) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 23
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €67.22/pc
Quantity

Fuse 12kV 53x292 back-up with striker 16A 80N

Reference 3000413.16.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 16
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 34
Resistance (ohm) 0,092
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 140
Minimum breaking current (A) 56
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 2360
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €69.07/pc
Quantity

Fuse 24kV 53x442 back-up with striker 31,5A 80N

Reference 3000613.31,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 31,5
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 73
Resistance (ohm) 0,054
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 1400
Minimum breaking current (A) 110
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 16000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2400
Price List €99.62/pc
Quantity

Fuse 24kV 53x442 TV with striker 4A 80N

Reference 3000613.4.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 4
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 22
Resistance (ohm) 0,95
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 31
Minimum breaking current (A) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2280
Price List €73.93/pc
Quantity

Fuse 12kV 53x292 back-up with striker 10A 80N

Reference 3000413.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 26
Resistance (ohm) 0,189
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 68
Minimum breaking current (A) 34
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 1260
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €66.74/pc
Quantity

Fuse 12kV 53x292 back-up without striker 3,15A

Reference 3000411.3,15.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3,15
Rated Voltage Un AC (V) 12000
Applicable standards IEC
Power loss (W) 9,6
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 17
Minimum breaking current (A) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 12000
Total clearing I²t @Un AC (A²s) 48
Rated breaking capacity I1 AC (kA) 63000
Price List €77.18/pc
Quantity

Fuse 24kV 53x442 back-up with striker 40A 80N

Reference 3000613.40.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 40
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 109
Resistance (ohm) 0,043
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 2200
Minimum breaking current (A) 140
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 25000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2290
Price List €105.39/pc
Quantity

Fuse 24kV 53x442 TV with striker 5A 80N

Reference 3000613.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 15
Resistance (ohm) 0,806
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2270
Price List €448.74/pc
Quantity

Fuse 12kV 53x292 back-up without striker 2A

Reference 3000411.2.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 2
Rated Voltage Un AC (V) 12000
Applicable standards IEC
Power loss (W) 8.2
Resistance (ohm) 1,57
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 3,2
Minimum breaking current (A) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 10440
Total clearing I²t @Un AC (A²s) 9,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €103.01/pc
Quantity

Fuse 12kV 53x292 back-up no striker 1A

Reference 3000411.1.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 1
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 4,8
Resistance (ohm) 3,51
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 0,63
Minimum breaking current (A) 8
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 2,8
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €102.83/pc
Quantity

Fuse 24kV 53x442 TV with striker 3A 80N

Reference 3000613.3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 3
Rated Voltage Un AC (V) 24000
Applicable standards IEC
Fuse Dimension (mm) 53x442
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 20880
Rated breaking capacity I1 AC (kA) 630000
Weight (gr) 2280
Price List €65.88/pc
Quantity

Fuse 12kV full range 53x292 with striker 6,3A 80N

Reference 3000403.6,3.0 - Manufacturer SIBA
Class HHD full
Rated current In (A) 6,3
Rated Voltage Un AC (V) 12000
Applicable standards IEC
Power loss (W) 18
Resistance (ohm) 370
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 10500
Total clearing I²t @Un AC (A²s) 480
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1655
Price List €493.12/pc
Quantity

Fuse 24kV 53x442mm back up no temp lim.10A 120N

Reference 3000614.10.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 10
Rated Voltage Un AC (V) 24000
Power loss (W) 52
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 75
Minimum breaking current (A) 34
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 24000
Total clearing I²t @Un AC (A²s) 560
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2210
Price List €71.26/pc
Quantity

Fuse 24kV 53x442 back-up with striker 6,3A 80N

Reference 3000613.6,3.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 6,3
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 27
Resistance (ohm) 0,553
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 27
Minimum breaking current (A) 22
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 530
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2320
Price List €73.41/pc
Quantity

Fuse 24kV 53x442 back-up with striker 40A 80N

Reference 3000613.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 10000
Applicable standards IEC
Power loss (W) 117
Resistance (ohm) 0,028
Fuse Dimension (mm) 53x442
Melting I²t value (A²s) 4900
Minimum breaking current (A) 160
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 8700
Total clearing I²t @Un AC (A²s) 35000
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 2290
Price List €80.54/pc
Quantity

Fuse 12kV 53x292 back-up with striker 5A 80N

Reference 3000413.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 8,3
Resistance (ohm) 0,236
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1650
Price List €81.91/pc
Quantity

Fuse 12kV 53x292 back-up no striker 0,5A

Reference 3000411.0,5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 0,5
Rated Voltage Un AC (V) 6000
Applicable standards IEC
Power loss (W) 6,1
Resistance (ohm) 22,13
Fuse Dimension (mm) 53x292
Melting I²t value (A²s) 1,6
Minimum breaking current (A) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 5220
Total clearing I²t @Un AC (A²s) 5,9
Rated breaking capacity I1 AC (kA) 63000
Weight (gr) 1640
Price List €102.78/pc
Quantity

Fuse holder NH00M 1pole 1000V lockable contacts

Reference 2138902.0.0 - Manufacturer SIBA
Rated current In (A) 160
Rated Voltage Un AC (V) 1000
Dimension NH00M
Applicable standards IEC
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 1
Weight (gr) 310
Price List €244.71/pc
Quantity

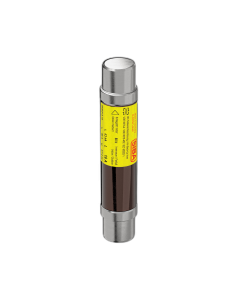

Fuse 7,2kV 53x192 back-up with striker 5A 80N

Reference 3000213.5.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 5
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 5
Resistance (ohm) 0,141
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 40
Minimum breaking current (A) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 125
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1000
Price List €57.18/pc
Quantity

Fuse 7,2kV 53x192 back-up with striker 50A 80N

Reference 3000213.50.0 - Manufacturer SIBA
Class HH Back up
Rated current In (A) 50
Rated Voltage Un AC (V) 7200
Applicable standards IEC
Power loss (W) 34
Resistance (ohm) 0,0096
Fuse Dimension (mm) 53x192
Melting I²t value (A²s) 4700
Minimum breaking current (A) 170
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 6264
Total clearing I²t @Un AC (A²s) 41700
Rated breaking capacity I1 AC (kA) 80000
Weight (gr) 1200
Price List €83.26/pc
Quantity

Fuse holder for SQB fuses size1-2-3 110mm1250A 1400V

Reference 2132302.0.0 - Manufacturer SIBA
Rated current In (A) 1250
Rated Voltage Un AC (V) 1400
Applicable standards IEC, UL
Max power dissipation (W) 110
Fixing dimensions M12
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Number of poles 1
Weight (gr) 1260
Price List €185.64/pc
Quantity

Fuse holder for square body fuses 000-00 80mm UL 600VDC 200A

Reference 2118928.0.0 - Manufacturer SIBA
Rated current In (A) 200
Applicable standards IEC, UL
Rated Voltage Un DC (V) 600
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 260
Price List €189.61/pc
Quantity

Fuse holder NH2 long metal/ceramic naval application

Reference 2123302.0.0 - Manufacturer SIBA
Rated current In (A) 425
Rated Voltage Un AC (V) 1000
Dimension NH2
Applicable standards IEC
Rated Voltage Un DC (V) 1200
Max power dissipation (W) 45
Fuse Connection/Terminal type NH knife
Number of poles 1
Weight (gr) 1630
Price List €995.05/pc
Quantity

Fuse base DIN000-00 80mm 600VDC UL+ cover 200A

Reference 2119028.0.0 - Manufacturer SIBA
Rated current In (A) 200
Applicable standards IEC, UL
Rated Voltage Un DC (V) 600
Max power dissipation (W) 34
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Number of poles 1
Weight (gr) 260
Price List €208.66/pc
Quantity
Product added to compare.
Product added to wishlist
