Fuse 7,2kV 63,5x254 F01 oiltight 20A

Reference 3013236.20.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	20
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	290
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	2900
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1780

Price List €218.43/pc

Quantity

lock Datasheet

Fuse 7,2kV 63,5x254 F01 oiltight 112A

Reference 3013236.112.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	112
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	28300
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	278000
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1780

Price List €264.51/pc

Quantity

lock Datasheet

Fuse 7,2kV 63,5x254 F01 oiltight 100A

Reference 3013236.100.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	100
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	22200
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	218500
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1780

Price List €262.60/pc

Quantity

lock Datasheet

Fuse 7,2kV 63,5x254 F01 oiltight 10A

Reference 3013236.10.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	10
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Fuse Dimension (mm)	63,5x254
Melting I²t value (A²s)	50
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	450
Rated breaking capacity I1 AC (kA)	40000
Weight (gr)	1780

Price List €217.59/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 6,3A 80N

Reference 3011913.6,3.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	6,3
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	15
Resistance (ohm)	0,302
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	27
Minimum breaking current (A)	22
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	890
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €109.41/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 5A 80N

Reference 3011913.5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	5
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	8,3
Resistance (ohm)	0,236
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	40
Minimum breaking current (A)	40
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	125
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €68.67/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 4A 80N

Reference 3011913.4.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	4
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	12
Resistance (ohm)	0,52
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	31
Minimum breaking current (A)	32
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	90
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €68.62/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 3,15A 80N

Reference 3011913.3,15.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	3,15
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	9,6
Resistance (ohm)	0,7
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	17
Minimum breaking current (A)	24
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	48
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €108.27/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 2A 80N

Reference 3011913.2.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	7
Resistance (ohm)	1,43
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	3,2
Minimum breaking current (A)	16
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	9,8
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €105.32/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 2,5A 80N

Reference 3011913.2,5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2,5
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	8,9
Resistance (ohm)	0,95
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	7,2
Minimum breaking current (A)	20
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	23
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €68.47/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 16A 80N

Reference 3011913.16.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	16
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	36
Resistance (ohm)	0,092
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	140
Minimum breaking current (A)	56
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	2360
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €110.91/pc

Quantity

lock Datasheet

Fuse 12kV 53x192 back-up with striker 10A 80N

Reference 3011913.10.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	10
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	25
Resistance (ohm)	0,189
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	68
Minimum breaking current (A)	34
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	1260
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1200

Price List €108.95/pc

Quantity

lock Datasheet

Fuse DIN-VT 12kV 53x192 without striker 6,3A

Reference 3011911.6,3.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	6,3
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Power loss (W)	17
Resistance (ohm)	0,302
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	27
Minimum breaking current (A)	22
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	10440
Total clearing I²t @Un AC (A²s)	460
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €108.52/pc

Quantity

lock Datasheet

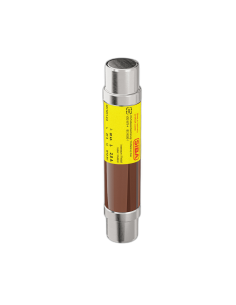

Fuse DIN-VT 12kV 53x192 without striker 3A

Reference 3011911.3.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	3
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Fuse Dimension (mm)	53x192
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	10440
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €87.36/pc

Quantity

lock Datasheet

Fuse DIN-VT 12kV 53x192 without striker 3,15A

Reference 3011911.3,15.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	3,15
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Power loss (W)	9,6
Resistance (ohm)	0,7
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	17
Minimum breaking current (A)	24
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	10440
Total clearing I²t @Un AC (A²s)	48
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €498.18/pc

Quantity

lock Datasheet

Fuse DIN-VT 12kV 53x192 without striker 2A

Reference 3011911.2.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	2
Rated Voltage Un AC (V)	12000
Applicable standards	IEC
Power loss (W)	8.2
Resistance (ohm)	1,57
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	3,2
Minimum breaking current (A)	16
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	10440
Total clearing I²t @Un AC (A²s)	9,8
Rated breaking capacity I1 AC (kA)	63000
Weight (gr)	1200

Price List €86.85/pc

Quantity

lock Datasheet

Fuse DIN-VT 12kV 53x192 no striker 1A

Reference 3011911.1.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	1
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	4,8
Resistance (ohm)	3,51
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	0,63
Minimum breaking current (A)	8
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	2,8
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1500

Price List €86.80/pc

Quantity

lock Datasheet

Fuse DIN-VT 12kV 53x192 no striker 0,5A

Reference 3011911.0,5.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	0,5
Rated Voltage Un AC (V)	6000
Applicable standards	IEC
Power loss (W)	6,1
Resistance (ohm)	22,13
Fuse Dimension (mm)	53x192
Melting I²t value (A²s)	1,6
Minimum breaking current (A)	5
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	5220
Total clearing I²t @Un AC (A²s)	5,9
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	1500

Price List €68.40/pc

Quantity

lock Datasheet

Fuse Motors DIN-ANSI 7,2kV double body 2x85x442

Reference 3011155.24R.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	450
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	236
R-Rating	24
Fuse Dimension (mm)	2x 85x442
Melting I²t value (A²s)	353000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	678000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	11480

Price List €857.61/pc

Quantity

lock Datasheet

Fuse Motors DIN-ANSI 7,2kV double body 2x85x442

Reference 3011155.18R.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	390
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	246
R-Rating	18
Fuse Dimension (mm)	2x 85x442
Melting I²t value (A²s)	402000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	1850000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	11240

Price List €1,071.87/pc

Quantity

lock Datasheet

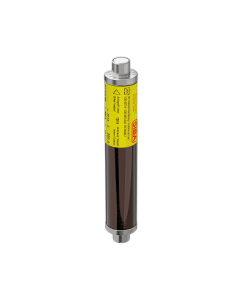

Fuse 7,2kV 85x442 back-up striker no temp.lim315ARC250

Reference 3011014.315.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	315
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	141
Resistance (ohm)	0,0015
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	551000
Minimum breaking current (A)	1260
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	6264
Total clearing I²t @Un AC (A²s)	1700000
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	5690

Price List €444.85/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 100A 80N

Reference 3011003.100.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	100
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	122
Resistance (ohm)	7,5
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	16200
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	59000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,103.08/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 112A 80N

Reference 3011003.112.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	112
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	112
Resistance (ohm)	5,6
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	28800
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	104000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,098.63/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 125A 80N

Reference 3011003.125.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	125
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	122
Resistance (ohm)	4,8
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	39200
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	141000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,151.30/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 140A 80N

Reference 3011003.140.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	140
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	122
Resistance (ohm)	3,9
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	61900
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	223000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,196.46/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 150A 80N

Reference 3011003.150.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	150
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	121
Resistance (ohm)	3,4
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	80000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	289000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,273.97/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 180A 80N

Reference 3011003.180.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	180
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	164
Resistance (ohm)	3,1
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	171000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	615000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,660.93/pc

Quantity

lock Datasheet

Fuse 7,2kV 87x442 full range with striker 71A 80N

Reference 3011003.71.0 - Manufacturer SIBA

Class	HHD full
Rated current In (A)	71
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	78
Resistance (ohm)	10,3
Fuse Dimension (mm)	87x442
Melting I²t value (A²s)	8400
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	31000
Rated breaking capacity I1 AC (kA)	80000

Price List €1,017.16/pc

Quantity

lock Datasheet

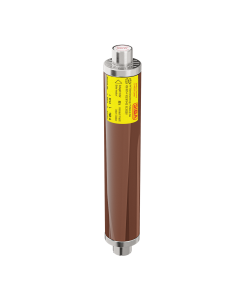

Fuse 7,2kV 85x442 back-up with striker 160A 80N

Reference 3011013.160.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	160
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	103
Resistance (ohm)	0,0029
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	78400
Minimum breaking current (A)	600
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	6264
Total clearing I²t @Un AC (A²s)	682000
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	5660

Price List €615.56/pc

Quantity

lock Datasheet

Fuse 7,2kV 85x442 back-up with striker no temp-limiting 160A

Reference 3011014.160.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	160
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Fuse Dimension (mm)	85x442
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	6264
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	5670

Price List €677.25/pc

Quantity

lock Datasheet

Fuse 7,2kV 85x442 back-up striker no temp.lim200A 120N

Reference 3011014.200.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	200
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	119
Resistance (ohm)	0,0021
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	281000
Minimum breaking current (A)	800
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	6264
Total clearing I²t @Un AC (A²s)	1200000
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	5670

Price List €712.69/pc

Quantity

lock Datasheet

Fuse 7,2kV 85x442 back-up striker no temp.lim250ARC225

Reference 3011014.250.0 - Manufacturer SIBA

Class	HH Back up
Rated current In (A)	250
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	131
Resistance (ohm)	0,0018
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	405000
Minimum breaking current (A)	1000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	6264
Total clearing I²t @Un AC (A²s)	1300000
Rated breaking capacity I1 AC (kA)	80000
Weight (gr)	5690

Price List €753.51/pc

Quantity

lock Datasheet

Fuse Motors DIN-ANSI 7,2kV 85x442 230A

Reference 3011055.12R.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	230
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	118
R-Rating	12
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	170000
Fuse Connection/Terminal type	Cylindrical
Total clearing I²t @Un AC (A²s)	764000
Rated breaking capacity I1 AC (kA)	5000
Weight (gr)	5660

Price List €927.06/pc

Quantity

lock Datasheet

Fuse DIN Motors 7,2kV 85x442 with striker 250A 120N

Reference 3011054.250.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	250
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	98
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	307000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	1480000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	5760

Price List €553.38/pc

Quantity

lock Datasheet

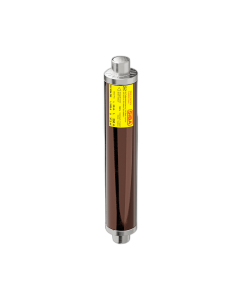

Fuse DIN Motors 7,2kV 85x442 with striker 315A 120N

Reference 3011054.315.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	315
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	120
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	627000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	3000000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	5760

Price List €675.87/pc

Quantity

lock Datasheet

Fuse DIN Motors 7,2kV 85x442 with striker 224A 120N

Reference 3011054.224.0 - Manufacturer SIBA

Class	HH Motors
Rated current In (A)	224
Rated Voltage Un AC (V)	7200
Applicable standards	IEC
Power loss (W)	103
Fuse Dimension (mm)	85x442
Melting I²t value (A²s)	144000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	7200
Total clearing I²t @Un AC (A²s)	694000
Rated breaking capacity I1 AC (kA)	50000
Weight (gr)	5760

Price List €547.58/pc

Quantity

lock Datasheet

14560 products

01
• • •
72
•
73
•
74
• • •
405

Home

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
