Fuse 14x51 terminals 63mm gR 690V 12A

Fuse 14x51 terminals 63mm gR 690V 12A

Reference 5012906.12.0 - Manufacturer SIBA
Class gR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3,1
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 8,1
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 75
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.32/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 16A

Fuse 14x51 terminals 63mm gR 690V 16A

Reference 5012906.16.0 - Manufacturer SIBA
Class gR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,7
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 11
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 115
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.47/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 20A

Fuse 14x51 terminals 63mm gR 690V 20A

Reference 5012906.20.0 - Manufacturer SIBA
Class gR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 21
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 190
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.68/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 25A

Fuse 14x51 terminals 63mm gR 690V 25A

Reference 5012906.25.0 - Manufacturer SIBA
Class gR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 7,6
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 340
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.73/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 32A

Fuse 14x51 terminals 63mm gR 690V 32A

Reference 5012906.32.0 - Manufacturer SIBA
Class gR
Rated current In (A) 32
Rated Voltage Un AC (V) 700
Applicable standards IEC, UL
Power loss (W) 9.5
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 63
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 620
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €17.14/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 80mm gR 690V 12A

Fuse 14x51 terminals 80mm gR 690V 12A

Reference 5013206.12.0 - Manufacturer SIBA
Class gR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 8,1
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 75
Weight (gr) 30
Price List €141.69/pc
Quantity
Fuse 14x51 gR 690V/700V UL with striker 12A

Fuse 14x51 gR 690V/700V UL with striker 12A

Reference 5012606.12.0 - Manufacturer SIBA
Class gR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 3,1
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 8,1
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 75
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 20
Price List €11.13/pc
Quantity
lock Datasheet
Fuse 22x58 gR 690V UL 10A

Fuse 22x58 gR 690V UL 10A

Reference 5014006.10.0 - Manufacturer SIBA
Class gR
Rated current In (A) 10
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4
Fuse Dimension (mm) 22x58
Melting I²t value (A²s) 6
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 30
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 60
Price List €20.33/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 80mm gR 690V 8A

Fuse 14x51 terminals 80mm gR 690V 8A

Reference 5013206.8.0 - Manufacturer SIBA
Class gR
Rated current In (A) 8
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 5,1
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 28
Weight (gr) 30
Price List €141.38/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 6A

Fuse 14x51 terminals 80mm gR 690V 6A

Reference 5013206.6.0 - Manufacturer SIBA
Class gR
Rated current In (A) 6
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 2,9
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 18
Weight (gr) 30
Price List €141.33/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 50A

Fuse 14x51 terminals 80mm gR 690V 50A

Reference 5013206.50.0 - Manufacturer SIBA
Class gR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 1900
Weight (gr) 30
Price List €21.21/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 40A

Fuse 14x51 terminals 80mm gR 690V 40A

Reference 5013206.40.0 - Manufacturer SIBA
Class gR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 140
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 1050
Weight (gr) 30
Price List €19.43/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 4A

Fuse 14x51 terminals 80mm gR 690V 4A

Reference 5013206.4.0 - Manufacturer SIBA
Class gR
Rated current In (A) 4
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Weight (gr) 30
Price List €141.18/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 32A

Fuse 14x51 terminals 80mm gR 690V 32A

Reference 5013206.32.0 - Manufacturer SIBA
Class gR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 63
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 620
Weight (gr) 30
Price List €16.59/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 25A

Fuse 14x51 terminals 80mm gR 690V 25A

Reference 5013206.25.0 - Manufacturer SIBA
Class gR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 340
Weight (gr) 30
Price List €16.18/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 20A

Fuse 14x51 terminals 80mm gR 690V 20A

Reference 5013206.20.0 - Manufacturer SIBA
Class gR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 21
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 190
Weight (gr) 30
Price List €159.29/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 2A

Fuse 14x51 terminals 80mm gR 690V 2A

Reference 5013206.2.0 - Manufacturer SIBA
Class gR
Rated current In (A) 2
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Weight (gr) 30
Price List €141.18/pc
Quantity
Fuse 14x51 terminals 80mm gR 690V 16A

Fuse 14x51 terminals 80mm gR 690V 16A

Reference 5013206.16.0 - Manufacturer SIBA
Class gR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 11
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 115
Weight (gr) 30
Price List €15.92/pc
Quantity

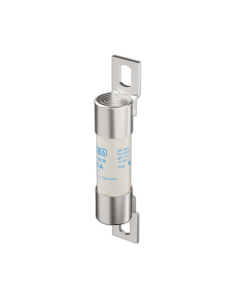

Fuse 14x51 terminals 63mm gR 690V 40A

Fuse 14x51 terminals 63mm gR 690V 40A

Reference 5012906.40.0 - Manufacturer SIBA
Class gR
Rated current In (A) 40
Rated Voltage Un AC (V) 700
Applicable standards IEC, UL
Power loss (W) 10
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 140
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 1050
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €20.10/pc
Quantity
lock Datasheet
Fuse 14x51 terminals 63mm gR 690V 8A

Fuse 14x51 terminals 63mm gR 690V 8A

Reference 5012906.8.0 - Manufacturer SIBA
Class gR
Rated current In (A) 8
Rated Voltage Un AC (V) 700
Applicable standards IEC, UL
Power loss (W) 1,7
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 5,1
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 660
Total clearing I²t @Un AC (A²s) 28
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €16.01/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS terminals 63mm 690V 16A

Fuse 14x51 gRL/gS terminals 63mm 690V 16A

Reference 5012934.16.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,8
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 25
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 210
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €96.76/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS terminals 63mm 690V 12A

Fuse 14x51 gRL/gS terminals 63mm 690V 12A

Reference 5012934.12.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 2,3
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 12
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 105
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 30
Price List €15.35/pc
Quantity
lock Datasheet
Fuse 14x51 gRL/gS terminals 63mm 690V 10A

Fuse 14x51 gRL/gS terminals 63mm 690V 10A

Reference 5012934.10.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 10
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 1,9
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 8
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 70
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 29
Price List €25.77/pc
Quantity
lock Datasheet

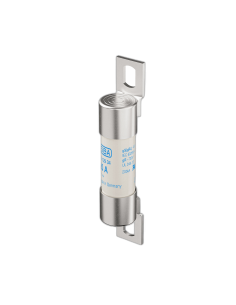

Fuse 14x51 gRL/gS terminals 63mm 690V 40A

Fuse 14x51 gRL/gS terminals 63mm 690V 40A

Reference 5012934.40.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,4
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 420
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 3600
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 28
Price List €34.62/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
