B050 - Fuse 1000VDC aBat 450A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 450A - 118,85mm - Silver Plated

Reference 912.206.14.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 450
Applicable standards IEC, UL
Power loss (W) 60
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 62000
Minimum breaking current (A) 4500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 162000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 250A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 250A - 100,3mm - Silver Plated

Reference 997.607.45.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 250
Applicable standards IEC, UL
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 15500
Minimum breaking current (A) 2000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 34000
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x85 inline 25A

20PV14 - Fuse 2000VDC gPV 14x85 inline 25A

Reference 979.300.79 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 7.6
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 118
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1400A

B300 - Fuse 1000V DC aBat DC 2xM12 1400A

Reference 979.833.74.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Applicable standards IEC
Power loss (W) 262
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 731600
Minimum breaking current (A) 14000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 2195000
Price List €450.85/pc
Quantity
lock Datasheet

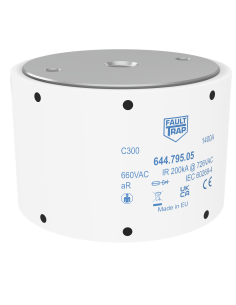

C300 - Fuse 660VAC aR M12 1100A

C300 - Fuse 660VAC aR M12 1100A

Reference 980.066.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1100
Rated Voltage Un AC (V) 690
Dimension SQB3
Applicable standards IEC
Power loss (W) 136
Series name C300
Fuse Dimension (mm) 76x50
Fixing dimensions M12
Melting I²t value (A²s) 200800
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 1150000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

Reference 977.020.16.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x129
Melting I²t value (A²s) 134000
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 97
Total clearing I²t @Un DC (A²s) 350000
Product available on request Ask for more information
AB22 - Fuse 22x65 1000VDC aBat 80A

AB22 - Fuse 22x65 1000VDC aBat 80A

Reference 993.797.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Applicable standards IEC
Power loss (W) 13.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 3030
Minimum breaking current (A) 640
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 16600
Product available on request Ask for more information
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 250A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 250A

Reference 921.536.68.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 250
Applicable standards IEC
Power loss (W) 67.5
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 26550
Minimum breaking current (A) 500
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information

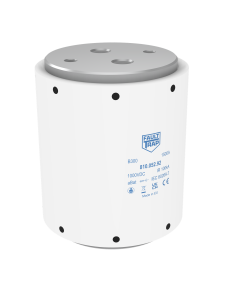

B300 - Fuse 1000V DC aBat DC 2xM12 1100A

B300 - Fuse 1000V DC aBat DC 2xM12 1100A

Reference 942.974.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Applicable standards IEC
Power loss (W) 210
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 373200
Minimum breaking current (A) 11000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 1120000
Product available on request Ask for more information

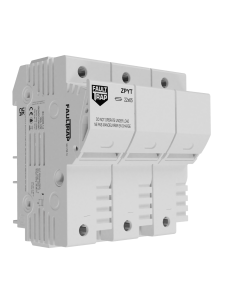

ZPYT - Fuse holder 22x65 1250VAC/1500VDC 3P

ZPYT - Fuse holder 22x65 1250VAC/1500VDC 3P

Reference 942.799.14.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 1250
Applicable standards IEC
Rated Voltage Un DC (V) 1500
Series name ZPYT
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Rated Power Acceptance 12
Number of poles 3
Weight (gr) 560
Price List €28.99/pc
Quantity
lock Datasheet

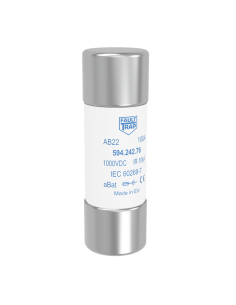

AB22 - Fuse 22x65 1000VDC aBat 60A

AB22 - Fuse 22x65 1000VDC aBat 60A

Reference 972.091.49.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 60
Applicable standards IEC
Power loss (W) 11
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1270
Minimum breaking current (A) 480
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 7000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 300A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 300A - 100,3mm - Tin Plated

Reference 942.895.54.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 300
Applicable standards IEC, UL
Power loss (W) 47
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 23300
Minimum breaking current (A) 2400
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 51000
Price List €81.08/pc
Quantity
lock Datasheet
