Fuse 22x65 gRL/gS 800VAC 10A

Reference 5026534.10.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	10
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	1,8
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	20
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	280
Rated breaking capacity I1 AC (kA)	120000

Price List €62.73/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 100A

Reference 5026534.100.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	100
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	11,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	4600
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	46000
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €24.12/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 16A

Reference 5026534.16.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	16
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	2,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	50
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	700
Rated breaking capacity I1 AC (kA)	120000

Price List €95.73/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 20A

Reference 5026534.20.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	20
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	3,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	85
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	1150
Rated breaking capacity I1 AC (kA)	120000

Price List €62.82/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 25A

Reference 5026534.25.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	25
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	4,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	100
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	1350
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €10.88/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 30A

Reference 5026534.30.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	30
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	4,6
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	220
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	3000
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €14.09/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 32A

Reference 5026534.32.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	32
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	4,8
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	3400
Rated breaking capacity I1 AC (kA)	120000

Price List €112.83/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 35A

Reference 5026534.35.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	35
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	330
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	4500
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €14.09/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 40A

Reference 5026534.40.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	40
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	6
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	420
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	5700
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €16.34/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 50A

Reference 5026534.50.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	50
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	6,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	900
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	12200
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €14.09/pc

Quantity

Fuse 22x65 gRL/gS 800VAC 63A

Reference 5026534.63.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	63
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	8.5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	1300
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1300
Total clearing I²t @Un AC (A²s)	17000
Rated breaking capacity I1 AC (kA)	17500
Weight (gr)	65

Price List €20.70/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 63A

Reference 5026806.63.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	63
Applicable standards	IEC, UL
Power loss (W)	12.5
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	740
Fuse Connection/Terminal type	Cylindrical

Price List €20.33/pc

Quantity

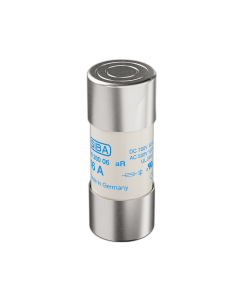

Fuse 500VAC/700VDC 22x58 aR 100A

Reference 5028006.100.0 - Manufacturer SIBA

Price List €26.66/pc

Quantity

Fuse 27,5x88 terminal 110mm aR 1500VDC 80A

Reference 5027206.80.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	80
Applicable standards	IEC, UL
Power loss (W)	22
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	1500
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	14500

Price List €239.67/pc

Quantity

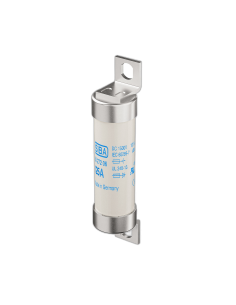

Fuse 27,5x88 terminal 110mm aR 1500VDC 70A

Reference 5027206.70.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	70
Applicable standards	IEC, UL
Power loss (W)	16
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	1300
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	12800

Price List €232.70/pc

Quantity

Fuse 27,5x88 terminal 110mm aR 1500VDC 125A

Reference 5027206.125.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	125
Applicable standards	IEC, UL
Power loss (W)	46
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	2950
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	28900

Price List €252.68/pc

Quantity

Fuse 27,5x88 terminal 110mm aR 1500VDC 100A

Reference 5027206.100.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	100
Applicable standards	IEC, UL
Power loss (W)	33
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	1900
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	18500

Price List €49.10/pc

Quantity

Fuse 27,5x88 terminal 140mm aR 1500VDC 125A

Reference 5027106.125.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	125
Applicable standards	IEC, UL
Power loss (W)	46
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	2950
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	28900

Price List €274.18/pc

Quantity

Fuse 27,5x88 terminal 140mm aR 1500VDC 100A

Reference 5027106.100.0 - Manufacturer SIBA

Class	aR
Rated current In (A)	100
Applicable standards	IEC, UL
Power loss (W)	33
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	6
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	27,5x88
Melting I²t value (A²s)	1900
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	18500

Price List €266.35/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with terminals 50A

Reference 5026906.50.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	50
Applicable standards	IEC, UL
Power loss (W)	12
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	370
Fuse Connection/Terminal type	Cylindrical

Price List €19.05/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with terminals 40A

Reference 5026906.40.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	40
Applicable standards	IEC, UL
Power loss (W)	9
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Cylindrical

Price List €134.73/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with terminals 32A

Reference 5026906.32.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	32
Applicable standards	IEC, UL
Power loss (W)	7
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	150
Fuse Connection/Terminal type	Cylindrical

Price List €18.32/pc

Quantity

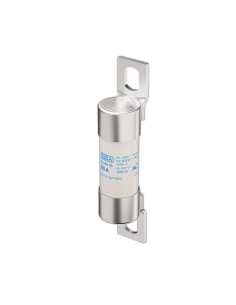

Fuse 22x65 aR/aBat 1000VDC UL with terminals 125A

Reference 5026906.125.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	125
Applicable standards	IEC, UL
Power loss (W)	30
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	3460
Fuse Connection/Terminal type	Cylindrical

Price List €20.24/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 80A

Reference 5026806.80.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	80
Applicable standards	IEC, UL
Power loss (W)	16,5
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	1300
Fuse Connection/Terminal type	Cylindrical

Price List €21.43/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 100A

Reference 5026806.100.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	100
Applicable standards	IEC, UL
Power loss (W)	23
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	2050
Fuse Connection/Terminal type	Cylindrical

Price List €22.61/pc

Quantity

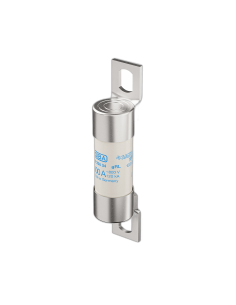

Fuse 800V gRL 22x65 with terminals 85mm 100A

Reference 5026634.100.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	100
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	11,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	4600
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	46000
Rated breaking capacity I1 AC (kA)	120000

Price List €145.87/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with pins 100A

Reference 5026706.100.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	100
Applicable standards	IEC, UL
Power loss (W)	23
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	2050
Fuse Connection/Terminal type	Screw fixing

Price List €55.22/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with pins 125A

Reference 5026706.125.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	125
Applicable standards	IEC, UL
Power loss (W)	30
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	3460
Fuse Connection/Terminal type	Screw fixing

Price List €206.20/pc

Quantity

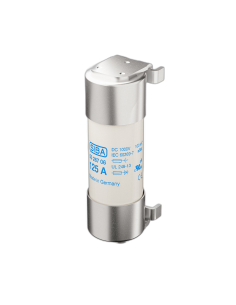

Fuse 22x65 aR/aBat 1000VDC UL with pins 50A

Reference 5026706.50.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	50
Applicable standards	IEC, UL
Power loss (W)	12
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	370
Fuse Connection/Terminal type	Screw fixing

Price List €167.53/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL with pins 80A

Reference 5026706.80.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	80
Applicable standards	IEC, UL
Power loss (W)	16,5
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	1300
Fuse Connection/Terminal type	Screw fixing

Price List €203.35/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 32A

Reference 5026806.32.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	32
Applicable standards	IEC, UL
Power loss (W)	7
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	150
Fuse Connection/Terminal type	Cylindrical

Price List €100.58/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 50A

Reference 5026806.50.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	50
Applicable standards	IEC, UL
Power loss (W)	12
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	370
Fuse Connection/Terminal type	Cylindrical

Price List €15.83/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 40A

Reference 5026806.40.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	40
Applicable standards	IEC, UL
Power loss (W)	9
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Cylindrical

Price List €15.34/pc

Quantity

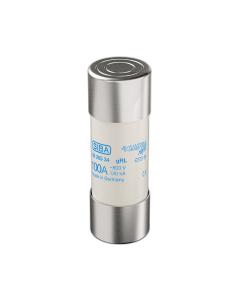

Fuse 22x65 gRL/gS 800VAC 80A

Reference 5026534.80.0 - Manufacturer SIBA

Class	gRL, gS
Rated current In (A)	80
Rated Voltage Un AC (V)	800
Applicable standards	IEC
Power loss (W)	10,5
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	2500
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	800
Total clearing I²t @Un AC (A²s)	28000
Rated breaking capacity I1 AC (kA)	120000
Weight (gr)	65

Price List €23.03/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 20A

Reference 5026806.20.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	20
Applicable standards	IEC, UL
Power loss (W)	4,5
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	46
Fuse Connection/Terminal type	Cylindrical

Price List €93.69/pc

Quantity

Fuse 22x65 aR/aBat 1000VDC UL 125A

Reference 5026806.125.0 - Manufacturer SIBA

Class	aBat, aR
Rated current In (A)	125
Applicable standards	IEC, UL
Power loss (W)	30
Rated Voltage Un DC (V)	1000
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	2436
Fuse Connection/Terminal type	Cylindrical

Price List €24.38/pc

Quantity

14560 products

01
• • •
58
•
59
•
60
• • •
405

Home

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
