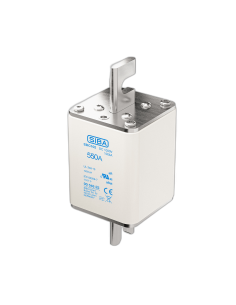

Fuse SQB2 110mm aR/aBat 1000VDC 550A

Fuse SQB2 110mm aR/aBat 1000VDC 550A

Reference 9054625.550.0 - Manufacturer SIBA
Class aR
Rated current In (A) 550
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 116
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 89000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 490000
Price List €1,744.97/pc
Quantity
Fuse SQB2 110mm aR/aBat 1000VDC 630A

Fuse SQB2 110mm aR/aBat 1000VDC 630A

Reference 9054625.630.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 630
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 125000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 690000
Price List €1,749.47/pc
Quantity

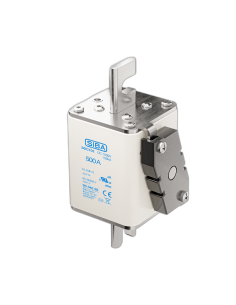

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 500A

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 500A

Reference 9054626.500.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 500
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 114
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 59000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 320000
Price List €1,989.36/pc
Quantity

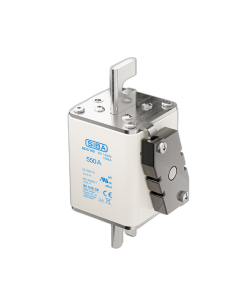

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 550A

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 550A

Reference 9054626.550.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 550
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 116
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 89000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 490000
Price List €2,120.01/pc
Quantity

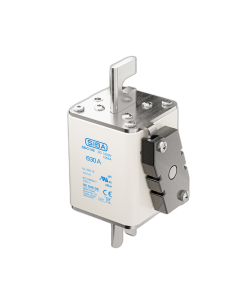

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 630A

Fuse SQB2 110mm aR/aBat 1000VDC lat.switch adpt 630A

Reference 9054626.630.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 630
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 125000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 690000
Price List €2,151.94/pc
Quantity
Fuse SQB2 110mm aR/aBat 1000VDC ind. 500A

Fuse SQB2 110mm aR/aBat 1000VDC ind. 500A

Reference 9054627.500.0 - Manufacturer SIBA
Rated current In (A) 500
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 114
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 59000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 320000
Price List €1,825.67/pc
Quantity
Fuse SQB2 110mm aR/aBat 1000VDC ind. 630A

Fuse SQB2 110mm aR/aBat 1000VDC ind. 630A

Reference 9054627.630.0 - Manufacturer SIBA
Rated current In (A) 630
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Melting I²t value (A²s) 125000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 690000
Price List €1,988.89/pc
Quantity
Fuse SQB2 screw M10 aR/aBat 1000VDC 400A

Fuse SQB2 screw M10 aR/aBat 1000VDC 400A

Reference 9054825.400.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 400
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 105
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Fixing dimensions M10
Melting I²t value (A²s) 32000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 180000
Price List €1,477.93/pc
Quantity

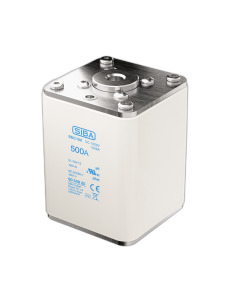

Fuse SQB2 screw M10 aR/aBat 1000VDC 500A

Fuse SQB2 screw M10 aR/aBat 1000VDC 500A

Reference 9054825.500.0 - Manufacturer SIBA
Class aBat
Rated current In (A) 500
Dimension SQB2
Applicable standards IEC, UL
Power loss (W) 114
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 100000
Fixing dimensions M10
Melting I²t value (A²s) 59000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 320000
Price List €1,517.01/pc
Quantity
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

Reference 909.634.43.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Applicable standards IEC
Power loss (W) 205
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 228000
Minimum breaking current (A) 8700
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1264000
Product available on request Ask for more information
Fuse holder 20x127 1500V with switch adapter

Fuse holder 20x127 1500V with switch adapter

Reference 9108003.0.0 - Manufacturer SIBA
Rated current In (A) 63
Rated Voltage Un AC (V) 1500
Applicable standards IEC
Max power dissipation (W) 15
Fuse Dimension (mm) 20x127
Fuse Connection/Terminal type Cylindrical
Weight (gr) 500
Price List €82.51/pc
Quantity
B100 - Fuse 1000VDC aBat 900A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 900A - 152,7mm - Tin Plated

Reference 919.035.31.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Applicable standards IEC, UL
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x203,2
Melting I²t value (A²s) 267000
Minimum breaking current (A) 9000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 813000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 700A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 700A

Reference 929.737.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC
Power loss (W) 185
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 208000
Minimum breaking current (A) 8000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1169000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 900A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 900A - 2xM12 - Silver Plated

Reference 934.823.06.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Applicable standards IEC, UL
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x106,5
Fixing dimensions M12
Melting I²t value (A²s) 267000
Minimum breaking current (A) 9000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 813000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Tin Plated

Reference 939.403.04.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Applicable standards IEC, UL
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x203,2
Melting I²t value (A²s) 508000
Minimum breaking current (A) 11000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1620000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 700A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 700A

Reference 946.887.63.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC
Power loss (W) 185
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M12
Melting I²t value (A²s) 208000
Minimum breaking current (A) 8000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1169000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

Reference 980.290.26.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Applicable standards IEC
Power loss (W) 350
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 1156000
Minimum breaking current (A) 17000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 6270000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 700A - 2xM12 - Silver Plated

Reference 984.935.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC, UL
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x106,5
Fixing dimensions M12
Melting I²t value (A²s) 143600
Minimum breaking current (A) 7000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 431000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 600A - 132,7mm - Tin Plated

Reference 998.060.37.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 93300
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 281000
Price List €191.57/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
