Fuse railway application gR 36x190 1500VDC with striker 25A

Fuse railway application gR 36x190 1500VDC with striker 25A

Reference 9009510.25.0 - Manufacturer SIBA
Class gR
Rated current In (A) 25
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Fuse Dimension (mm) 36x190
Melting I²t value (A²s) 100
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 770
Weight (gr) 520
Price List €181.65/pc
Quantity
Fuse railway application gR 36x190 1500VDC with striker 32A

Fuse railway application gR 36x190 1500VDC with striker 32A

Reference 9009510.32.0 - Manufacturer SIBA
Class gR
Rated current In (A) 32
Power loss (W) 16
Rated Voltage Un DC (V) 1500
Fuse Dimension (mm) 36x190
Melting I²t value (A²s) 130
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 950
Weight (gr) 520
Price List €181.65/pc
Quantity
Fuse railway application gR 36x190 1500VDC with striker 63A

Fuse railway application gR 36x190 1500VDC with striker 63A

Reference 9009510.63.0 - Manufacturer SIBA
Class gR
Rated current In (A) 63
Power loss (W) 30
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 15
Fuse Dimension (mm) 36x190
Melting I²t value (A²s) 1000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 7500
Weight (gr) 520
Price List €191.22/pc
Quantity
Fuse railway application gR 36x190 1500VDC with striker 8A

Fuse railway application gR 36x190 1500VDC with striker 8A

Reference 9009510.8.0 - Manufacturer SIBA
Class gR
Rated current In (A) 8
Power loss (W) 10
Rated Voltage Un DC (V) 1500
Fuse Dimension (mm) 36x190
Melting I²t value (A²s) 41
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 120
Weight (gr) 520
Price List €243.65/pc
Quantity
Fuse railway application 36x250 gR 2000VDC 10A

Fuse railway application 36x250 gR 2000VDC 10A

Reference 9009610.10.0 - Manufacturer SIBA
Class gR
Rated current In (A) 10
Applicable standards IEC
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 20
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 36x250
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 2000
Weight (gr) 600
Price List €167.35/pc
Quantity
Fuse railway application 36x250 gR 2000VDC 8A

Fuse railway application 36x250 gR 2000VDC 8A

Reference 9009610.8.0 - Manufacturer SIBA
Class gR
Rated current In (A) 8
Applicable standards IEC
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 20
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 36x250
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 2000
Weight (gr) 600
Price List €200.90/pc
Quantity
Fuse railway application 39,6x254 gR 4000VDC 31,5A

Fuse railway application 39,6x254 gR 4000VDC 31,5A

Reference 9010010.31,5.0 - Manufacturer SIBA
Class gR
Rated current In (A) 31,5
Applicable standards IEC
Power loss (W) 40
Rated Voltage Un DC (V) 3600
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 3200
Fuse Dimension (mm) 39,6x254
Melting I²t value (A²s) 410
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 4000
Total clearing I²t @Un AC (A²s) 1300
Weight (gr) 800
Price List €81.82/pc
Quantity

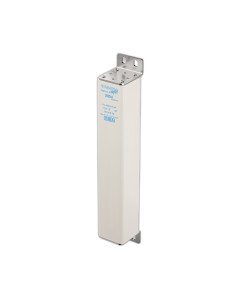

Fuse SQB2 gR 3600V/4000VDC 200A

Fuse SQB2 gR 3600V/4000VDC 200A

Reference 9020020.200.0 - Manufacturer SIBA
Class gR
Rated current In (A) 200
Dimension SQB2
Applicable standards IEC
Power loss (W) 143
Rated Voltage Un DC (V) 4000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 4600
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 4000
Total clearing I²t @Un AC (A²s) 38200
Weight (gr) 3880
Product available on request Ask for more information
Fuse SQB2 aR 1800V/2400VDC with indicator 100A

Fuse SQB2 aR 1800V/2400VDC with indicator 100A

Reference 9020126.100.0 - Manufacturer SIBA
Class aR
Rated current In (A) 100
Dimension SQB2
Applicable standards IEC
Power loss (W) 58
Rated Voltage Un DC (V) 1800
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 1700
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2400
Total clearing I²t @Un AC (A²s) 13500
Weight (gr) 2440
Price List €545.07/pc
Quantity
Fuse SQB2 aR 1700V/2000VDC without indicator 125A

Fuse SQB2 aR 1700V/2000VDC without indicator 125A

Reference 9020225.125.0 - Manufacturer SIBA
Class aR
Rated current In (A) 125
Dimension SQB2
Applicable standards IEC
Power loss (W) 89
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2000
Total clearing I²t @Un AC (A²s) 10900
Weight (gr) 1860
Price List €456.08/pc
Quantity
Fuse SQB2 aR 1700V/2000VDC without indicator 224A

Fuse SQB2 aR 1700V/2000VDC without indicator 224A

Reference 9020225.224.0 - Manufacturer SIBA
Class aR
Rated current In (A) 224
Dimension SQB2
Applicable standards IEC
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2000
Weight (gr) 1860
Price List €472.77/pc
Quantity
Fuse SQB2 aR 1700V/2000VDC with indicator 125A

Fuse SQB2 aR 1700V/2000VDC with indicator 125A

Reference 9020226.125.0 - Manufacturer SIBA
Class aR
Rated current In (A) 125
Dimension SQB2
Applicable standards IEC
Power loss (W) 89
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2000
Total clearing I²t @Un AC (A²s) 10900
Weight (gr) 1860
Price List €5,247.88/pc
Quantity
Fuse SQB2 aR 1700V/2000VDC with indicator 224A

Fuse SQB2 aR 1700V/2000VDC with indicator 224A

Reference 9020226.224.0 - Manufacturer SIBA
Class aR
Rated current In (A) 224
Dimension SQB2
Applicable standards IEC
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 2000
Weight (gr) 1860
Price List €742.52/pc
Quantity
Fuse SQB2 aR 1000V/1200VDC with indicator 100A

Fuse SQB2 aR 1000V/1200VDC with indicator 100A

Reference 9020326.100.0 - Manufacturer SIBA
Class aR
Rated current In (A) 100
Dimension SQB2
Applicable standards IEC
Power loss (W) 60
Rated Voltage Un DC (V) 900
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 620
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1200
Total clearing I²t @Un AC (A²s) 5400
Weight (gr) 3540
Price List €518.50/pc
Quantity
Fuse SQB2 aR 1000V/1200VDC with indicator 125A

Fuse SQB2 aR 1000V/1200VDC with indicator 125A

Reference 9020326.125.0 - Manufacturer SIBA
Class aR
Rated current In (A) 125
Dimension SQB2
Applicable standards IEC
Power loss (W) 68
Rated Voltage Un DC (V) 900
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 1150
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1200
Total clearing I²t @Un AC (A²s) 10100
Weight (gr) 3540
Price List €444.96/pc
Quantity
Fuse SQB0 aR 3600V/4000VDC without indicator 10A

Fuse SQB0 aR 3600V/4000VDC without indicator 10A

Reference 9022027.10.0 - Manufacturer SIBA
Class aR
Rated current In (A) 10
Dimension SQB0
Power loss (W) 13
Rated Voltage Un DC (V) 4000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 16
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 4000
Total clearing I²t @Un AC (A²s) 120
Weight (gr) 1780
Price List €309.00/pc
Quantity
Fuse SQB0 aR 3600V/4000VDC without indicator 25A

Fuse SQB0 aR 3600V/4000VDC without indicator 25A

Reference 9022027.25.0 - Manufacturer SIBA
Class aR
Rated current In (A) 25
Dimension SQB0
Power loss (W) 24
Rated Voltage Un DC (V) 4000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 72
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 4000
Total clearing I²t @Un AC (A²s) 540
Weight (gr) 1780
Price List €333.72/pc
Quantity
Fuse SQB0 aR 3600V/4000VDC without indicator 31,5A

Fuse SQB0 aR 3600V/4000VDC without indicator 31,5A

Reference 9022027.31,5.0 - Manufacturer SIBA
Class aR
Rated current In (A) 31,5
Dimension SQB0
Power loss (W) 29
Rated Voltage Un DC (V) 4000
Time costant L/R (ms) 15
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 128
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 4000
Total clearing I²t @Un AC (A²s) 960
Weight (gr) 1780
Price List €984.09/pc
Quantity
