Fuse 12x150 F 6000V ceramic 0,8A

Fuse 12x150 F 6000V ceramic 0,8A

Reference 7003024.0,8.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,8
Rated Voltage Un AC (V) 6000
Power loss (W) 7,2
Voltage drop (mV) 9000
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 0,04
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Product available on request Ask for more information
Fuse 12x150 F 6000V ceramic 1,25A

Fuse 12x150 F 6000V ceramic 1,25A

Reference 7003024.1,25.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,25
Rated Voltage Un AC (V) 6000
Power loss (W) 9,6
Voltage drop (mV) 7700
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 0,2
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Product available on request Ask for more information
Fuse 12x150 F 6000V ceramic 1,6A

Fuse 12x150 F 6000V ceramic 1,6A

Reference 7003024.1,6.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,6
Rated Voltage Un AC (V) 6000
Power loss (W) 11,4
Voltage drop (mV) 7100
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 0,45
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 12x150 F 6000V ceramic 1A

Fuse 12x150 F 6000V ceramic 1A

Reference 7003024.1.0 - Manufacturer SIBA
Class F
Rated current In (A) 1
Rated Voltage Un AC (V) 6000
Power loss (W) 8,3
Voltage drop (mV) 8300
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 0,074
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 12x150 F 6000V ceramic 2,5A

Fuse 12x150 F 6000V ceramic 2,5A

Reference 7003024.2,5.0 - Manufacturer SIBA
Class F
Rated current In (A) 2,5
Rated Voltage Un AC (V) 6000
Power loss (W) 15
Voltage drop (mV) 6000
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 2,6
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 12x150 F 6000V ceramic 2A

Fuse 12x150 F 6000V ceramic 2A

Reference 7003024.2.0 - Manufacturer SIBA
Class F
Rated current In (A) 2
Rated Voltage Un AC (V) 6000
Power loss (W) 13
Voltage drop (mV) 6500
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 1,2
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 12x150 F 6000V ceramic 3,15A

Fuse 12x150 F 6000V ceramic 3,15A

Reference 7003024.3,15.0 - Manufacturer SIBA
Class F
Rated current In (A) 3,15
Rated Voltage Un AC (V) 6000
Power loss (W) 17,6
Voltage drop (mV) 5600
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 4,9
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 12x150 F 6000V ceramic 4A

Fuse 12x150 F 6000V ceramic 4A

Reference 7003024.4.0 - Manufacturer SIBA
Class F
Rated current In (A) 4
Rated Voltage Un AC (V) 6000
Power loss (W) 20,4
Voltage drop (mV) 5100
Fuse Dimension (mm) 12x150
Melting I²t value (A²s) 14
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 300
Weight (gr) 40
Price List €47.12/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 2A

Fuse 6,3x32 400VDC gPV ceramic 2A

Reference 7006526.2.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 2
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 300
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 7,1
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 15
Price List €1.71/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 3,15A

Fuse 6,3x32 400VDC gPV ceramic 3,15A

Reference 7006526.3,15.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 3,15
Applicable standards IEC
Power loss (W) 0,8
Voltage drop (mV) 250
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 11
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 22
Price List €1.71/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 4A

Fuse 6,3x32 400VDC gPV ceramic 4A

Reference 7006526.4.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 4
Applicable standards IEC
Power loss (W) 0,9
Voltage drop (mV) 220
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 23
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 50
Price List €1.71/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 5A

Fuse 6,3x32 400VDC gPV ceramic 5A

Reference 7006526.5.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 5
Applicable standards IEC
Power loss (W) 1,1
Voltage drop (mV) 210
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 42
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 85
Price List €1.71/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 6,3A

Fuse 6,3x32 400VDC gPV ceramic 6,3A

Reference 7006526.6,3.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 6,3
Applicable standards IEC
Power loss (W) 1,3
Voltage drop (mV) 200
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 83
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 150
Price List €1.71/pc
Quantity
Fuse 6,3x32 400VDC gPV ceramic 8A

Fuse 6,3x32 400VDC gPV ceramic 8A

Reference 7006526.8.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 8
Applicable standards IEC
Power loss (W) 1,4
Voltage drop (mV) 175
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 150
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 300
Price List €1.71/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 0,25A

Fuse 5x25 F 450V ceramic with indicator 0,25A

Reference 7008913.0,25.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,25
Rated Voltage Un AC (V) 450
Power loss (W) 0,3
Voltage drop (mV) 950
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,05
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €12.39/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 0,315A

Fuse 5x25 F 450V ceramic with indicator 0,315A

Reference 7008913.0,315.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,315
Rated Voltage Un AC (V) 450
Power loss (W) 0,5
Voltage drop (mV) 900
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,05
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €12.39/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 0,4A

Fuse 5x25 F 450V ceramic with indicator 0,4A

Reference 7008913.0,4.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,4
Rated Voltage Un AC (V) 450
Power loss (W) 0,5
Voltage drop (mV) 800
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,15
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €12.40/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 0,5A

Fuse 5x25 F 450V ceramic with indicator 0,5A

Reference 7008913.0,5.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,5
Rated Voltage Un AC (V) 450
Power loss (W) 0,6
Voltage drop (mV) 700
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,15
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €11.24/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 0,8A

Fuse 5x25 F 450V ceramic with indicator 0,8A

Reference 7008913.0,8.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,8
Rated Voltage Un AC (V) 450
Power loss (W) 0,3
Voltage drop (mV) 300
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,25
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €11.24/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 1,25A

Fuse 5x25 F 450V ceramic with indicator 1,25A

Reference 7008913.1,25.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,25
Rated Voltage Un AC (V) 450
Power loss (W) 0,4
Voltage drop (mV) 250
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 1,1
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €16.84/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 1,6A

Fuse 5x25 F 450V ceramic with indicator 1,6A

Reference 7008913.1,6.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,6
Rated Voltage Un AC (V) 450
Power loss (W) 0,9
Voltage drop (mV) 400
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 2,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €8.70/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 1A

Fuse 5x25 F 450V ceramic with indicator 1A

Reference 7008913.1.0 - Manufacturer SIBA
Class F
Rated current In (A) 1
Rated Voltage Un AC (V) 450
Power loss (W) 0,3
Voltage drop (mV) 300
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 0,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 1
Price List €11.24/pc
Quantity

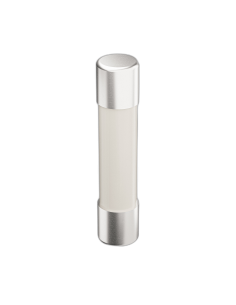

Fuse 5x25 F 450V ceramic with indicator 10A

Fuse 5x25 F 450V ceramic with indicator 10A

Reference 7008913.10.0 - Manufacturer SIBA
Class F
Rated current In (A) 10
Rated Voltage Un AC (V) 450
Power loss (W) 5
Voltage drop (mV) 150
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €7.89/pc
Quantity
Fuse 5x25 F 450V ceramic with indicator 2,5A

Fuse 5x25 F 450V ceramic with indicator 2,5A

Reference 7008913.2,5.0 - Manufacturer SIBA
Class F
Rated current In (A) 2,5
Rated Voltage Un AC (V) 450
Power loss (W) 1,2
Voltage drop (mV) 350
Fuse Dimension (mm) 5x25
Melting I²t value (A²s) 4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 450
Rated breaking capacity I1 AC (kA) 70000
Weight (gr) 2
Price List €7.57/pc
Quantity
Home
Product added to compare.
Product added to wishlist
