Fuse 10kV 8x150 2A 7004110.2

Fuse 10kV 8x150 2A 7004110.2

Reference 187000.2.0 - Manufacturer SIBA
Class F
Rated current In (A) 2
Rated Voltage Un AC (V) 10000
Voltage drop (mV) 1400
Fuse Dimension (mm) 8x150
Melting I²t value (A²s) 1,5
Fuse Connection/Terminal type Cylindrical
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 16
Price List €34.03/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 0,05A 7005960.0,05

Fuse 6,3x32 F 250V glass 0,05A 7005960.0,05

Reference 189000.0,05.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,05
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,7
Voltage drop (mV) 9600
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,0003
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €5.12/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 0,063A 7005960.0,063

Fuse 6,3x32 F 250V glass 0,063A 7005960.0,063

Reference 189000.0,063.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,063
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,5
Voltage drop (mV) 6000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,0005
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €5.12/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 0,315A 7005960.0,315

Fuse 6,3x32 F 250V glass 0,315A 7005960.0,315

Reference 189000.0,315.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,315
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 600
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,08
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 1,25A 7005960.1,25

Fuse 6,3x32 F 250V glass 1,25A 7005960.1,25

Reference 189000.1,25.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,25
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 300
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 1,6A 7005960.1,6

Fuse 6,3x32 F 250V glass 1,6A 7005960.1,6

Reference 189000.1,6.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,6
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,7
Voltage drop (mV) 300
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 3,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 250V glass 10A 7005960.10

Fuse 6,3x32 F 250V glass 10A 7005960.10

Reference 189000.10.0 - Manufacturer SIBA
Class F
Rated current In (A) 10
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 2,3
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 500
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 3
Price List €0.28/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 500V UL ceramic 1,6A 7006563.1,6

Fuse 6,3x32 F 500V UL ceramic 1,6A 7006563.1,6

Reference 189020.1,6.0 - Manufacturer SIBA
Class F
Rated current In (A) 1,6
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 1,4
Voltage drop (mV) 140
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 1,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 300
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 440V ceramic 25A 7006563.25

Fuse 6,3x32 F 440V ceramic 25A 7006563.25

Reference 189020.25.0 - Manufacturer SIBA
Class F
Rated current In (A) 25
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 11
Voltage drop (mV) 110
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 3100
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 500V ceramic 3A 7006563.3

Fuse 6,3x32 F 500V ceramic 3A 7006563.3

Reference 189020.3.0 - Manufacturer SIBA
Class F
Rated current In (A) 3
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 2,9
Voltage drop (mV) 280
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 6,6
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 500V UL ceramic 4A 7006563.4

Fuse 6,3x32 F 500V UL ceramic 4A 7006563.4

Reference 189020.4.0 - Manufacturer SIBA
Class F
Rated current In (A) 4
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 2,6
Voltage drop (mV) 220
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 18
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 500V UL ceramic 5A 7006563.5

Fuse 6,3x32 F 500V UL ceramic 5A 7006563.5

Reference 189020.5.0 - Manufacturer SIBA
Class F
Rated current In (A) 5
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 2,9
Voltage drop (mV) 190
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 40
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 F 500V ceramic 7A 7006563.7

Fuse 6,3x32 F 500V ceramic 7A 7006563.7

Reference 189020.7.0 - Manufacturer SIBA
Class F
Rated current In (A) 7
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 3,8
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 100
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 50000
Weight (gr) 3
Price List €0.88/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 250V glass 10A 7005961.10

Fuse 6,3x32 T 250V glass 10A 7005961.10

Reference 189100.10.0 - Manufacturer SIBA
Class T
Rated current In (A) 10
Rated Voltage Un AC (V) 250
Power loss (W) 2,3
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 630
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.42/pc
Quantity
lock Datasheet

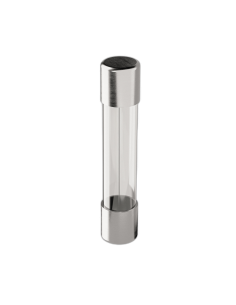

Fuse 6,3x32 T 250V glass 12,5A 7005961.12,5

Fuse 6,3x32 T 250V glass 12,5A 7005961.12,5

Reference 189100.12,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 12,5
Rated Voltage Un AC (V) 250
Power loss (W) 2,8
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 820
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.42/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 250V glass 16A 7005961.16

Fuse 6,3x32 T 250V glass 16A 7005961.16

Reference 189100.16.0 - Manufacturer SIBA
Class T
Rated current In (A) 16
Rated Voltage Un AC (V) 250
Power loss (W) 3
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 1200
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.29/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 250V glass 2,5A 7005961.2,5

Fuse 6,3x32 T 250V glass 2,5A 7005961.2,5

Reference 189100.2,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 2,5
Rated Voltage Un AC (V) 250
Power loss (W) 0,7
Voltage drop (mV) 200
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.53/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 250V glass 2A 7005961.2

Fuse 6,3x32 T 250V glass 2A 7005961.2

Reference 189100.2.0 - Manufacturer SIBA
Class T
Rated current In (A) 2
Rated Voltage Un AC (V) 250
Power loss (W) 0,6
Voltage drop (mV) 200
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.84/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 250V glass 20A 7005961.20

Fuse 6,3x32 T 250V glass 20A 7005961.20

Reference 189100.20.0 - Manufacturer SIBA
Class T
Rated current In (A) 20
Rated Voltage Un AC (V) 250
Power loss (W) 4
Voltage drop (mV) 150
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 1600
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 3
Price List €0.65/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 500V UL ceramic 0,1A 7006565.0,1

Fuse 6,3x32 T 500V UL ceramic 0,1A 7006565.0,1

Reference 189140.0,1.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,1
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 1,3
Voltage drop (mV) 3600
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,04
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 3
Price List €1.79/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 500V UL ceramic 0,16A 7006565.0,16

Fuse 6,3x32 T 500V UL ceramic 0,16A 7006565.0,16

Reference 189140.0,16.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,16
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 1,5
Voltage drop (mV) 3000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,1
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 3
Price List €1.43/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 500V UL ceramic 0,25A 7006565.0,25

Fuse 6,3x32 T 500V UL ceramic 0,25A 7006565.0,25

Reference 189140.0,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,25
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 1,7
Voltage drop (mV) 2000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,25
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 3
Price List €1.43/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 500V ceramic 0,315A 7006565.0,315

Fuse 6,3x32 T 500V ceramic 0,315A 7006565.0,315

Reference 189140.0,315.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,315
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 1,8
Voltage drop (mV) 1800
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,45
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 3
Price List €1.43/pc
Quantity
lock Datasheet
Fuse 6,3x32 T 500V UL ceramic 0,4A 7006565.0,4

Fuse 6,3x32 T 500V UL ceramic 0,4A 7006565.0,4

Reference 189140.0,4.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,4
Rated Voltage Un AC (V) 500
Applicable standards UL
Power loss (W) 2
Voltage drop (mV) 1600
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,45
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 3
Price List €1.43/pc
Quantity
lock Datasheet
Home
Product added to compare.
Product added to wishlist
