ZYCY - Fuse holder 10x38 for PCB

ZYCY - Fuse holder 10x38 for PCB

Reference 244.488.24.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Series name ZYCY
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Number of poles 1
Product available on request Ask for more information
Microswitch 1,3kV 1pole standard Microswitch 1,3kV 1pole standard 2

Microswitch 1,3kV 1pole standard

Reference 2800310.0.0 - Manufacturer SIBA
Rated current In (A) 12
Rated Voltage Un AC (V) 250
Rated Voltage Un DC (V) 35
Rated insultaion voltage AC (V) 1250
Rated insulated voltage DC (V) 1250
Fuse Connection/Terminal type Screw fixing
Weight (gr) 40
Price List $27.51/pc
Quantity
lock Datasheet
Fuse SQB3 110mm aR 900V lat switch adapt 90° body82mm 1500A

Fuse SQB3 110mm aR 900V lat switch adapt 90° body82mm 1500A

Reference 2078652.1500.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1500
Rated Voltage Un AC (V) 900
Dimension SQB3
Applicable standards IEC
Power loss (W) 128
Melting I²t value (A²s) 1126000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 5000000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1380
Product available on request Ask for more information
Fuse SQB3 110mm aR 900V lat switch adapt 90° body82mm 1600A

Fuse SQB3 110mm aR 900V lat switch adapt 90° body82mm 1600A

Reference 2078652.1600.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1600
Rated Voltage Un AC (V) 900
Dimension SQB3
Applicable standards IEC
Power loss (W) 137
Melting I²t value (A²s) 1374000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 6100000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1380
Price List $218.17/pc
Quantity
lock Datasheet

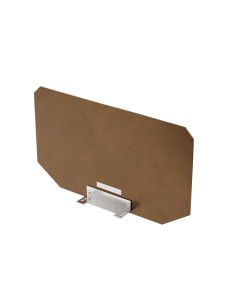

Partition wall NH4

Partition wall NH4

Reference 2100604.30.0 - Manufacturer SIBA
Fuse Connection/Terminal type NH knife
Weight (gr) 170
Price List $21.90/pc
Quantity
lock Datasheet
Fuse SQB3 US-UNC 1/2 aR 1250V lateral switch adapter 750A

Fuse SQB3 US-UNC 1/2 aR 1250V lateral switch adapter 750A

Reference 2078432.750.0 - Manufacturer SIBA
Class aR
Rated current In (A) 750
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 133
Melting I²t value (A²s) 169000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) US-UNC 1/2
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 957000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1500
Product available on request Ask for more information
Fuse SQB3 110mm aR 800V lateral switch adapter 90° 1250A

Fuse SQB3 110mm aR 800V lateral switch adapter 90° 1250A

Reference 2078632.1250.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1250
Rated Voltage Un AC (V) 800
Dimension SQB3
Applicable standards UL
Power loss (W) 140
Melting I²t value (A²s) 236000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1300000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Price List $343.61/pc
Quantity
lock Datasheet
Fuse SQB3 110mm aR 800V lateral switch adapter 90° 1400A

Fuse SQB3 110mm aR 800V lateral switch adapter 90° 1400A

Reference 2078632.1400.0 - Manufacturer SIBA
Class aR
Rated current In (A) 1400
Rated Voltage Un AC (V) 800
Dimension SQB3
Applicable standards UL
Power loss (W) 210
Melting I²t value (A²s) 852000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 3900000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 315A

Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 315A

Reference 2078632.315.0 - Manufacturer SIBA
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 83
Melting I²t value (A²s) 11000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 60000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 350A

Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 350A

Reference 2078632.350.0 - Manufacturer SIBA
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 85
Melting I²t value (A²s) 15000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 90000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 400A

Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 400A

Reference 2078632.400.0 - Manufacturer SIBA
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 92
Melting I²t value (A²s) 22000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 130000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 450A

Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 450A

Reference 2078632.450.0 - Manufacturer SIBA
Class aR
Rated current In (A) 450
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 99
Melting I²t value (A²s) 33000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 190000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 500A

Fuse SQB3 110mm aR 1250V lateral switch adapter 90° 500A

Reference 2078632.500.0 - Manufacturer SIBA
Class aR
Rated current In (A) 500
Rated Voltage Un AC (V) 1250
Dimension SQB3
Applicable standards IEC, UL
Power loss (W) 110
Melting I²t value (A²s) 42000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 110
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 230000
Rated breaking capacity I1 AC (kA) 100000
Weight (gr) 1240
Product available on request Ask for more information
