Switch disc NH00 3P top M8 screw term - bottom double Vclamp

Switch disc NH00 3P top M8 screw term - bottom double Vclamp

Reference 63-823341-061.0.0 - Manufacturer APATOR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Rated Voltage Un DC (V) 440
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 1100
Price List €86.94/pc
Quantity
Switch disc. NH00 3P top bridge clamps - bottom prisma clamp

Switch disc. NH00 3P top bridge clamps - bottom prisma clamp

Reference 63-823341-131.0.0 - Manufacturer APATOR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Rated Voltage Un DC (V) 440
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 1100
Price List €61.14/pc
Quantity
Switch disc. NH00 3P top M8 screw term - bottom prisma clamp

Switch disc. NH00 3P top M8 screw term - bottom prisma clamp

Reference 63-823341-141.0.0 - Manufacturer APATOR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Rated Voltage Un DC (V) 440
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 1100
Price List €61.14/pc
Quantity
Switch disc NH00 3P top bridge clamps - Busbar - Elect ctrl

Switch disc NH00 3P top bridge clamps - Busbar - Elect ctrl

Reference 63-823345-011.0.0 - Manufacturer APATOR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Rated Voltage Un DC (V) 440
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 1100
Price List €155.75/pc
Quantity
Switch disc NH00 3P bottom bridge clamp -Busbar - Elect ctrl

Switch disc NH00 3P bottom bridge clamp -Busbar - Elect ctrl

Reference 63-823345-021.0.0 - Manufacturer APATOR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Rated Voltage Un DC (V) 440
Max power dissipation (W) 12
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 1100
Price List €155.75/pc
Quantity
Switch disc NH000 3P top frame clamps - 125A - Busbar60mm

Switch disc NH000 3P top frame clamps - 125A - Busbar60mm

Reference 63-823427-001.0.0 - Manufacturer APATOR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Dimension NH000
Applicable standards IEC
Rated Voltage Un DC (V) 250
Max power dissipation (W) 7,5
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 600
Price List €71.38/pc
Quantity
Switch disc NH000 3P bottom frame clamps -125A - Busbar60mm

Switch disc NH000 3P bottom frame clamps -125A - Busbar60mm

Reference 63-823427-002.0.0 - Manufacturer APATOR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Dimension NH000
Applicable standards IEC
Rated Voltage Un DC (V) 250
Max power dissipation (W) 7,5
Fuse Connection/Terminal type NH knife
Number of poles 3
Weight (gr) 600
Price List €89.23/pc
Quantity
Plate for clip diameter 22/27mm

Plate for clip diameter 22/27mm

Reference 6300201.0.0 - Manufacturer SIBA
Applicable standards IEC, UL
Fuse Connection/Terminal type Cylindrical
Fuse Diameter for Accessories (mm) 22?27
Weight (gr) 10
Price List €367.37/pc
Quantity
lock Datasheet
BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

Reference 631.812.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Applicable standards IEC
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name BSDC
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 38x127
Melting I²t value (A²s) 21000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 99
Total clearing I²t @Un AC (A²s) 79800
Product available on request Ask for more information
L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 12A

L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 12A

Reference 631.813.48.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 3,2
Rated Voltage Un DC (V) 1500
Series name L108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 16,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 177
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 250A

NRAB - Fuse 690V AC aR NH00 with indicator 250A

Reference 633.071.01.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Power loss (W) 57
Series name NRAB
Melting I²t value (A²s) 10150
Fuse Connection/Terminal type NH knife
Voltage of total clearing I2t test 770
Total clearing I²t @Un AC (A²s) 49500
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 50A

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 50A

Reference 635.145.22.0.0 - Manufacturer FAULTRAP
Class gPV, gR
Rated current In (A) 50
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 9
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 1-3
Series name VP22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 740
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 6550
Total clearing I²t @Un AC (A²s) 4100
Rated breaking capacity I1 AC (kA) 100
Product available on request Ask for more information
SP22 - Fuse 480V 22x58 25kA 10/350us with striker for SPD

SP22 - Fuse 480V 22x58 25kA 10/350us with striker for SPD

Reference 635.429.15.0.0 - Manufacturer FAULTRAP
Rated Voltage Un AC (V) 480
Applicable standards IEC
Series name SP22
Fuse Dimension (mm) 22x58
Melting I²t value (A²s) 1970000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 528
Total clearing I²t @Un AC (A²s) 430000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 32A

UR22 - Fuse 690V AC 22x58 fixing on pcb 32A

Reference 637.218.29.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 9
Series name UR22
Melting I²t value (A²s) 65
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 330
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 12A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 12A 6/8 AWG

Reference 637.379.22.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 23
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
E103 - Fuse 10x38 500VDC aBAT 50A

E103 - Fuse 10x38 500VDC aBAT 50A

Reference 638.553.07.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Applicable standards IEC
Power loss (W) 6,4
Rated Voltage Un DC (V) 500
Series name E103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Price List €3.74/pc
Quantity
lock Datasheet
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 250A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 250A

Reference 639.596.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 10150
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 37100
Rated breaking capacity I1 AC (kA) 200000
Price List €20.46/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 125A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 125A

Reference 640.594.60.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 2100
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 7700
Rated breaking capacity I1 AC (kA) 200000
Price List €47.70/pc
Quantity
lock Datasheet

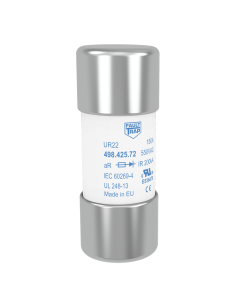

UR22 - Fuse 690V AC 22x58 cylindrical 40A

UR22 - Fuse 690V AC 22x58 cylindrical 40A

Reference 641.430.00.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 550
Applicable standards IEC, UL
Power loss (W) 9,6
Series name UR22
Melting I²t value (A²s) 148
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 640
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 125A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 125A

Reference 642.654.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 2100
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 7700
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
C330 - Fuse 76x73,5mm 600VAC 2200A Flush-End Mount Terminal

C330 - Fuse 76x73,5mm 600VAC 2200A Flush-End Mount Terminal

Reference 642.937.14.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 2200
Rated Voltage Un AC (V) 600
Applicable standards IEC
Power loss (W) 270
Series name C330
Fuse Dimension (mm) 76x73.5
Fixing dimensions M12
Melting I²t value (A²s) 1970000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 8668000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 50A

PV22 - Fuse 22x65mm 1500VDC gPV UL 50A

Reference 660.156.22.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 50
Applicable standards UL
Power loss (W) 11
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 685
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 5600
Price List €181.17/pc
Quantity
lock Datasheet
X100 - Fuse 22x65mm 1000VAC gG 50A

X100 - Fuse 22x65mm 1000VAC gG 50A

Reference 657.855.26.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 50
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 8
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 740
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 6300
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 10A

X800 - Fuse 22x65mm 800VAC gG 10A

Reference 658.578.76.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 10
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 1,4
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 140
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 1680
Rated breaking capacity I1 AC (kA) 80000
Price List €34.63/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 12A

A145 - Fuse 14x51 690VAC aR 12A

Reference 658.591.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 3,6
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 9
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 78
Rated breaking capacity I1 AC (kA) 200
Price List €4.68/pc
Quantity
lock Datasheet
T500 - Fuse 500VDC aBat d:38mm axial 80mm 100A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 100A

Reference 658.741.73.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Applicable standards IEC, UL
Power loss (W) 9.5
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 2100
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 3200
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 1400A

BPF3 - Fuse 1500VDC aBat M12 1400A

Reference 659.248.56.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Applicable standards IEC
Power loss (W) 290
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF3
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 76x140
Fixing dimensions M12
Melting I²t value (A²s) 1350000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 7695000
Product available on request Ask for more information
A145 - Fuse 14x51 690VAC aR 16A

A145 - Fuse 14x51 690VAC aR 16A

Reference 659.899.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 5.4
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 13
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 120
Rated breaking capacity I1 AC (kA) 200
Price List €4.68/pc
Quantity
lock Datasheet
C200 - Fuse 690VAC aR 1100A size 2 61x52,4mm M10 flush...

C200 - Fuse 690VAC aR 1100A size 2 61x52,4mm M10 flush end terminals, with microswitch adapter

Reference 657.158.53.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1250
Rated Voltage Un AC (V) 600
Dimension SQB2
Applicable standards IEC
Power loss (W) 142
Series name C200
Fuse Dimension (mm) 61x50
Fixing dimensions M10
Melting I²t value (A²s) 370000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 2553000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 4A

G103 - Fuse 500V 10x38 gG 4A

Reference 664.576.93.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 0,8
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 3,3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 24
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
Home
Product added to compare.
Product added to wishlist
