Busbar 35mm2 isolated 90° pin 1pole 1000VDC 5x17,8mm

Reference 6905S/05TE/EK.0.0 - Manufacturer FTG

Type	Pin
Number of connections	5
Cross section (mm2)	35
Fixing connection centres (mm)	17
Number of poles	1
Weight (gr)	37

Product available on request Ask for more information

Busbar 35mm2 isolated 90° pin 1pole 1000VDC 4x17,8mm

Reference 6905S/04TE/EK.0.0 - Manufacturer FTG

Type	Pin
Number of connections	4
Cross section (mm2)	35
Fixing connection centres (mm)	17
Number of poles	1
Weight (gr)	29

Product available on request Ask for more information

Busbar 35mm2 isolated 90° pin 1pole 1000VDC 3x17,8mm

Reference 6905S/03/TE/EK.0.0 - Manufacturer FTG

Type	Pin
Number of connections	3
Cross section (mm2)	35
Fixing connection centres (mm)	17
Number of poles	1
Weight (gr)	22

Product available on request Ask for more information

Busbar 35mm2 isolated 90° pin 1pole 1000VDC 2x17,8mm

Reference 6905S/02TE/EK.0.0 - Manufacturer FTG

Type	Pin
Number of connections	2
Cross section (mm2)	35
Fixing connection centres (mm)	17
Number of poles	1
Weight (gr)	15

Product available on request Ask for more information

Busbar insolated pin 1p 1000VDC 35mm2 1meter 57x17,8 90°

Reference 6905S.0.0 - Manufacturer FTG

Type	Pin
Number of connections	57
Cross section (mm2)	35
Fixing connection centres (mm)	17
Number of poles	1
Weight (gr)	482

Product available on request Ask for more information

Busbar fork 90° isolated 1P 35mm2 57x17,8mm

Reference 6905.0.0 - Manufacturer FTG

Type	Fork
Number of connections	75
Cross section (mm2)	25
Fixing connection centres (mm)	13
Number of poles	1

Product available on request Ask for more information

Busbar pin 90° isolated 1P 35mm2 3x27mm

Reference 6902S/3TE.0.0 - Manufacturer FTG

Type	Pin
Number of connections	3
Cross section (mm2)	35
Fixing connection centres (mm)	27
Number of poles	1

Product available on request Ask for more information

Busbar pin 90° isolated 1P 35mm2 2x27mm

Reference 6902S/2TE.0.0 - Manufacturer FTG

Type	Pin
Number of connections	2
Cross section (mm2)	35
Fixing connection centres (mm)	27
Number of poles	1

Product available on request Ask for more information

Busbar fork 1pole 90° isolated 27mm 6902S

Reference 6902S.0.0 - Manufacturer FTG

Type	Fork
Number of connections	37
Cross section (mm2)	35
Fixing connection centres (mm)	27
Number of poles	1

Product available on request Ask for more information

Busbar fork 1pole 90° isolated 27mm 6902

Reference 6902.0.0 - Manufacturer FTG

Type	Fork
Number of connections	37
Cross section (mm2)	35
Fixing connection centres (mm)	27
Number of poles	1

Product available on request Ask for more information

20PV22 - Fuse 2000VDC gPV 22x85 inline 15A 6/8 AWG

Reference 689.656.50.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	15
Applicable standards	IEC
Power loss (W)	4.8
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x85
Melting I²t value (A²s)	38
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

Fuse SQB0 knife contact aR 3600V/4000VDC 40A

Reference 688/262.0.0 - Manufacturer SIBA

Product available on request Ask for more information

RL12 - Fuse 25x60mm 125VDC 25A

Reference 685.348.33.0.0 - Manufacturer FAULTRAP

Rated current In (A)	25
Power loss (W)	3,5
Rated Voltage Un DC (V)	125
Time costant L/R (ms)	3
Series name	RL12
Rated breaking capacity I1 DC (kA)	10000
Melting I²t value (A²s)	35
Total clearing I²t @Un AC (A²s)	240

Price List €3.62/pc

Quantity

V108 - Fuse 10x85 1500VDC gPV UL 10A

Reference 685.060.16.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	10
Applicable standards	IEC, UL
Power loss (W)	2,99
Rated Voltage Un DC (V)	1500
Series name	V108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	12,7
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	102
Weight (gr)	12

Price List €10.81/pc

Quantity

lock Datasheet

Z050A-Fuse automotive1000VDCfull range surf. mount 300A

Reference 682.493.71.0.0 - Manufacturer FAULTRAP

Class	EV full
Applicable standards	UL
Rated Voltage Un DC (V)	1000
Series name	Z050A
Rated breaking capacity I1 DC (kA)	100000
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1000

Product available on request Ask for more information

ZBUS - Busbar 35mm2 22,5mm 180° feed-in terminal 8 pin

Reference 682.225.01.0.0 - Manufacturer FAULTRAP

Type	Pin
Number of connections	8
Cross section (mm2)	35
Series name	ZBUS
Fixing connection centres (mm)	22,5
Number of poles	1

Product available on request Ask for more information

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 75A

Reference 680.838.47.0.0 - Manufacturer FAULTRAP

Product available on request Ask for more information

P103 - Fuse 550V DC EV with pins 10 AMP

Reference 679.360.73.0.0 - Manufacturer FAULTRAP

Rated current In (A)	10
Applicable standards	IEC
Power loss (W)	1,97
Rated Voltage Un DC (V)	550
Time costant L/R (ms)	2
Series name	P103
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	7
Voltage of total clearing I2t test	550
Total clearing I²t @Un AC (A²s)	40

Product available on request Ask for more information

B300 - Fuse 1000V DC aBat DC 2xM12 1250A

Reference 678.183.99.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	1250
Applicable standards	IEC
Power loss (W)	235
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B300
Rated breaking capacity I1 DC (kA)	100
Fixing dimensions	M12
Melting I²t value (A²s)	537500
Minimum breaking current (A)	12500
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un DC (A²s)	1620000

Product available on request Ask for more information

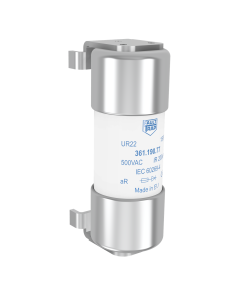

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

Reference 677.334.80.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	32
Rated Voltage Un AC (V)	690
Applicable standards	IEC
Power loss (W)	9
Series name	UR22
Melting I²t value (A²s)	65
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	330
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

20PV22 - Fuse 2000VDC gPV 22x85 inline 30A 6/8 AWG

Reference 665.362.82.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	30
Applicable standards	IEC
Power loss (W)	8.8
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x85
Melting I²t value (A²s)	185
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

C100 - Fuse 690V aR size 1 M8 40A

Reference 667.564.16.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	40
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Power loss (W)	6
Fixing dimensions	M8
Melting I²t value (A²s)	40
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	270
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

ZCTC - Spacer for modular ZPYT fuseholders 2DIN

Reference 668.815.09.0.0 - Manufacturer FAULTRAP

Series name	ZCTC
Distance	2DIN
Weight (gr)	0.31

Price List €0.12/pc

Quantity

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 700A

Reference 669.293.11.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	700
Applicable standards	IEC
Power loss (W)	220
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20BP3
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	76x218
Fixing dimensions	M12
Melting I²t value (A²s)	156000
Minimum breaking current (A)	7000
Fuse Connection/Terminal type	Screw fixing

Product available on request Ask for more information

Special Busbar 9 parallel fuseholders 54mm

Reference 669.359.26.0.0 - Manufacturer FAULTRAP

Number of connections	9
Series name	ZBUS
Fixing connection centres (mm)	54
Number of poles	1

Price List €124.74/pc

Quantity

B050 - Fuse 1000VDC aBat 350A - 118,85mm - Silver Plated

Reference 672.889.04.0.0 - Manufacturer FAULTRAP

Class	aBat, aR
Rated current In (A)	350
Applicable standards	IEC, UL
Power loss (W)	48
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B050
Rated breaking capacity I1 DC (kA)	100
Fuse Dimension (mm)	50x141
Melting I²t value (A²s)	33600
Minimum breaking current (A)	3500
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	118
Total clearing I²t @Un DC (A²s)	88000

Product available on request Ask for more information

V108 - Fuse 10x85 1500VDC gPV In-line 16A

Reference 674.643.15.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	16
Applicable standards	IEC, UL
Power loss (W)	3,8
Rated Voltage Un DC (V)	1500
Series name	V108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	43,8
Fuse Connection/Terminal type	Cylindrical In-line
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	316

Product available on request Ask for more information

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 900A

Reference 675.648.12.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	900
Applicable standards	IEC
Power loss (W)	257
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20BP3
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	76x218
Fixing dimensions	M12
Melting I²t value (A²s)	326000
Minimum breaking current (A)	9000
Fuse Connection/Terminal type	Screw fixing

Product available on request Ask for more information

G108 - Fuse 1000V AC gG 10x85mm 3A

Reference 677.846.19.0.0 - Manufacturer FAULTRAP

Class	gG
Rated current In (A)	3
Rated Voltage Un AC (V)	1000
Applicable standards	IEC
Power loss (W)	1,1
Series name	G108
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	20
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1000
Total clearing I²t @Un AC (A²s)	360
Rated breaking capacity I1 AC (kA)	30000

Price List €1.97/pc

Quantity

lock Datasheet

G103 - Fuse 500V 10x38 gG 15A

Reference 670.538.30.0.0 - Manufacturer FAULTRAP

Class	gG
Rated current In (A)	15
Rated Voltage Un AC (V)	500
Applicable standards	IEC
Power loss (W)	1,3
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	14,5
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	500
Total clearing I²t @Un AC (A²s)	141
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

E103 - Fuse 10x38 500VDC aBAT 50A

Reference 638.553.07.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	50
Applicable standards	IEC
Power loss (W)	6,4
Rated Voltage Un DC (V)	500
Series name	E103
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x38
Fuse Connection/Terminal type	Cylindrical

Price List €3.74/pc

Quantity

lock Datasheet

20PV22 - Fuse 2000VDC gPV 22x85 inline 12A 6/8 AWG

Reference 637.379.22.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	12
Applicable standards	IEC
Power loss (W)	4
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x85
Melting I²t value (A²s)	23
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

UR22 - Fuse 690V AC 22x58 fixing on pcb 32A

Reference 637.218.29.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	32
Rated Voltage Un AC (V)	690
Applicable standards	IEC
Power loss (W)	9
Series name	UR22
Melting I²t value (A²s)	65
Fuse Connection/Terminal type	PCB Mount Terminals
Total clearing I²t @Un AC (A²s)	330
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

SP22 - Fuse 480V 22x58 25kA 10/350us with striker for SPD

Reference 635.429.15.0.0 - Manufacturer FAULTRAP

Rated Voltage Un AC (V)	480
Applicable standards	IEC
Series name	SP22
Fuse Dimension (mm)	22x58
Melting I²t value (A²s)	1970000
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	528
Total clearing I²t @Un AC (A²s)	430000
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 125A

Reference 642.654.54.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	125
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	27.5
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	2100
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	7700
Rated breaking capacity I1 AC (kA)	200000

Product available on request Ask for more information

L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 12A

Reference 631.813.48.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	12
Applicable standards	IEC
Power loss (W)	3,2
Rated Voltage Un DC (V)	1500
Series name	L108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	16,3
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	177

Product available on request Ask for more information

14613 products

01
• • •
103
•
104
•
105
• • •
406

Home

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
