20PV22 - Fuse 2000VDC gPV 22x85 inline 15A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 15A 6/8 AWG

Reference 689.656.50.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC
Power loss (W) 4.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 38
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

Reference 691.187.44.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Series name ZVJM
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Rated Power Acceptance 4
Number of poles 4
Weight (gr) 248
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 30A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 30A 6/8 AWG

Reference 665.362.82.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 8.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 185
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 40A

C100 - Fuse 690V aR size 1 M8 40A

Reference 667.564.16.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 6
Fixing dimensions M8
Melting I²t value (A²s) 40
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 270
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 700A

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 700A

Reference 669.293.11.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC
Power loss (W) 220
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20BP3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x218
Fixing dimensions M12
Melting I²t value (A²s) 156000
Minimum breaking current (A) 7000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
Special Busbar 9 parallel fuseholders 54mm

Special Busbar 9 parallel fuseholders 54mm

Reference 669.359.26.0.0 - Manufacturer FAULTRAP
Number of connections 9
Series name ZBUS
Fixing connection centres (mm) 54
Number of poles 1
Price List €124.74/pc
Quantity
G103 - Fuse 500V 10x38 gG 15A

G103 - Fuse 500V 10x38 gG 15A

Reference 670.538.30.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 15
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 1,3
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 14,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 141
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 350A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 350A - 118,85mm - Silver Plated

Reference 672.889.04.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 350
Applicable standards IEC, UL
Power loss (W) 48
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 33600
Minimum breaking current (A) 3500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 88000
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV In-line 16A

V108 - Fuse 10x85 1500VDC gPV In-line 16A

Reference 674.643.15.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 16
Applicable standards IEC, UL
Power loss (W) 3,8
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 43,8
Fuse Connection/Terminal type Cylindrical In-line
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 316
Product available on request Ask for more information
20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 900A

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 900A

Reference 675.648.12.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Applicable standards IEC
Power loss (W) 257
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20BP3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x218
Fixing dimensions M12
Melting I²t value (A²s) 326000
Minimum breaking current (A) 9000
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information

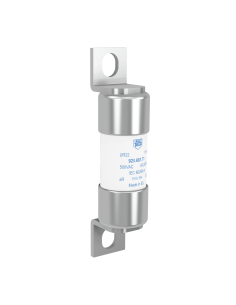

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

Reference 677.334.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 9
Series name UR22
Melting I²t value (A²s) 65
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 330
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 3A

G108 - Fuse 1000V AC gG 10x85mm 3A

Reference 677.846.19.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 3
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 1,1
Series name G108
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 360
Rated breaking capacity I1 AC (kA) 30000
Price List €1.97/pc
Quantity
lock Datasheet
B300 - Fuse 1000V DC aBat DC 2xM12 1250A

B300 - Fuse 1000V DC aBat DC 2xM12 1250A

Reference 678.183.99.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Applicable standards IEC
Power loss (W) 235
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fixing dimensions M12
Melting I²t value (A²s) 537500
Minimum breaking current (A) 12500
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 1620000
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 10 AMP

P103 - Fuse 550V DC EV with pins 10 AMP

Reference 679.360.73.0.0 - Manufacturer FAULTRAP
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 1,97
Rated Voltage Un DC (V) 550
Time costant L/R (ms) 2
Series name P103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 7
Voltage of total clearing I2t test 550
Total clearing I²t @Un AC (A²s) 40
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 132,7mm - Silver Plated

Reference 679.983.97.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 108000
Minimum breaking current (A) 6300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 324000
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 10A

V108 - Fuse 10x85 1500VDC gPV UL 10A

Reference 685.060.16.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Applicable standards IEC, UL
Power loss (W) 2,99
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 12,7
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 102
Weight (gr) 12
Price List €10.81/pc
Quantity
lock Datasheet
RL12 - Fuse 25x60mm 125VDC 25A

RL12 - Fuse 25x60mm 125VDC 25A

Reference 685.348.33.0.0 - Manufacturer FAULTRAP
Rated current In (A) 25
Power loss (W) 3,5
Rated Voltage Un DC (V) 125
Time costant L/R (ms) 3
Series name RL12
Rated breaking capacity I1 DC (kA) 10000
Melting I²t value (A²s) 35
Total clearing I²t @Un AC (A²s) 240
Price List €3.62/pc
Quantity
