V108 - Fuse 10x85 1500VDC gPV UL 15A

V108 - Fuse 10x85 1500VDC gPV UL 15A

Reference 803.035.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC, UL
Power loss (W) 3,71
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 37,32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 314
Weight (gr) 12
Price List €1.83/pc
Quantity
lock Datasheet
AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

Reference 803.049.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 5.3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 2000
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

Reference 804.062.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 3,5
Series name UR22
Melting I²t value (A²s) 8,5
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 37
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 20A

24E1 - Fuse BS 17,2x42 aR 240V 20A

Reference 805.424.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 29
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 116
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 100A

AR22 - EV Charger Fuse 1000VDC 100A

Reference 807.873.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 17.7
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 6650
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 34700
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 32A

20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 32A

Reference 809.596.46.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 9,7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 225
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1500A

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

Reference 810.052.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Applicable standards IEC
Power loss (W) 285
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 858600
Minimum breaking current (A) 15000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 2576000
Product available on request Ask for more information

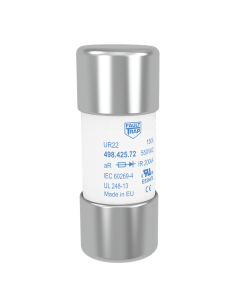

UR22 - Fuse 690V AC 22x58 cylindrical 100A

UR22 - Fuse 690V AC 22x58 cylindrical 100A

Reference 810.153.18.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 550
Applicable standards IEC, UL
Power loss (W) 19,1
Series name UR22
Melting I²t value (A²s) 2150
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 9345
Rated breaking capacity I1 AC (kA) 200
Price List €17.82/pc
Quantity
lock Datasheet
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

Reference 810.190.09.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 25.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 5400
Minimum breaking current (A) 1280
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 12000
Price List €82.15/pc
Quantity
lock Datasheet
BPF3 - Fuse 1500VDC aBat M12 1100A

BPF3 - Fuse 1500VDC aBat M12 1100A

Reference 811.782.46.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Applicable standards IEC
Power loss (W) 245
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF3
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 76x140
Fixing dimensions M12
Melting I²t value (A²s) 790000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 4505000
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

Reference 812.048.37.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Applicable standards UL
Power loss (W) 14,9
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 2,5
Series name EV65.1500
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 3000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 14900
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

Reference 812.427.91.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 315
Applicable standards IEC
Power loss (W) 59,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF1
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 50x168
Melting I²t value (A²s) 37250
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 130400
Product available on request Ask for more information
