G276 - Fuse 500V AC gG /550V gR 27x60 PCB 160A

Reference 858.953.83.0.0 - Manufacturer FAULTRAP

Class	gG, gR
Rated current In (A)	160
Rated Voltage Un AC (V)	500, 550
Applicable standards	IEC, UL
Power loss (W)	12
Series name	G276
Fuse Dimension (mm)	27x60
Melting I²t value (A²s)	74650
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	500
Total clearing I²t @Un AC (A²s)	265000
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 50A

Reference 859.192.76.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	50
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	9
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	330
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	1200
Rated breaking capacity I1 AC (kA)	200000

Product available on request Ask for more information

G103 - Fuse 500V 10x38 gG 40A

Reference 860.346.75.0.0 - Manufacturer FAULTRAP

Class	gG
Rated current In (A)	40
Rated Voltage Un AC (V)	500
Applicable standards	IEC
Power loss (W)	3
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	100
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	500
Total clearing I²t @Un AC (A²s)	638
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

20PV27 - Fuse 2000VDC gPV 27x85mm 70A

Reference 861.527.78.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	70
Applicable standards	IEC
Power loss (W)	20.2
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV27
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	27x85
Melting I²t value (A²s)	1400
Fuse Connection/Terminal type	Cylindrical

Product available on request Ask for more information

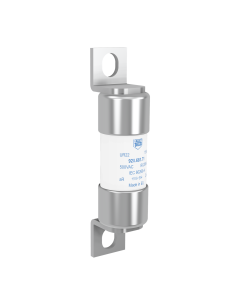

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

Reference 861.706.36.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	135
Rated Voltage Un AC (V)	500
Applicable standards	IEC
Power loss (W)	28,6
Series name	UR22
Melting I²t value (A²s)	3640
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	17800
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

BP22 -Fuse 22x65mm cylindrical 16A

Reference 862.304.66.0.0 - Manufacturer FAULTRAP

Class	gBat, gR
Rated current In (A)	16
Applicable standards	IEC, UL
Power loss (W)	3,6
Rated Voltage Un DC (V)	1000
Series name	BP22
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	22x65
Fuse Connection/Terminal type	Cylindrical
Total clearing I²t @Un AC (A²s)	30

Product available on request Ask for more information

L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 30A

Reference 862.663.70.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	30
Applicable standards	IEC
Power loss (W)	7
Rated Voltage Un DC (V)	1500
Series name	L226
Rated breaking capacity I1 DC (kA)	10000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	450
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	2000

Product available on request Ask for more information

10TD - Fuse 10x38 500VAC aM/aR 16A

Reference 863.903.84.0.0 - Manufacturer FAULTRAP

Class	aM, aR
Rated current In (A)	16
Rated Voltage Un AC (V)	500
Applicable standards	IEC, UL
Series name	10TD
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	560
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	500
Total clearing I²t @Un AC (A²s)	2060
Rated breaking capacity I1 AC (kA)	50000

Product available on request Ask for more information

20PV14 - Fuse 2000VDC gPV 14x85 inline 15A

Reference 864.160.53 .0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	15
Applicable standards	IEC
Power loss (W)	4.8
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV14
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	14x85
Melting I²t value (A²s)	38
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 315A

Reference 864.831.51.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	315
Applicable standards	IEC
Power loss (W)	79
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV3
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	76x269
Melting I²t value (A²s)	50200
Minimum breaking current (A)	630
Fuse Connection/Terminal type	Screw fixing

Product available on request Ask for more information

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Tin Plated

Reference 865.632.53.0.0 - Manufacturer FAULTRAP

Class	aBat, aR
Rated current In (A)	600
Applicable standards	IEC, UL
Power loss (W)	79
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B050
Rated breaking capacity I1 DC (kA)	100
Fuse Dimension (mm)	50x129
Melting I²t value (A²s)	134000
Minimum breaking current (A)	6000
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	97
Total clearing I²t @Un DC (A²s)	350000

Price List €146.42/pc

Quantity

lock Datasheet

V108 - Fuse 10x85 1500VDC gPV In-line 6A

Reference 865.834.50.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	6
Applicable standards	IEC, UL
Power loss (W)	2,5
Rated Voltage Un DC (V)	1500
Series name	V108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	9,33
Fuse Connection/Terminal type	Cylindrical In-line
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	38

Product available on request Ask for more information

B100 - Fuse 1000VDC aBat 630A - 152,7mm - Tin Plated

Reference 867.290.88.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	630
Applicable standards	IEC, UL
Power loss (W)	120
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B100
Rated breaking capacity I1 DC (kA)	100000
Fuse Dimension (mm)	63,5x203,2
Melting I²t value (A²s)	108000
Minimum breaking current (A)	6300
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	1000
Total clearing I²t @Un AC (A²s)	324000

Product available on request Ask for more information

AR22 - EV Charger Fuse 1000VDC 32A

Reference 868.215.71.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	32
Applicable standards	IEC
Power loss (W)	5.3
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	1-3
Series name	AR22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	250
Fuse Connection/Terminal type	Cylindrical
Total clearing I²t @Un DC (A²s)	2000
Weight (gr)	60

Product available on request Ask for more information

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 180A

Reference 868.707.36.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	180
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	42.5
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	4120
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	15100
Rated breaking capacity I1 AC (kA)	200000

Product available on request Ask for more information

E103 - Fuse 10x38 1000VDC aBAT 10A

Reference 869.033.78.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	10
Applicable standards	IEC
Power loss (W)	2,5
Rated Voltage Un DC (V)	1000
Series name	E103
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x38
Fuse Connection/Terminal type	Cylindrical

Product available on request Ask for more information

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 63A

Reference 869.557.46.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	63
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC
Power loss (W)	9.5
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2A
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	520
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	1900
Rated breaking capacity I1 AC (kA)	200000

Price List €10.23/pc

Quantity

lock Datasheet

C100 - Fuse 690V aR size 1 M8 63A

Reference 872.796.60.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	63
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Power loss (W)	10
Fixing dimensions	M8
Melting I²t value (A²s)	115
Fuse Connection/Terminal type	Screw fixing
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	760
Rated breaking capacity I1 AC (kA)	100000

Product available on request Ask for more information

AB22 - Fuse 22x65 1000VDC aBat 40A

Reference 873.361.63.0.0 - Manufacturer FAULTRAP

Class	aBat
Rated current In (A)	40
Applicable standards	IEC
Power loss (W)	8.5
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	1-3
Series name	AB22
Rated breaking capacity I1 DC (kA)	10
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	415
Minimum breaking current (A)	320
Fuse Connection/Terminal type	Cylindrical
Total clearing I²t @Un DC (A²s)	2300

Product available on request Ask for more information

B050 - Fuse 1000VDC aBat 250A - 118,85mm - Silver Plated

Reference 874.107.39.0.0 - Manufacturer FAULTRAP

Class	aBat, aR
Rated current In (A)	250
Applicable standards	IEC, UL
Power loss (W)	36
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B050
Rated breaking capacity I1 DC (kA)	100
Fuse Dimension (mm)	50x141
Melting I²t value (A²s)	15000
Minimum breaking current (A)	2500
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	118
Total clearing I²t @Un DC (A²s)	40000

Product available on request Ask for more information

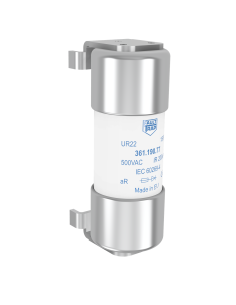

UR22 - Fuse 690V AC 22x58 fixing on pcb 50A

Reference 874.869.63.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	50
Rated Voltage Un AC (V)	690
Applicable standards	IEC
Power loss (W)	13,3
Series name	UR22
Melting I²t value (A²s)	195
Fuse Connection/Terminal type	PCB Mount Terminals
Total clearing I²t @Un AC (A²s)	955
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

V108 - Fuse 10x85 1500VDC gPV UL 1A

Reference 875.562.82.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	1
Applicable standards	IEC, UL
Power loss (W)	1,72
Rated Voltage Un DC (V)	1500
Series name	V108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	3,18
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	4,5
Weight (gr)	12

Price List €1.93/pc

Quantity

lock Datasheet

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Silver Plated

Reference 876.179.40.0.0 - Manufacturer FAULTRAP

Class	aBat, aR
Rated current In (A)	160
Applicable standards	IEC, UL
Power loss (W)	25.5
Rated Voltage Un DC (V)	1000
Time costant L/R (ms)	2
Series name	B025
Rated breaking capacity I1 DC (kA)	100
Fuse Dimension (mm)	38x129
Melting I²t value (A²s)	5400
Minimum breaking current (A)	1280
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	100
Total clearing I²t @Un AC (A²s)	12000

Product available on request Ask for more information

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 400A

Reference 877.289.08.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	400
Applicable standards	IEC
Power loss (W)	84.5
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV3
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	76x269
Melting I²t value (A²s)	119860
Minimum breaking current (A)	800
Fuse Connection/Terminal type	Screw fixing

Product available on request Ask for more information

24E1 - Fuse BS 17,2x42 aR 240V 6A

Reference 877.567.82.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	6
Rated Voltage Un AC (V)	240
Applicable standards	IEC
Power loss (W)	1,9
Rated Voltage Un DC (V)	150
Series name	24E1
Rated breaking capacity I1 DC (kA)	20
Fuse Dimension (mm)	17x56
Melting I²t value (A²s)	2
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	9
Rated breaking capacity I1 AC (kA)	100
Weight (gr)	29,5

Product available on request Ask for more information

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 70A

Reference 880.064.47.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	70
Applicable standards	IEC
Power loss (W)	20.2
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV27
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	27x85
Melting I²t value (A²s)	1400
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

C200 - Fuse 690VAC aR M10 700A

Reference 881.120.73.0.0 - Manufacturer FAULTRAP

Rated current In (A)	700
Power loss (W)	92
Fuse Dimension (mm)	61x50
Melting I²t value (A²s)	74000
Total clearing I²t @Un AC (A²s)	510600

Product available on request Ask for more information

L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 25A

Reference 881.152.11.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	25
Applicable standards	IEC
Power loss (W)	6
Rated Voltage Un DC (V)	1500
Series name	L226
Rated breaking capacity I1 DC (kA)	10000
Fuse Dimension (mm)	22x65
Melting I²t value (A²s)	275
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	1500

Product available on request Ask for more information

UR22 - Fuse 500V AC 22x58 fixing 80mm 125A

Reference 881.999.47.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	125
Rated Voltage Un AC (V)	500
Applicable standards	IEC
Power loss (W)	26
Series name	UR22
Melting I²t value (A²s)	3100
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	15000
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

C200 - Fuse 690VAC aR 630A size 2 61x52,4mm M10 flush end terminals, with microswitch adapter

Reference 880.498.35.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	630
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Power loss (W)	84
Series name	C200
Fixing dimensions	M10
Melting I²t value (A²s)	55500
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	383000
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

20PV22 - Fuse 2000VDC gPV 22x85 35A

Reference 852.242.24.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	35
Applicable standards	IEC
Power loss (W)	10.7
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x85
Melting I²t value (A²s)	265
Fuse Connection/Terminal type	Cylindrical

Product available on request Ask for more information

20PV22 - Fuse 2000VDC gPV 32A 22x85 in-line copper 6/8 AWG

Reference 869.193.43.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	32
Applicable standards	IEC
Power loss (W)	9,7
Rated Voltage Un DC (V)	2000
Time costant L/R (ms)	1-3
Series name	20PV22
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	22x85
Melting I²t value (A²s)	225
Fuse Connection/Terminal type	In-line for copper cable

Product available on request Ask for more information

FL80 - Battery fuse closed 60mm 80V 150A

Reference 864.802.65.0.0 - Manufacturer FAULTRAP

Rated current In (A)	150
Rated Voltage Un DC (V)	80
Series name	FL80
Fuse Connection/Terminal type	Forklift fuse
Fixing connection centres (mm)	60

Product available on request Ask for more information

FL80 - Battery fuse closed 60mm 80V 350A

Reference 865.291.31.0.0 - Manufacturer FAULTRAP

Rated current In (A)	350
Rated Voltage Un DC (V)	80
Series name	FL80
Fuse Connection/Terminal type	Forklift fuse
Fixing connection centres (mm)	60

Product available on request Ask for more information

FL80 - Battery fuse closed 60mm 80V 60A

Reference 875.018.22.0.0 - Manufacturer FAULTRAP

Rated current In (A)	60
Rated Voltage Un DC (V)	80
Series name	FL80
Fuse Connection/Terminal type	Forklift fuse
Fixing connection centres (mm)	60

Product available on request Ask for more information

EV38 - Fuse EV 950V DC 10x38mm 40A

Reference 862.809.13.0.0 - Manufacturer FAULTRAP

Rated current In (A)	40
Applicable standards	IEC
Rated Voltage Un DC (V)	950
Series name	EV38
Rated breaking capacity I1 DC (kA)	20
Fuse Dimension (mm)	10x38
Fuse Connection/Terminal type	Screw fixing

Product available on request Ask for more information

14605 products

01
• • •
79
•
80
•
81
• • •
406

All Products

INFORMATIONS

ACCOUNT

CONTACT US

NEWSLETTER
