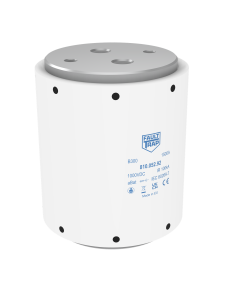

B300 - Fuse 1000V DC aBat DC 2xM12 1250A

B300 - Fuse 1000V DC aBat DC 2xM12 1250A

Reference 678.183.99.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Applicable standards IEC
Power loss (W) 235
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fixing dimensions M12
Melting I²t value (A²s) 537500
Minimum breaking current (A) 12500
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 1620000
Product available on request Ask for more information
ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P with ind

Reference 691.187.44.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Series name ZVJM
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Rated Power Acceptance 4
Number of poles 4
Weight (gr) 248
Product available on request Ask for more information
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 350A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 350A

Reference 693.162.36.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 350
Applicable standards IEC
Power loss (W) 81
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 73750
Minimum breaking current (A) 700
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1000A

B300 - Fuse 1000V DC aBat DC 2xM12 1000A

Reference 695.363.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Applicable standards IEC
Power loss (W) 200
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 267000
Minimum breaking current (A) 10000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 801000
Product available on request Ask for more information

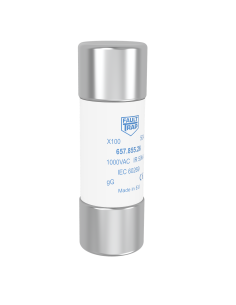

X100 - Fuse 22x65mm 1000VAC gG 8A

X100 - Fuse 22x65mm 1000VAC gG 8A

Reference 699.108.71.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 8
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 1,9
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 241
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 8500
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 25A

DC22 - Fuse 1000VDC aBat 22x65mm 25A

Reference 701.823.85.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 4,9
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 95
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 430
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

Reference 706.803.00.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 6,9
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 155
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 700
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 32A

20PV22 - Fuse 2000VDC gPV 22x85 32A

Reference 684.844.13.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 9,7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 225
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 70A

20PV27 - Fuse 2000VDC gPV 27x85mm inline aluminum 4AWG 70A

Reference 607.107.17.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type In-line for aluminum cable
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 80A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 80A

Reference 607.699.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Applicable standards IEC
Power loss (W) 16,3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1350
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 5950
Product available on request Ask for more information
C300 - Fuse 660VAC aR M12 1250A

C300 - Fuse 660VAC aR M12 1250A

Reference 613.574.19.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1250
Rated Voltage Un AC (V) 690
Dimension SQB3
Applicable standards IEC
Power loss (W) 153
Series name C300
Fuse Dimension (mm) 76x50
Fixing dimensions M12
Melting I²t value (A²s) 275000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 1650000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information

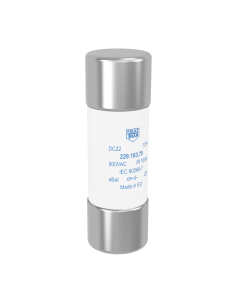

DC22 - Fuse 1000VDC aBat 22x65mm 32A

DC22 - Fuse 1000VDC aBat 22x65mm 32A

Reference 615.757.72.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 6,9
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 155
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 700
Product available on request Ask for more information
