All Products

X800 - Fuse 22x65mm 800VAC gG 40A

X800 - Fuse 22x65mm 800VAC gG 40A

Reference 354.281.83.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 40
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 4
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1460
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 9800
Rated breaking capacity I1 AC (kA) 80000
Price List €37.81/pc
Quantity
lock Datasheet

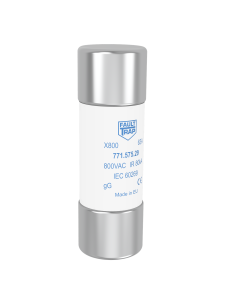

X800 - Fuse 22x65mm 800VAC gG 4A

X800 - Fuse 22x65mm 800VAC gG 4A

Reference 413.870.21.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 1,3
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 31
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 560
Rated breaking capacity I1 AC (kA) 80000
Price List €16.99/pc
Quantity
lock Datasheet

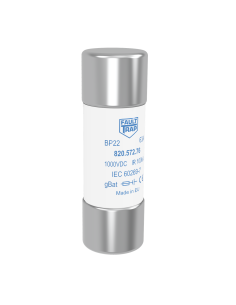

BP22 -Fuse 22x65mm cylindrical 20A

BP22 -Fuse 22x65mm cylindrical 20A

Reference 424.889.96.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 20
Applicable standards IEC, UL
Power loss (W) 4,3
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 53
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 63A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 63A

Reference 438.828.81.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Applicable standards IEC, UL
Power loss (W) 6
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 740
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 1150
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 80A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 80A

Reference 449.701.36.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Applicable standards IEC, UL
Power loss (W) 7,5
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 2000
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 25A

BP22 -Fuse 22x65mm cylindrical 25A

Reference 512.666.59.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 25
Applicable standards IEC, UL
Power loss (W) 5,2
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 90
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 32A

X800 - Fuse 22x65mm 800VAC gG 32A

Reference 525.272.76.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 32
Rated Voltage Un AC (V) 800
Applicable standards IEC
Power loss (W) 3,9
Series name X800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 650
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 800
Total clearing I²t @Un AC (A²s) 4950
Rated breaking capacity I1 AC (kA) 80000
Price List €37.13/pc
Quantity
lock Datasheet
T500 - Fuse 500VDC aBat d:38mm axial 80mm 400A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 400A

Reference 537.194.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Applicable standards IEC, UL
Power loss (W) 50
Rated Voltage Un DC (V) 500
Time costant L/R (ms) 2
Series name T500
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 38x80
Melting I²t value (A²s) 45750
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 68000
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 75A

PV22 - Fuse 22x65mm 1500VDC gPV UL 75A

Reference 554.542.31.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 75
Applicable standards UL
Power loss (W) 13.5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2480
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 12500
Price List €21.98/pc
Quantity
lock Datasheet
PV22 - Fuse 22x65mm 1500VDC gPV UL 25A

PV22 - Fuse 22x65mm 1500VDC gPV UL 25A

Reference 568.895.42.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Applicable standards UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 130
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1400
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

Reference 593.887.15.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Applicable standards UL
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name PV22
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1220
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 7500
Price List €200.20/pc
Quantity
lock Datasheet
BP22 -Fuse 22x65mm cylindrical 10A

BP22 -Fuse 22x65mm cylindrical 10A

Reference 655.286.94.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 10
Applicable standards IEC, UL
Power loss (W) 2,4
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 10
Product available on request Ask for more information
