Fuse 5x20 T 250V glass 10A 7000135.10

Fuse 5x20 T 250V glass 10A 7000135.10

Reference 179120.10.0 - Manufacturer SIBA
Class T
Rated current In (A) 10
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 2,4
Voltage drop (mV) 70
Resistance (ohm) 0,0052
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 380
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 12,5A 7000135.12,5

Fuse 5x20 T 250V glass 12,5A 7000135.12,5

Reference 179120.12,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 12,5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 3
Voltage drop (mV) 70
Resistance (ohm) 0,0041
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 650
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 125
Weight (gr) 2
Price List €0.26/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 16A 7000135.16

Fuse 5x20 T 250V glass 16A 7000135.16

Reference 179120.16.0 - Manufacturer SIBA
Class T
Rated current In (A) 16
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 3,2
Voltage drop (mV) 70
Resistance (ohm) 0,0033
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 160
Weight (gr) 1
Price List €0.35/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 2,5A 7000135.2,5

Fuse 5x20 T 250V glass UL 2,5A 7000135.2,5

Reference 179120.2,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 2,5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 80
Resistance (ohm) 0,023
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 26
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.19/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 2A 7000135.2

Fuse 5x20 T 250V glass UL 2A 7000135.2

Reference 179120.2.0 - Manufacturer SIBA
Class T
Rated current In (A) 2
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,5
Voltage drop (mV) 80
Resistance (ohm) 0,029
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.18/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 20A 7000135.20

Fuse 5x20 T 250V glass 20A 7000135.20

Reference 179120.20.0 - Manufacturer SIBA
Class T
Rated current In (A) 20
Rated Voltage Un AC (V) 250
Power loss (W) 3,5
Voltage drop (mV) 70
Resistance (ohm) 0,0025
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 2200
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 200
Weight (gr) 1
Price List €0.29/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 3,15A 7000135.3,15

Fuse 5x20 T 250V glass UL 3,15A 7000135.3,15

Reference 179120.3,15.0 - Manufacturer SIBA
Class T
Rated current In (A) 3,15
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 80
Resistance (ohm) 0,017
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 44
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.19/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 3,5A 7000135.3,5

Fuse 5x20 T 250V glass 3,5A 7000135.3,5

Reference 179120.3,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 3,5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,8
Voltage drop (mV) 80
Resistance (ohm) 0,017
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 50
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.97/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 4A 7000135.4

Fuse 5x20 T 250V glass UL 4A 7000135.4

Reference 179120.4.0 - Manufacturer SIBA
Class T
Rated current In (A) 4
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,8
Voltage drop (mV) 80
Resistance (ohm) 0,013
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 72
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 40
Weight (gr) 1
Price List €0.18/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 5A 7000135.5

Fuse 5x20 T 250V glass UL 5A 7000135.5

Reference 179120.5.0 - Manufacturer SIBA
Class T
Rated current In (A) 5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 1,2
Voltage drop (mV) 80
Resistance (ohm) 0,01
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 130
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 50
Weight (gr) 1
Price List €0.19/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 6,3A 7000135.6,3

Fuse 5x20 T 250V glass UL 6,3A 7000135.6,3

Reference 179120.6,3.0 - Manufacturer SIBA
Class T
Rated current In (A) 6,3
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 1,3
Voltage drop (mV) 70
Resistance (ohm) 0,0075
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 230
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 63
Weight (gr) 1
Price List €0.19/pc
Quantity
lock Datasheet

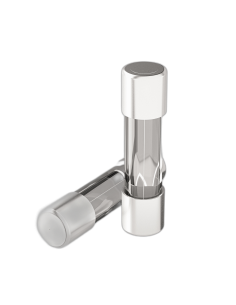

Fuse 5x20 T 250V glass 8A 7000135.8

Fuse 5x20 T 250V glass 8A 7000135.8

Reference 179120.8.0 - Manufacturer SIBA
Class T
Rated current In (A) 8
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 1,8
Voltage drop (mV) 70
Resistance (ohm) 0,006
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 370
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 80
Weight (gr) 1
Price List €0.18/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,04A 7000179.0,04

Fuse 5x20 T 250V glass 0,04A 7000179.0,04

Reference 179150.0,04.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,04
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 2000
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,02
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.36/pc
Quantity
lock Datasheet

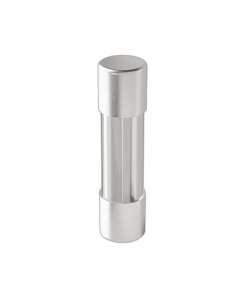

Fuse 5x20 T 250V glass 0,05A 7000179.0,05

Fuse 5x20 T 250V glass 0,05A 7000179.0,05

Reference 179150.0,05.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,05
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 1500
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,039
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.94/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,063A 7000179.0,063

Fuse 5x20 T 250V glass 0,063A 7000179.0,063

Reference 179150.0,063.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,063
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 1000
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,05
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.94/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,1A 7000179.0,1

Fuse 5x20 T 250V glass 0,1A 7000179.0,1

Reference 179150.0,1.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,1
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 700
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €2.58/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,125A 7000179.0,125

Fuse 5x20 T 250V glass 0,125A 7000179.0,125

Reference 179150.0,125.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,125
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 600
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,24
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €1.55/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,16A 7000179.0,16

Fuse 5x20 T 250V glass 0,16A 7000179.0,16

Reference 179150.0,16.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,16
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 600
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,2A 7000179.0,2

Fuse 5x20 T 250V glass 0,2A 7000179.0,2

Reference 179150.0,2.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,2
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 500
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0.7
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,315A 7000179.0,315

Fuse 5x20 T 250V glass 0,315A 7000179.0,315

Reference 179150.0,315.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,315
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 140
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,35
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,4A 7000179.0,4

Fuse 5x20 T 250V glass 0,4A 7000179.0,4

Reference 179150.0,4.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,4
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 130
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,49
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass 0,5A 7000179.0,5

Fuse 5x20 T 250V glass 0,5A 7000179.0,5

Reference 179150.0,5.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 120
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,9
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Weight (gr) 1
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V SEMKO-VDE glass 0,63A 7000179.0,63

Fuse 5x20 T 250V SEMKO-VDE glass 0,63A 7000179.0,63

Reference 179150.0,63.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,63
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 110
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 1,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Price List €1.06/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V SEMKO-VDE glass 0,8A 7000179.0,8

Fuse 5x20 T 250V SEMKO-VDE glass 0,8A 7000179.0,8

Reference 179150.0,8.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,8
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 3,2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 150
Price List €1.06/pc
Quantity
lock Datasheet
Filter by
Manufacturer
Series name
Class
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Rated insultaion voltage AC (V)
Rated insulated voltage DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
